DLB-1200 Network Load Balancer User Manual
DLB-1200 as a router or firewall, etc, please choose "Disable" to shut this function.
3-3、Advance Setup
3-3-a
、
Custom Virtual Servers
If there're some PCs providing particular Internet service, the "Custom Virtual Servers" allow
you make virtual server by virtual IP corresponding the external real IP. We called that "NAT"
(Network Address Translation), for effectively separate internal and external network and
ensure the securities of LAN.

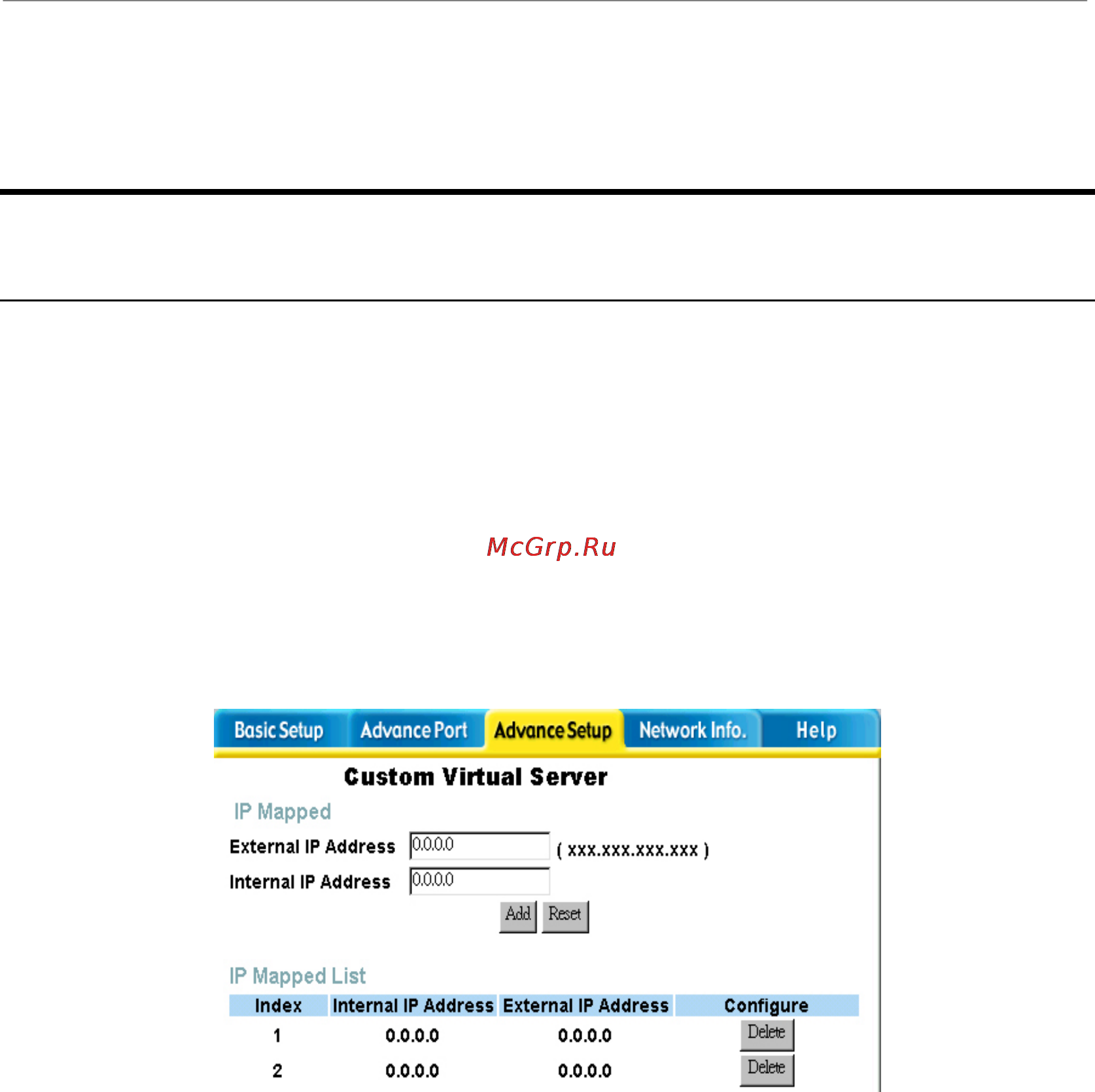

1、IP Mapped
Virtual Server includes mapped IP and Port. IP Mapping can make one internal virtual IP
corresponding one external real IP, then all service request to the external IP will be
transmitted to the virtual IP you set.
External IP Address
Please enter an external real IP Address in this column.
Internal IP Address
Please enter an Internal virtual IP Address corresponding above IP Address in this column.
Button
There're 3 buttons in IP Mapped item and Port Mapped item. The function of these buttons will
be described in following item.
22
