DLB-1200 Network Load Balancer User Manual
NOTE：After you entered above essential data in this page/item, you have to click the "Save"
button on right below of the screen.
3-1-b
、
LAN & DHCP

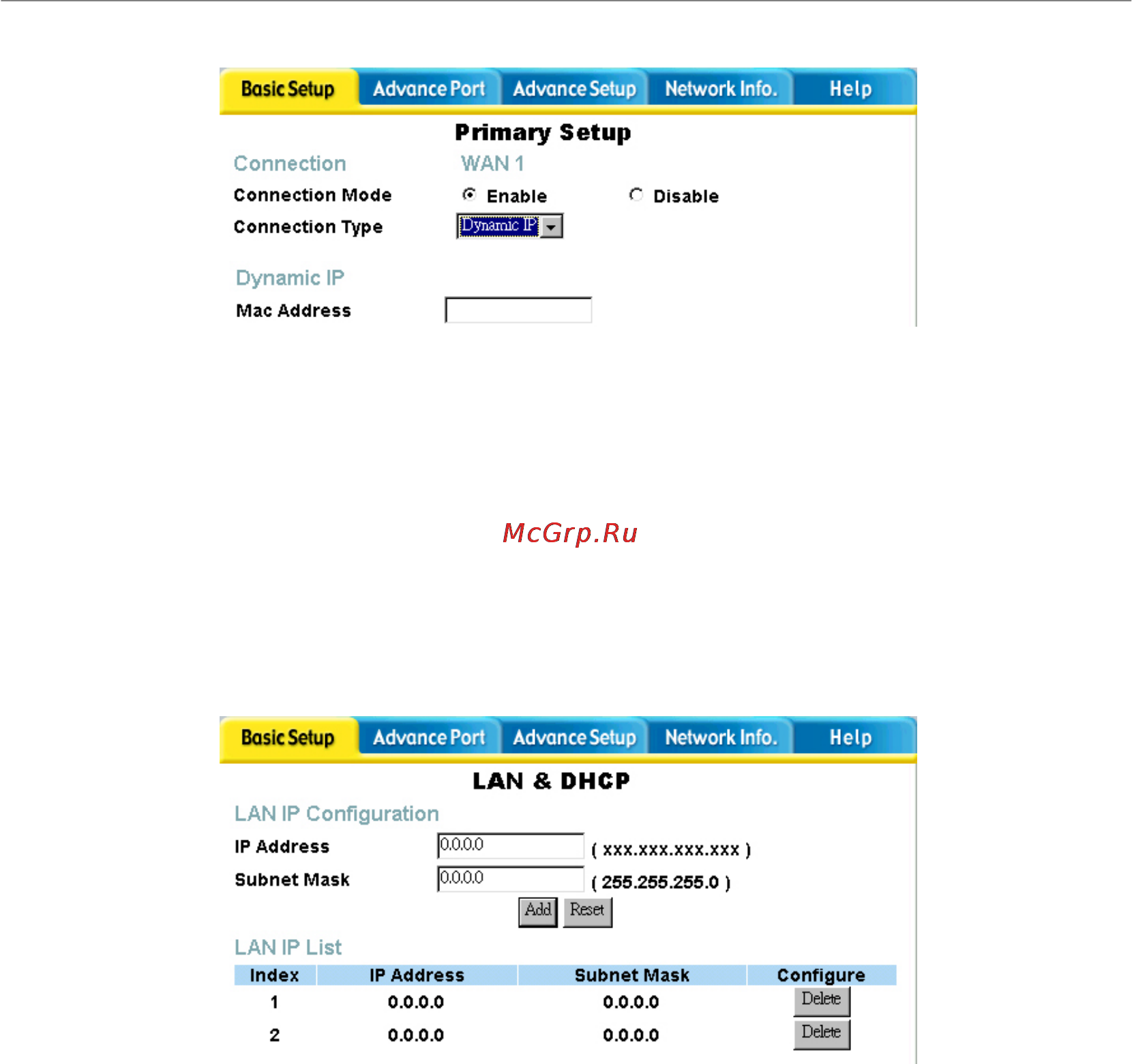

1、LAN IP Configuration
This item can let you set up the different IP Address and Subnet Mask of DLB-1200 in your
internal network/LAN, and makes DLB-1200 a Gateway for other PCs connecting to the
Internet even if other PCs are separately in different LAN segments. Please modify the data by
following steps and click the "Add" button to add a new LAN IP Address in the "LAN IP List".
IP Address
You can enter an unused IP Address within the range used by one segment of your LAN, and
then all PCs of this segment will link to external network through DLB-1200. After setting up
new IP and Subnet Mask, please click "Add" button to add a new IP Address in the "LAN IP
List". After all network configuration including settings in following chapters, you have to reboot
DLB-1200 to activate new LAN IP Address.
Subnet Mask
For example, the value "255.255.255.0" is standard for small (class "C") network. For other
network, use the Subnet Mask for the LAN segment to which the DLB-1200 is attached (the
same value as the PCs on that LAN segment).
17
