DLB-1200 Network Load Balancer User Manual
3
、
N
ETWORK
C
ONFIGURATION
For using further applications of DLB-1200, you have to set up related configurations by
following steps after reboot the PC.
1、Open admin PC's browser. (Ex: Microsoft Internet Explore)
2、Enter "192.168.0.1" in the Address or Location box.
3、Please enter "123456" in the "Password" column.
NOTE：Screen resolution recommend - 800X600.

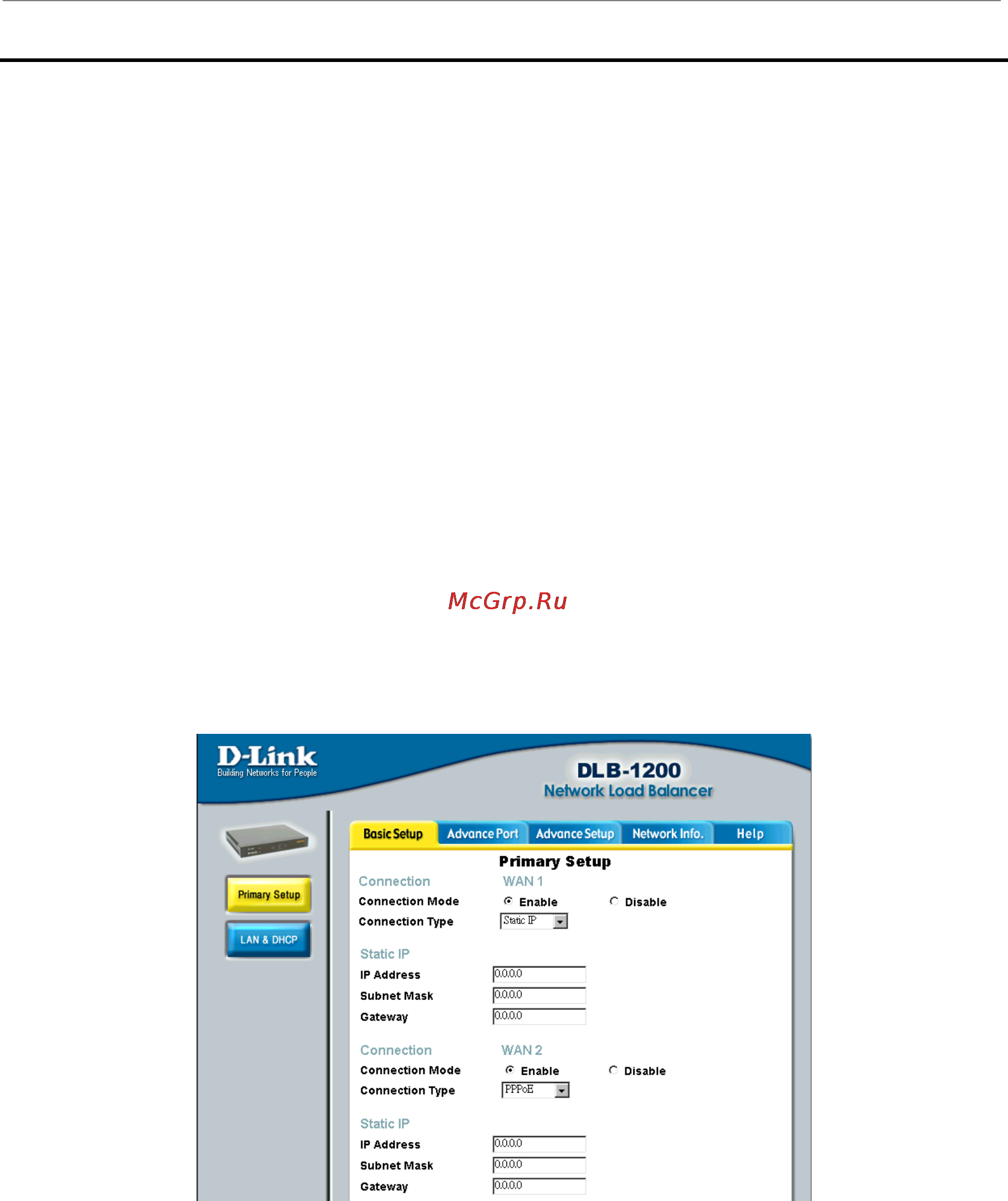

When entering the WEB management interface of DLB-1200, you'll find the following main
items on the screen.
♦ Basic Setup
Includes "Primary Setup" and "LAN & DHCP" configuration.
♦ Advance Port
This item is used for set up the load balancing mode, you can allocate the ratio of load
balancing for two WAN. Besides, you can open the "RIP" to allow DLB-1200 exchanging "In
Packets" data with other routers.
♦ Advance Setup
This item includes "Custom Virtual Server", "SNMP", "Advance Feature", "QoS" and "Firewall".
Custom Virtual Server allows you making Virtual Server to separate internal and external
network. Activated SNMP to let DLB1200 to be a node of you network for other network
management platform to monitor its status. Advanced Feature provides you System setting to
export or import and Software upgrade. QoS and Firewall applications can protect the network
14
