DLB-1200 Network Load Balancer User Manual
DC Power Inlet：
Connect the supplied power adapter here.
Console Port：
If you need to configure the admin password or user name, please connect one PC to this port
and change above items with the terminal linking applications of the PC.
1-4、Specification
♦ CPU：NS Geode GX1-300MHz
♦ System：32MB SD Memory
♦ WAN：2 Realtek RTL8139C 10/100 Ethernet controllers
♦ Ethernet：One Realtek RTL8139C 10/100 Ethernet controller
♦ Power：5V/3A
1-5、Key Features
1-5-a
、
Supports Two XDSL/Leased Line/cable modem (DHCP)

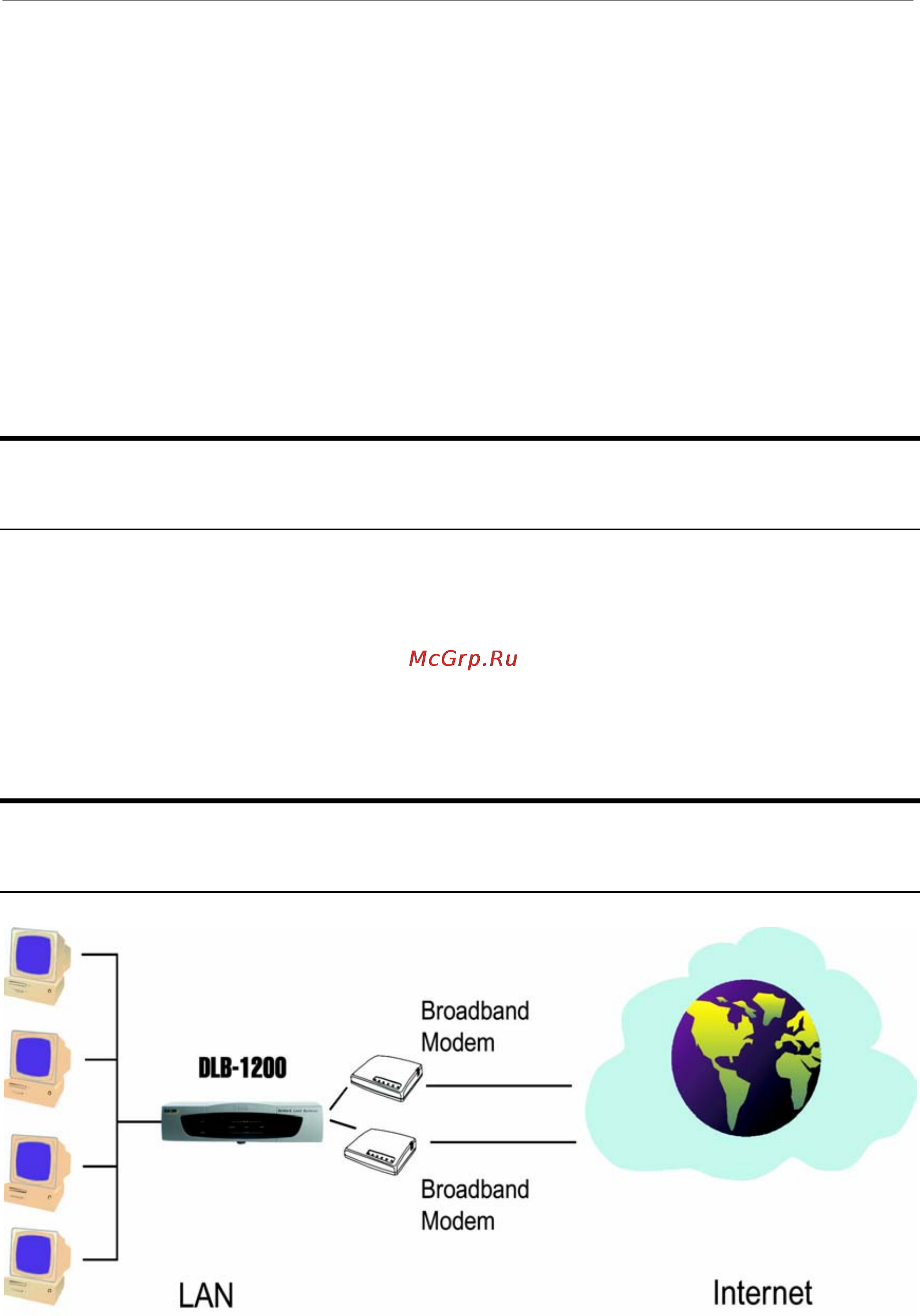

DLB-1200 can integrate two of WAN linked outside and guides to the enterprise's intranet. It
increases overall network efficiency to make two WAN to back up each other with weighted
load balancing.
