DLB-1200 Network Load Balancer User Manual

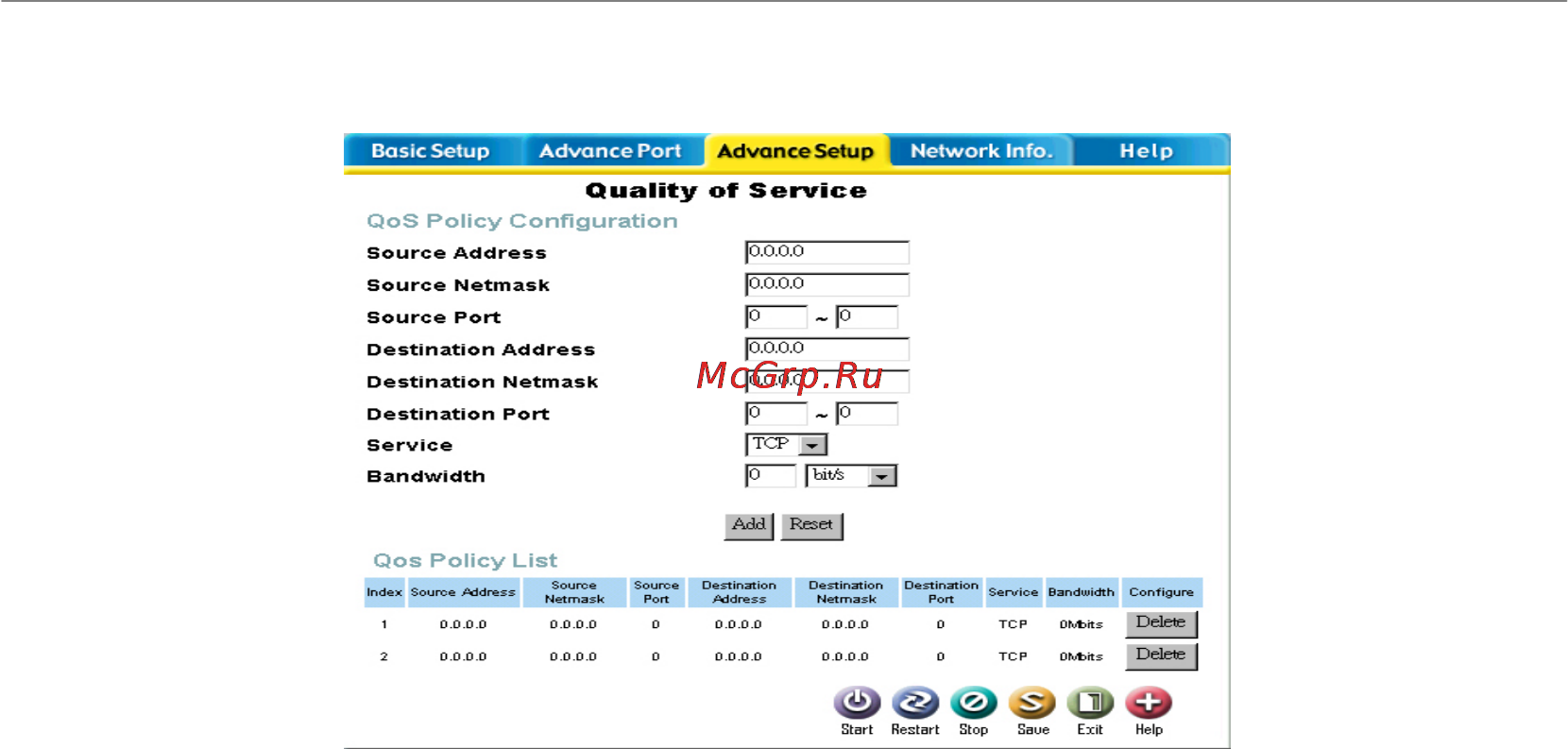

1. QoS Policy Configuration
Please enter Source/Destination IP Address of data-packets, Subnet mask, Port Number, etc
in the following columns to plan your QoS Policy.
Source Address
Please enter the data-packets Source IP Address.
Source Netmask
Please enter the data-packets Source Subnet Mask.
Source Port
Please enter the data-packets Source Port Number.
Destination Address
Please enter the data-packets Destination IP Address.
Destination Netmask
Please enter the data-packets Destination Subnet Mask.
Destination Port
Please enter the data-packets Destination Port Number.
Service
Please choose the data-packet type, either TCP or UDP.
Bandwidth
Please enter the range of bandwidth that will be used by this policy. You can choose Bite, KB
