DLB-1200 Network Load Balancer User Manual
This column shows the version of the Firmware Loader currently installed.
Firmware Version
This column shows the version of the Firmware currently installed.
3-4-b
、

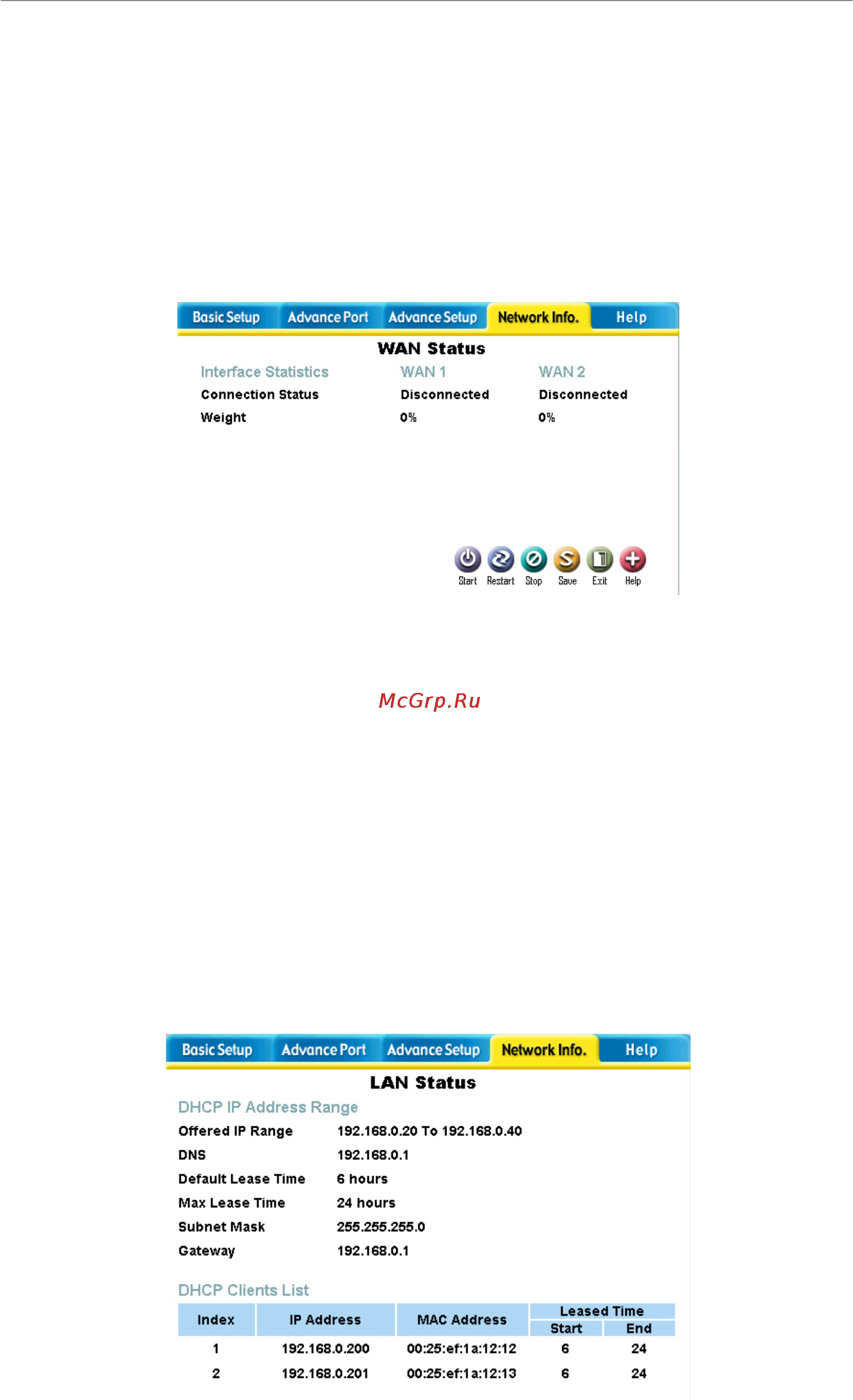

WAN Status
1. Interface Statistics
Connection Status
The column shows each WAN current status - either "Connected" or "Disconnected".
Weight
The column shows the loading rate of each WAN.
3-4-c
、
LAN Status
31
