DLB-1200 Network Load Balancer User Manual
3-4-a
、

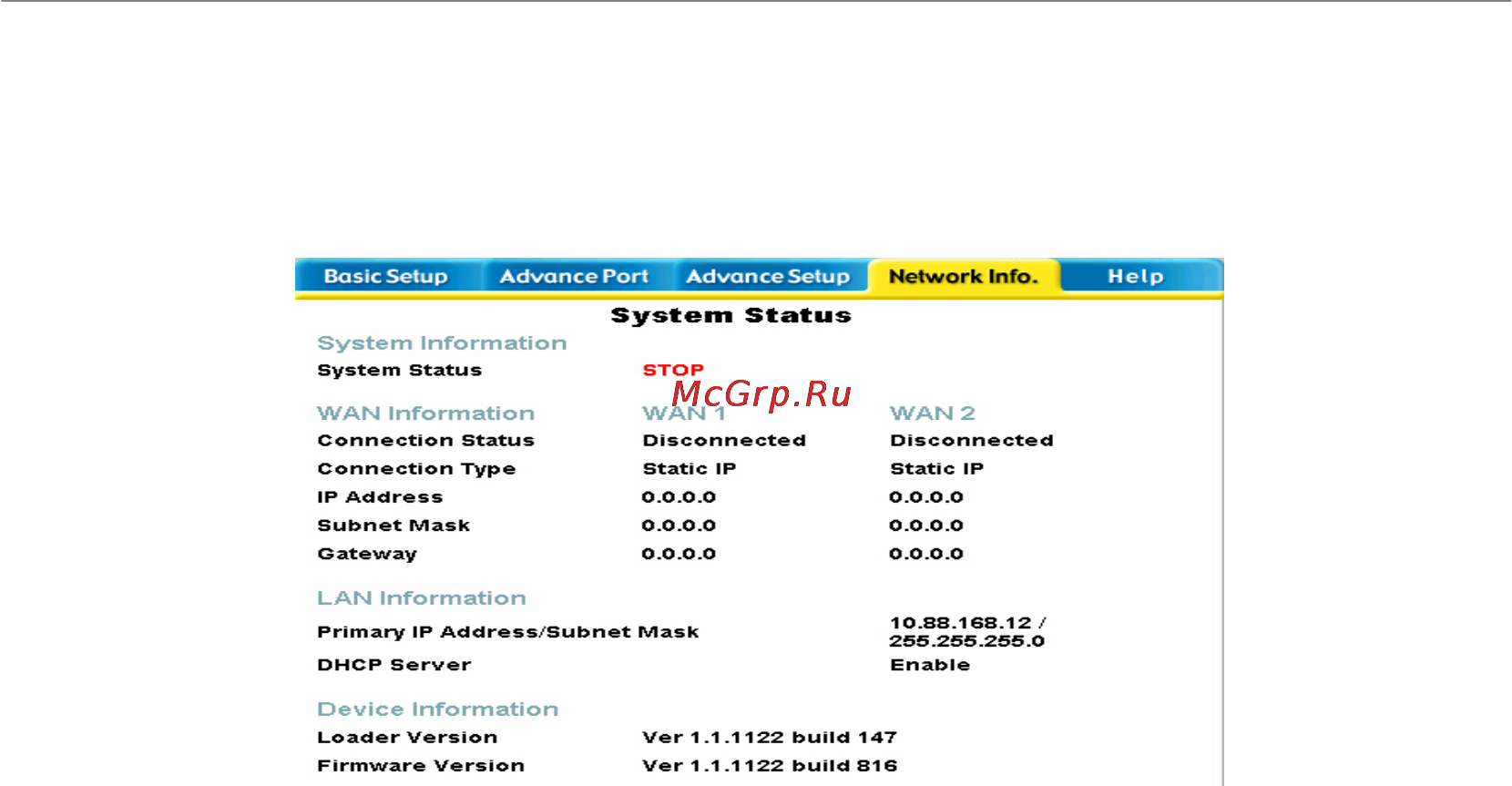

System Status
1. WAN Information
Connection Status
The column shows current status, either "Connected" or "Not connected".
Connection Type
The type of connection used - DHCP, Fixed IP, or PPPoE.
IP Address
It shows the IP address of the DLB-1200, as seen from Internet, which is allocated by the ISP
(Internet Service Provider).
Subnet Mask
It's the Network Mask (Subnet Mask) for the IP Address above in this column.
Gateway
The column shows the Gateway IP Address of DLB-1200.
2. LAN Information
Primary IP Address/ Subnet Mask
It shows the LAN IP Address and Network Mask (Subnet Mask) of the DLB-1200.
DHCP Server
It shows the status of the DHCP Server function - either "Enabled" or "Disabled".
3. Device Information
Loader Version
