DLB-1200 Network Load Balancer User Manual

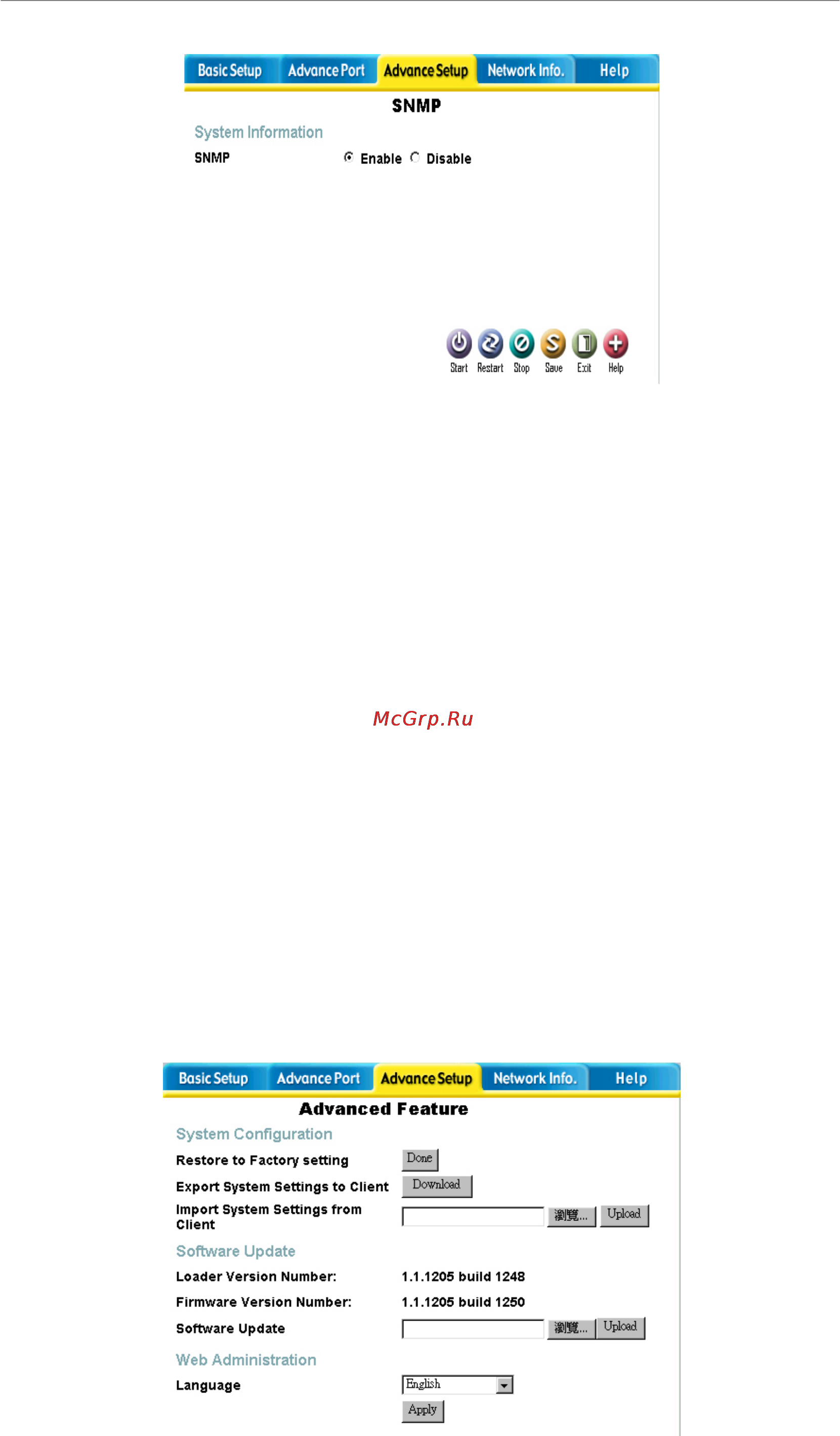

1、System Information
SNMP Enable
Clicking here to activate the SNMP function.
SNMP Disable
Clicking here to disable the SNMP function.
NOTE：After you entered above essential data in this page/item, you have to click the "Save"
button on right below of the screen.
3-3-c
、
Advanced Feature
This item can let you make a backup of DLB-1200 configuration. When any unexpected
hardware problem happened, you don't need to set up the configuration again. Besides, you
can download the latest updating files in this item.
