DLB-1200 Network Load Balancer User Manual
♦ Ethernet Indicator
♦ WAN 1 Indicator
♦ WAN 2 Indicator
The power indicator is keeping bright while DLB-1200 is power on. The indicators order from
left to right be Ethernet, WAN 1 and WAN 2, every indicator has two LED lights. When you plug
the cable end into the any connector port, the upper light will light up to notify you that a link is
detected on the internal interface. The lower light will be sparkling while data transmission.
Green System ready
Power light
Sparkling System staring
Green On line Ethernet light
Yellow Data transmission
Green On line WAN 1 light
Yellow Data transmission
Green On line WAN 2 light
Yellow Data transmission
1-3-b
、

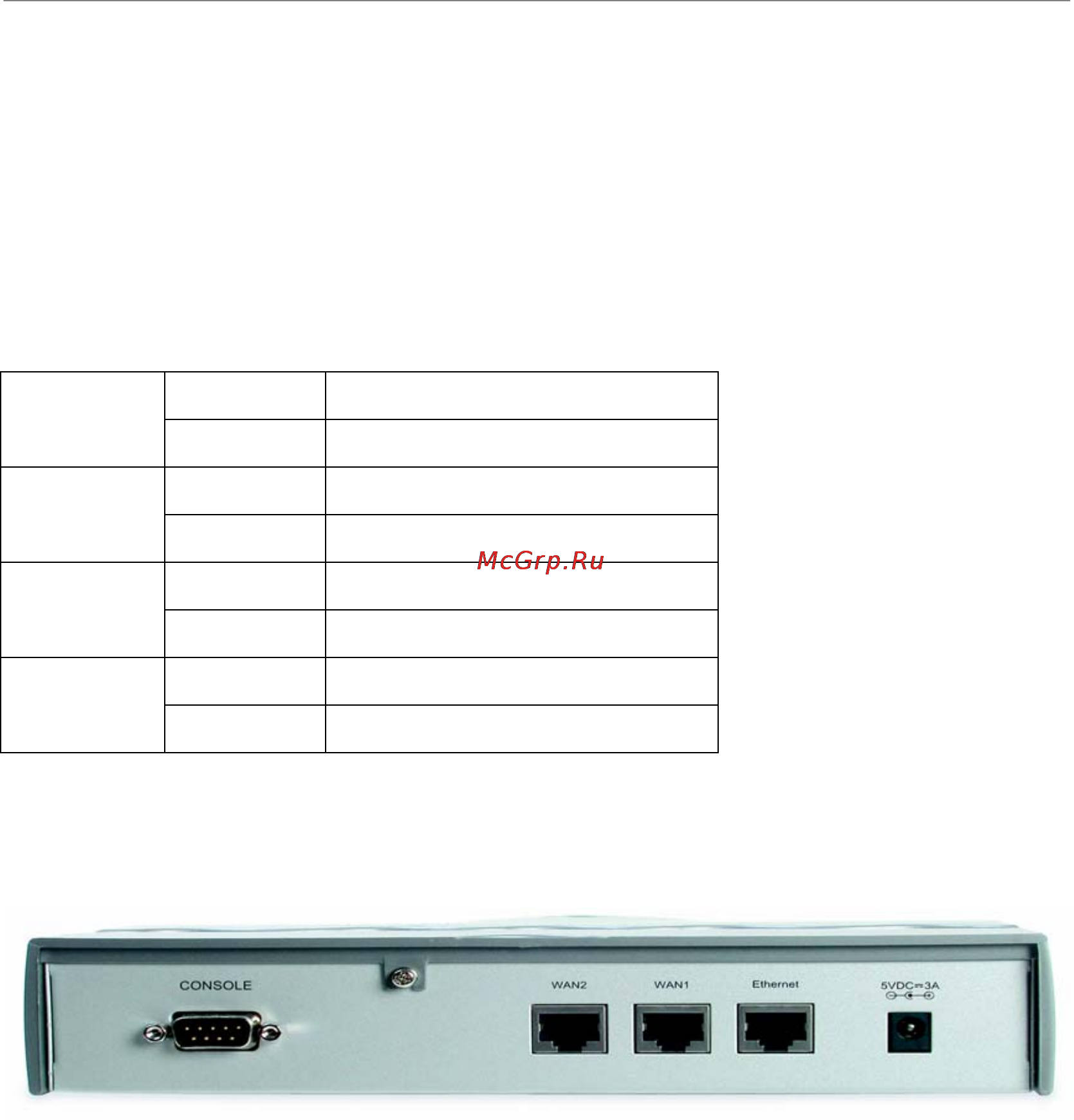

Rear Panel
♦ WAN 1 External Port
♦ WAN 2 External Port
♦ Ethernet Port
♦ DC Power Inlet
♦ Console Port
WAN 1 External Port：
Connect the primary Broadband Modem here.
WAN 2 External Port：
Connect the second Broadband Modem here, if available.
Ethernet Port：
Connect the PC, Hub or switch to this port. Both 10Base T and 100Base T connections can be
used simultaneously.
5
