DLB-1200 Network Load Balancer User Manual

♦ Add

You can click the "Add" button to add a new mapping in the following "IP Mapping List".

♦ Delete

You can click the "Delete" button to delete old mapping in above "Select Custom Server

Name" column.

♦ Reset

You can use reset button to clear the IP you entered in above columns.

2、IP Mapped List

All mapping you set will show in the "IP Mapped List". You can either click the "Delete" button

to delete existing mapping or click the "Add" button to add a new mapping in the "IP Mapped

List".

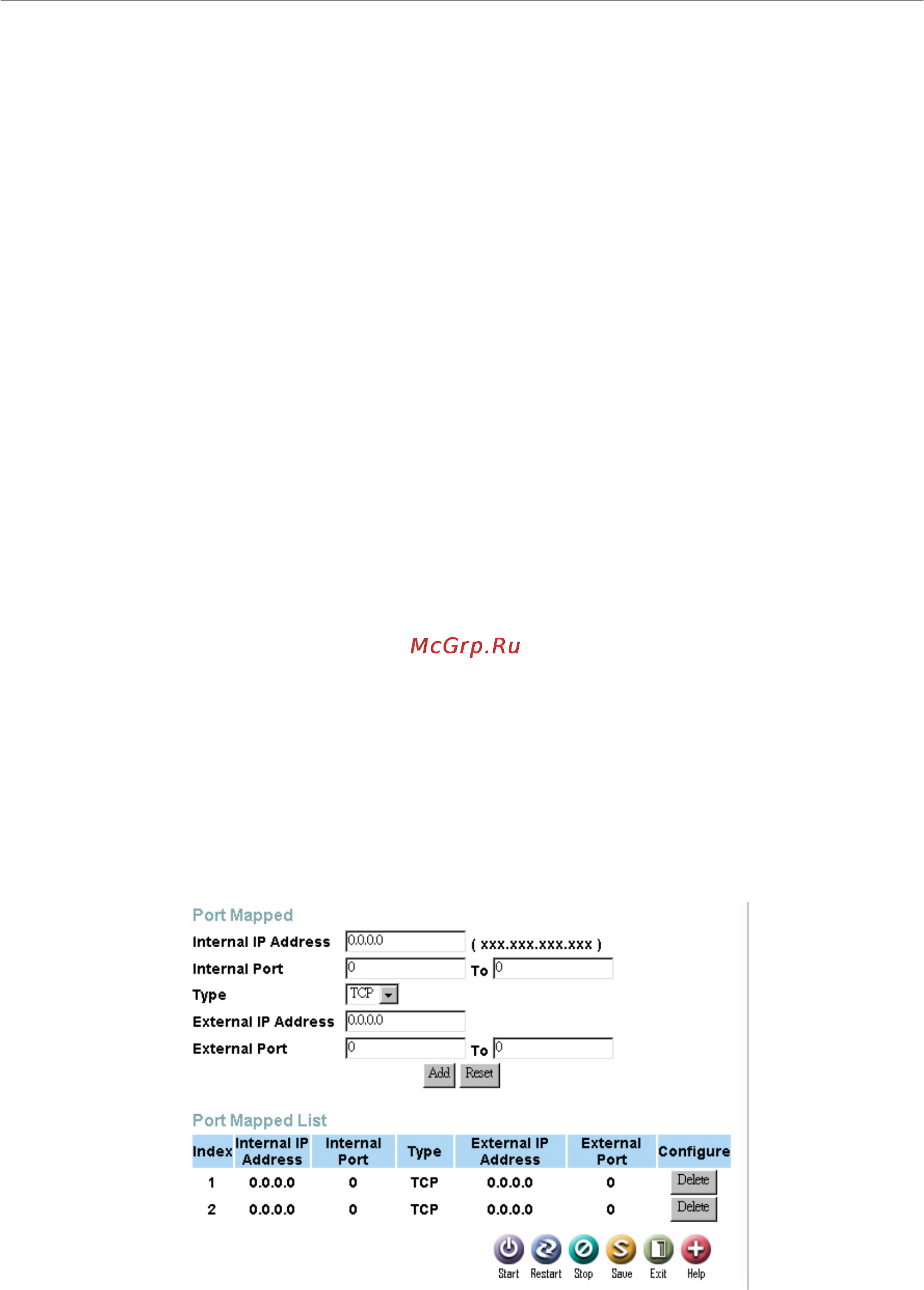

3、Port Mapped

Port Mapping allows you to configure a corresponding IP and port mapping between outside IP

address and internal IP address. Then Internet users might connect to the internal PC or

server through the external IP address.

Internal IP Address

Please enter an Internal virtual IP Address in this column.

Internal Port

Please enter the Port Number range corresponding to the service you want to provide. (Ex:

FTP Server, Mail Server, etc). If only one Port Number is needed, please enter same Port

Number in both two columns. When outside user's request to the external IP and port number,
