DLB-1200 Network Load Balancer User Manual
or MB as Bandwidth Unit. However, you should adjust the configuration to match real link
bandwidth to have exactly control.
2. QoS Policy List
All QoS Policy you set will show in the ""QoS Policy List". If you want delete one policy, just
choose the policy first then click "Delete".
NOTE：After you entered above essential data in this page/item, you have to click the "Save"
button on right below of the screen.
3-3-e
、
Firewall
Firewall function of DLB-1200, it provides some basic TCP/IP access control over your
network. It allows administrator to manage the traffic flow in the network, block unwanted visit
from Internet or deny the request to specific destination. On the other hand, we can accept
some access from Internet or allow specific outgoing access as well.

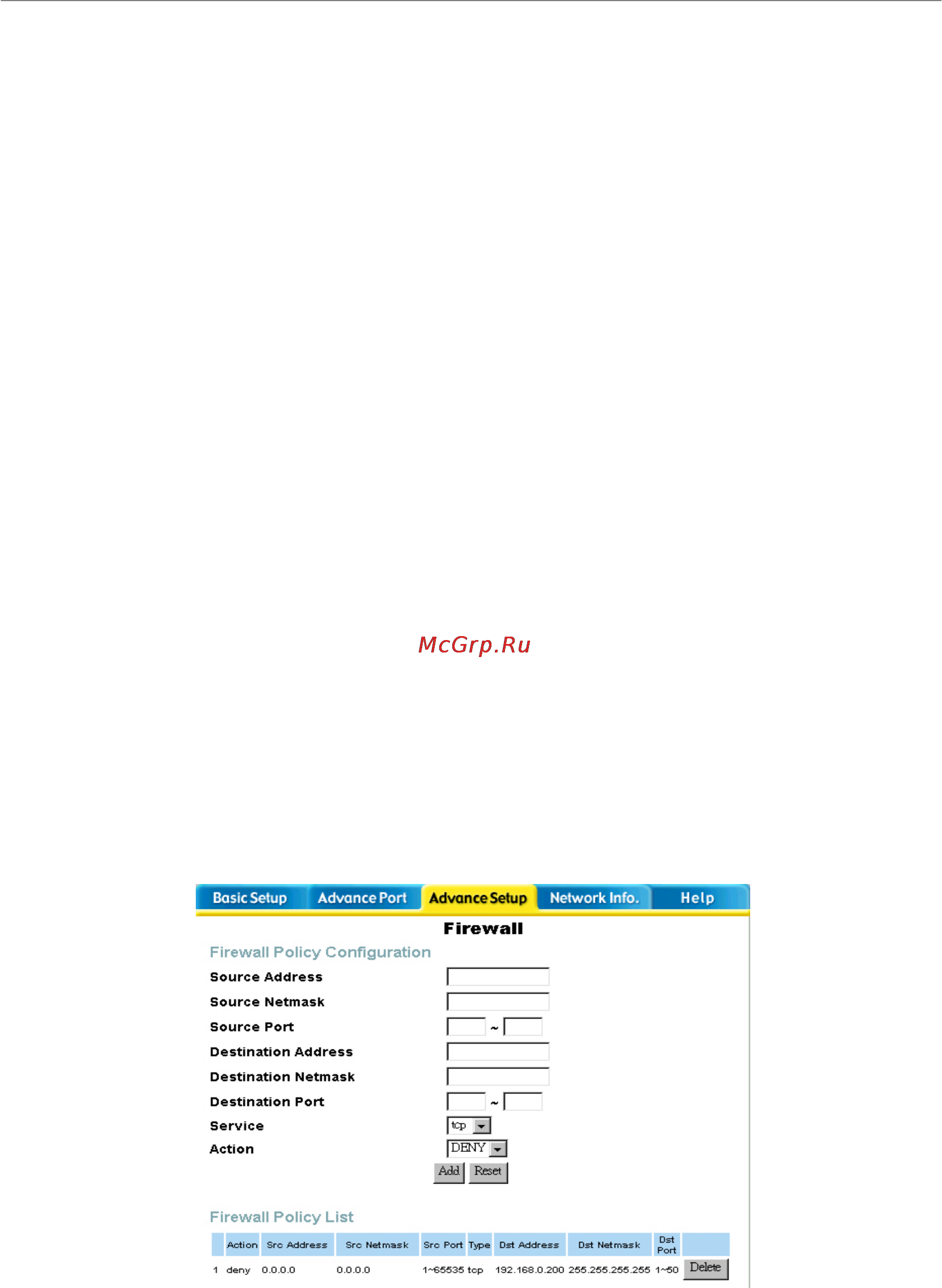

1. Firewall Policy Configuration
Source Address
Please enter the data-packets Source IP Address.
Source Netmask
Please enter the data-packets Source Subnet Mask.
28
