DLB-1200 Network Load Balancer User Manual
2、LAN IP List
This table shows the current LAN IP Addresses you configured. You can click the "Delete"
button to delete an LAN IP Address configuration.

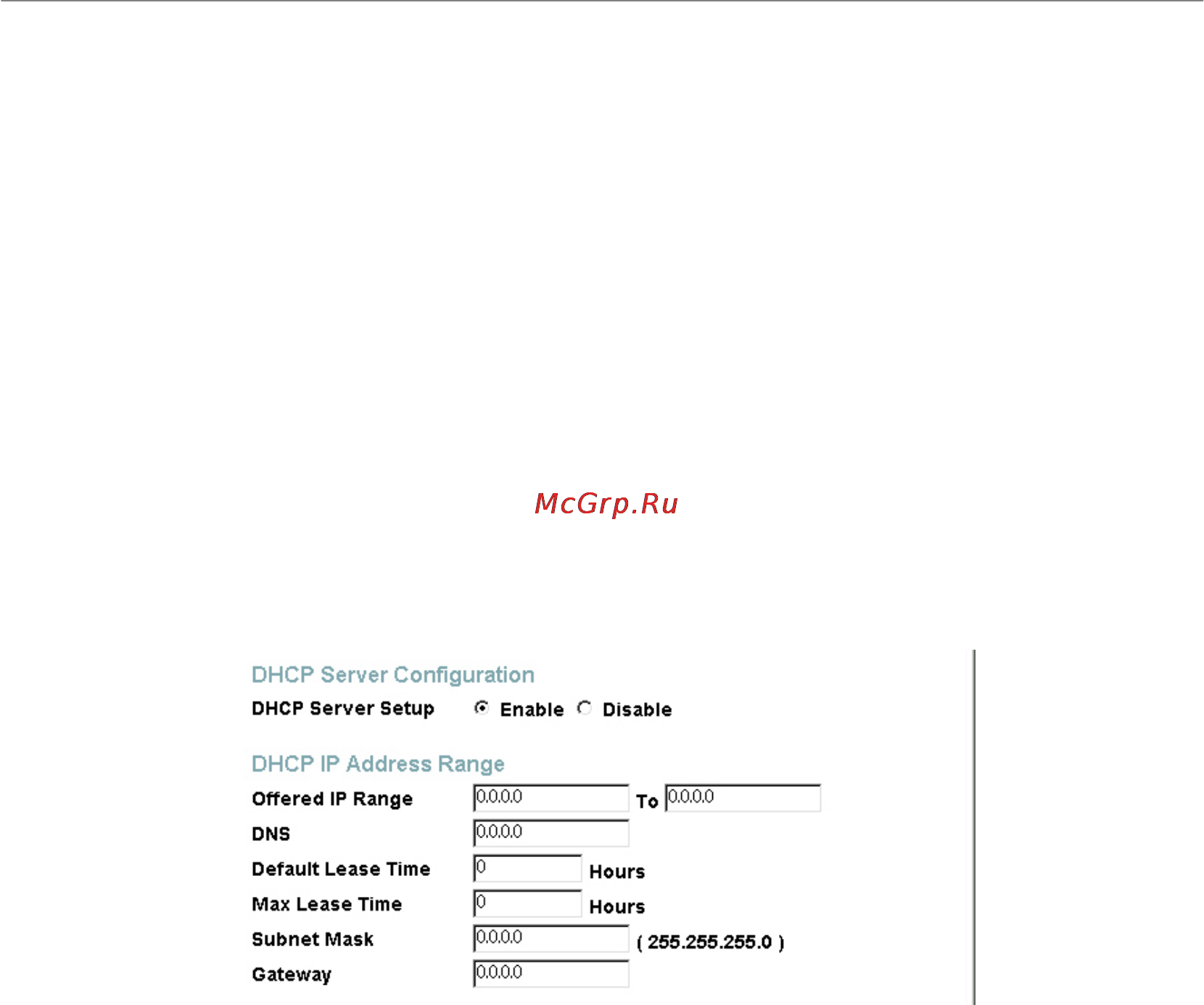

3、DHCP Server Configuration
DLB-1200 can provide the DHCP service and allocate IP Addresses to internal PCs. Please
open the DHCP server as required, and inter the IP Address range or other related
configuration.
Enable
If Enable, the DLB-1200 will allocate IP Addresses to PCs (DHCP clients) on your LAN when
these PCs start up. The default and recommended value is "Enable".
Disable
If you are already using another DHCP Server, the DHCP Server of DLB1200 setting must be
Disable, and existing DHCP server must be set to provide the IP Address of the DLB-1200 (ex.
192.168.0.1) as the Default Gateway.
After DLB-1200 has been set as the Default Gateway, please also verify your setting in DNS
Server for successful domain name resolution. Maybe change IP of DNS Server in the same
subnet as the DLB-1200 (ex. 192.168.0.x).
4、DHCP IP Address Range
If you're using the DLB-1200 to be the DHCP Server, please enter the related data in following
columns after clicking "Enable".
Offered IP Range
18
