DLB-1200 Network Load Balancer User Manual
configuration in each item page. After clicking "Save" button to save all configuration of
DLB-1200, "Stop" button can be used to stop DLB-1200 function temperately. When you click
the "Start" button to activate DLB-1200; it'll start to provide the services you previously set up.
3-5-a
、
Button Introduction

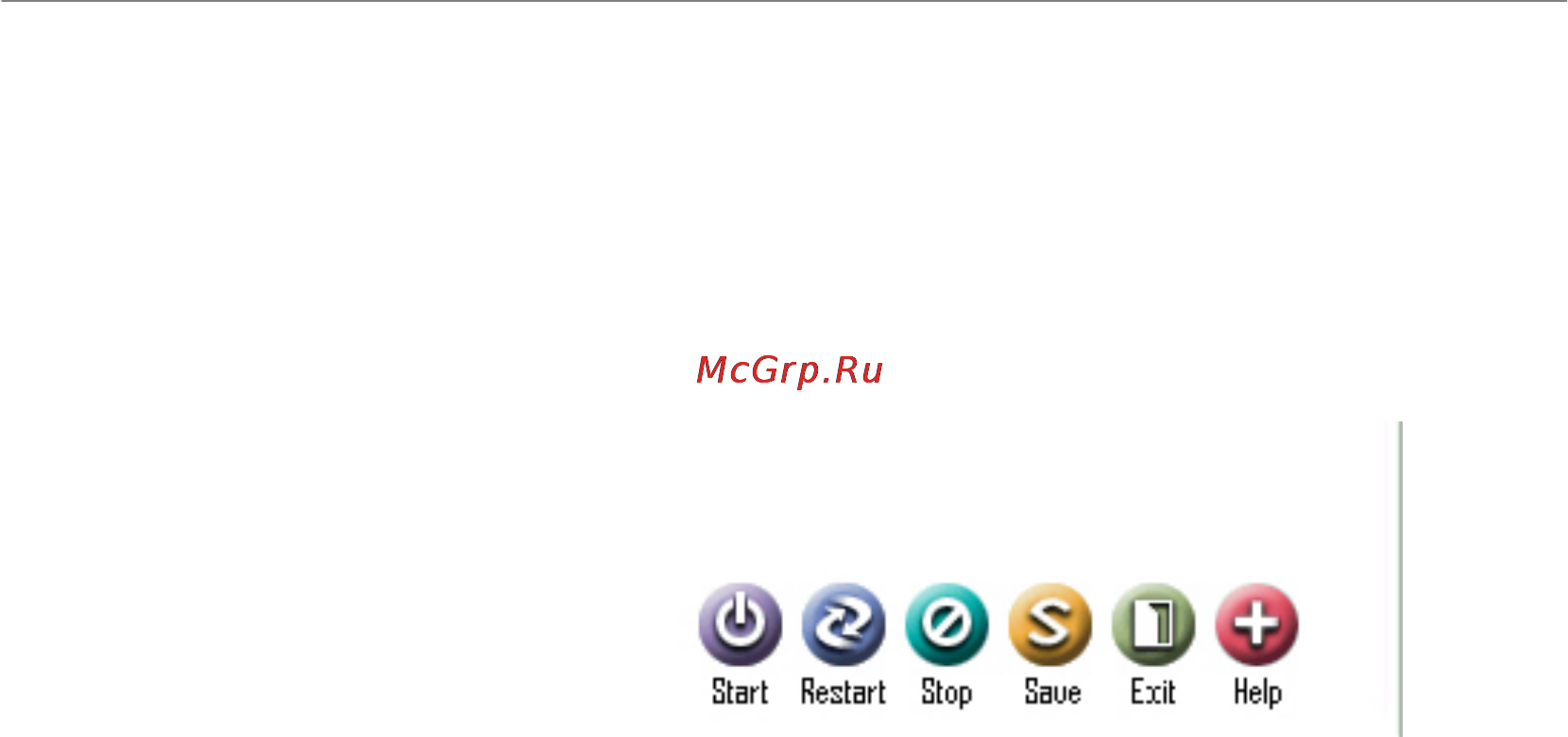

1、Start
When you changed and saved configuration in each item, DLB-1200 actually won’t execute
these modified configuration. You have to "Stop" DLB-1200 function by clicking "Stop" button
first. "Start" button is used to activate all new configurations of DLB-1200 .
2、Restart
After all configurations were saved, you can also use "Restart" button to activate all new
configurations of DLB-1200.
3、Stop
"Stop" button can stop all function of DLB-1200, and then you can use "Start" button to activate
all new DLB-1200's configurations again. When you clicking this button, network will be
disconnected immediately.
4、Save
When you changed configurations in each item, you have to use "Save" button to save new
configurations of DLB-1200.
5、Exit
After saving and activating DLB-1200, you can click the "Logout" button or close the window to
leave the DLB-1200 management interface.
