DLB-1200 Network Load Balancer User Manual
3-2-b
、
RIP I & RIP II

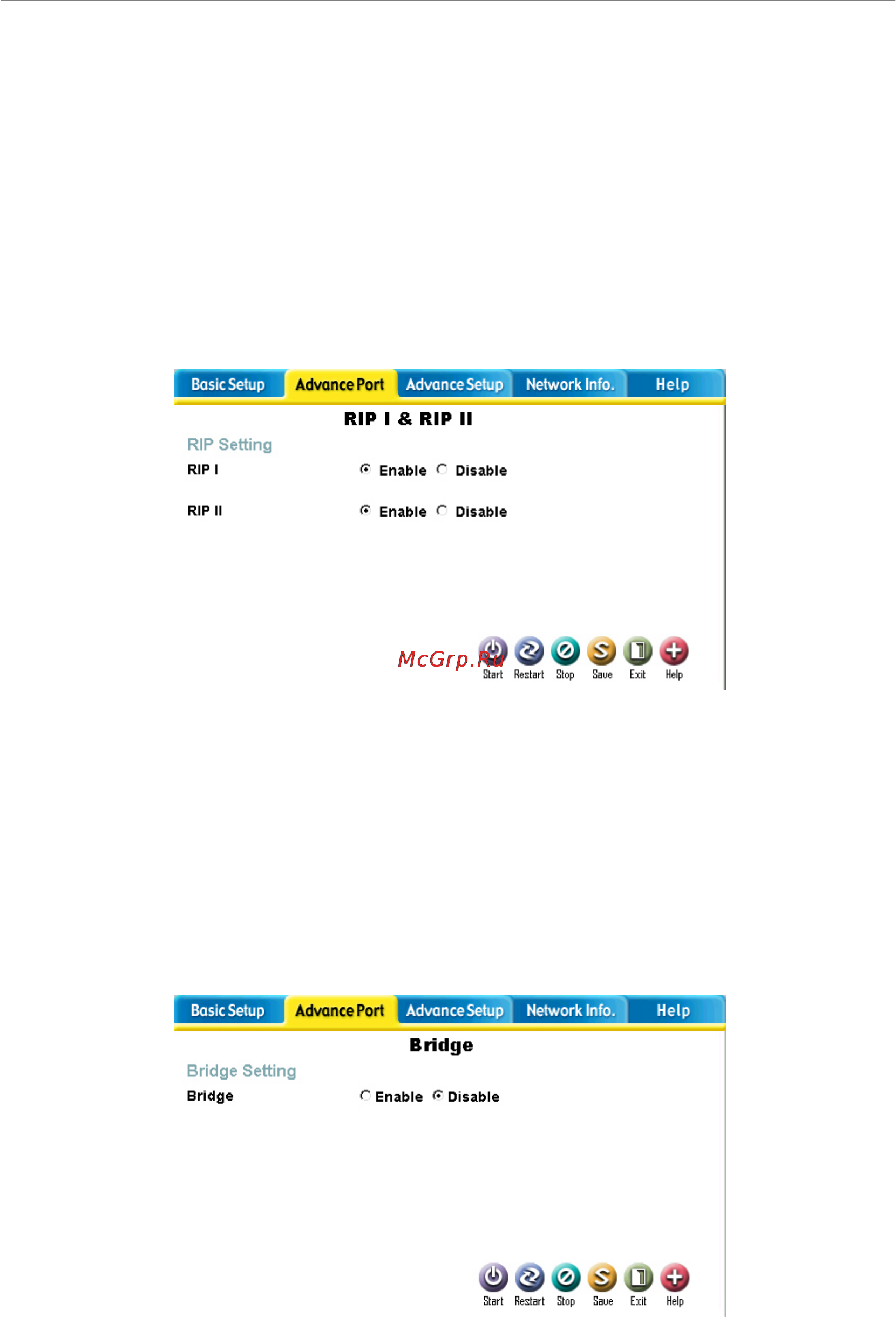

You can enable the "RIP I" or "RIP II" to allow DLB-1200 to receive RIP update from other
routing devices like router or multilayer switch. If you want DLB-1200 to receive the routing
update packets, please click "Enable". Otherwise, please click "Disable".
NOTE：After you entered above essential data in this page/item, you have to click the "Save"
button on right below of the screen.
3-2-c
、
Bridge
1、Bridge Setting
If you hope that LAN can connect to WAN and pass through DLB-1200 without any NAT, DMZ,
IP Mapping, please choose "Enable" then DLB1200 will act as a bridge. If you want to use
