DLB-1200 Network Load Balancer User Manual
1. DHCP IP Address Range
Offered IP Range
The column shows values used by the DHCP server when allocating IP Address to DHCP
client. The range also determines the number of DHCP client supported.
DNS
The column shows the IP Address of Default DNS Server.
Default Lease Time
The column shows the IP Default lease time. (Unit: second)
Max Lease Time
The column shows the IP Max lease time. (Unit: second)
Subnet mask
The column shows the Default Subnet mask here.
Gateway IP
The column shows the Default Gateway IP Address here.
2. DHCP Clients List
This column will show all related data of DHCP clients that were allocated IP Address by DLB-1200.

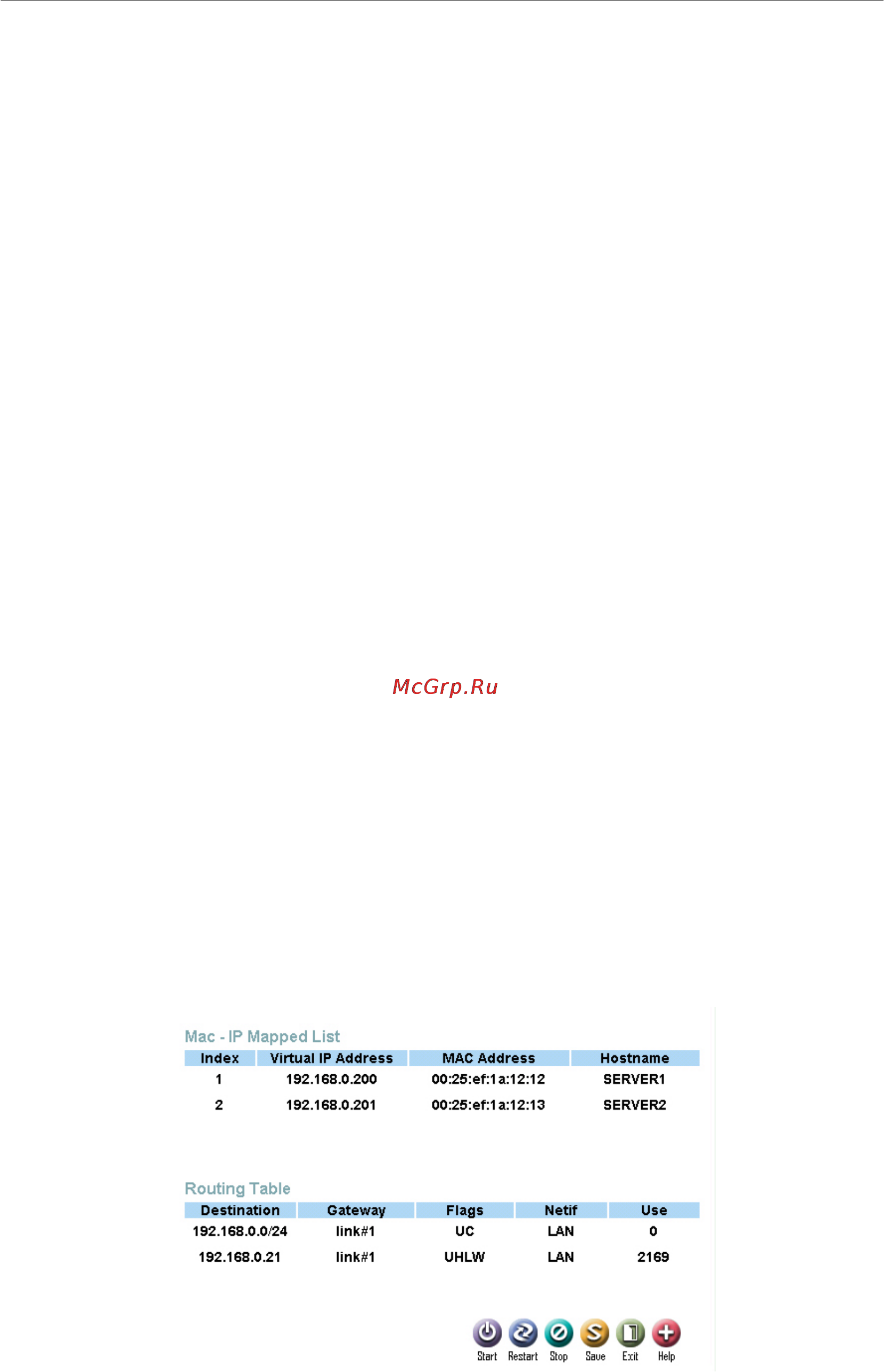

3. Mac - IP Mapped List
This table shows the current Mac-IP Mapping.
