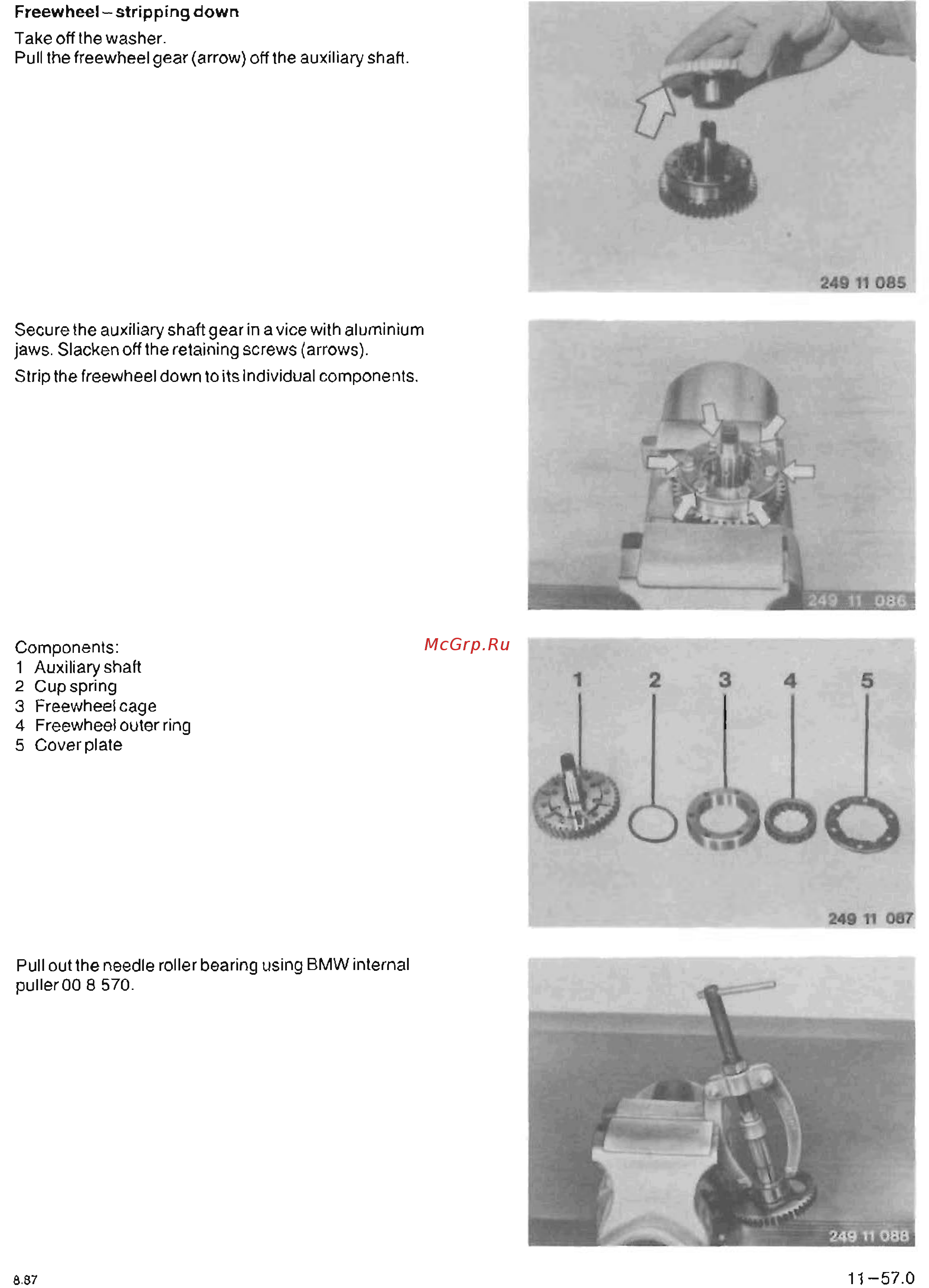

Freewheel-
stripping down
Take off the washer.
Pulilhe freewheel gear (arrow) off the auxiliary shaft.
Secure the auxiliary shaft gear
in
a vice with aluminium
jaws. Slacken offthe retaining screws (arrows).
Strip the freewheel down to its individual components.
Components:
1 Auxiliary shaft
2 Cup spring
3
Freewheel cage
4 Freewheel outer ring
5 Cover plate
Pull out the needle roller bearing using BMW internal
puller 00 8 570.
8.87
24!U1085
1
2
3
4 5
'--
___
~
________
249
11
087
11
- 57.0
by a kind approval of the BMW AG for
www. flyingbrick . de
