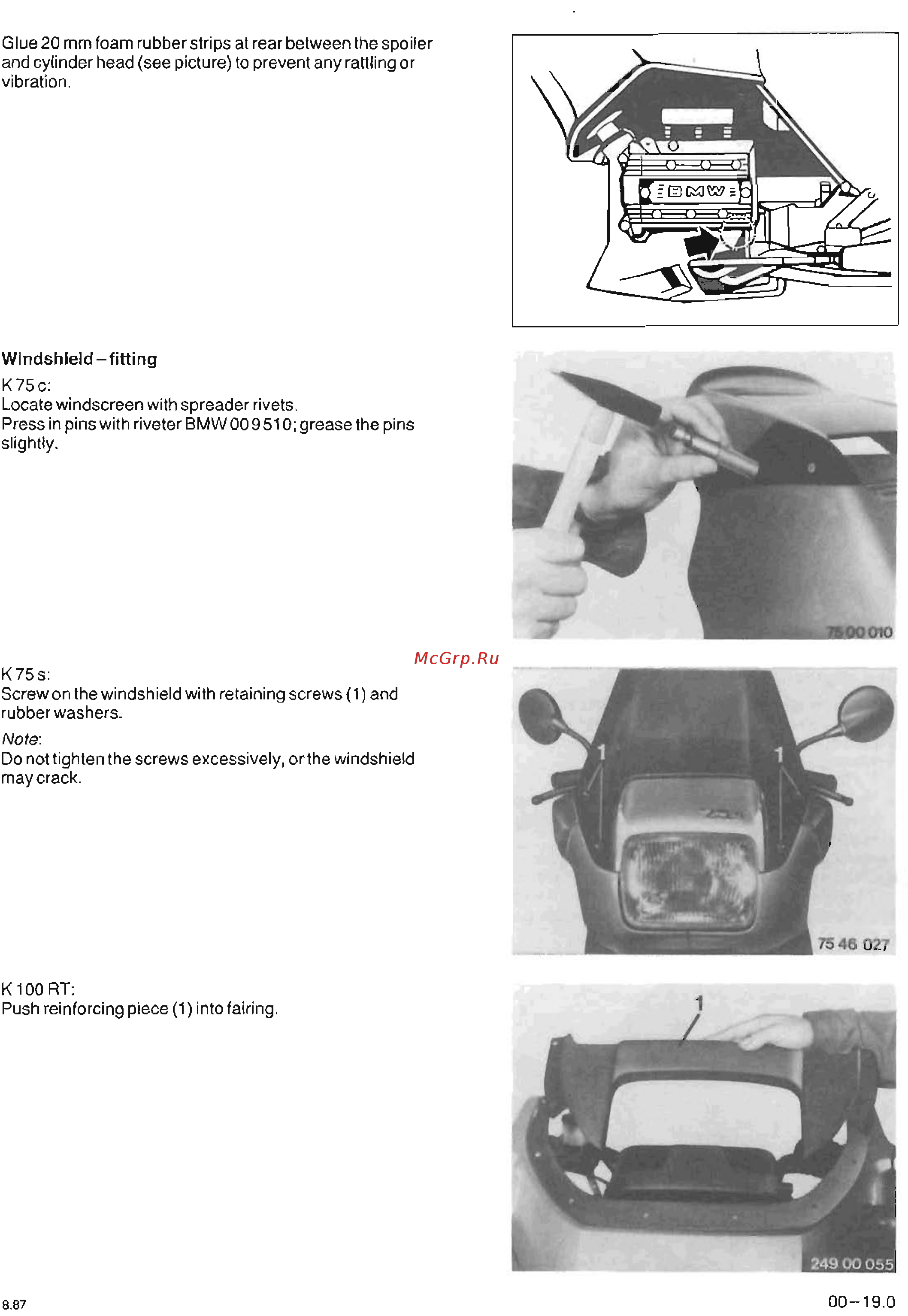

Glue 20 mm foam rubber strips at rear between the spoiler
and cylinder head (see picture) to prevent any rattling
or
vibration.
Windshield
-fitting
K75c:
Locate windscreen with spreader rivets.
Press in pins with riveter BMW 00 9
51
0; grease the pins
slightly.
K75s
:
Screw on the windshield with retaining screws (1) and
rubber washers.
Note:
00
nottighten the screws excessively,
orthe
windshield
maycrack
.
K100RT:
Push reinforcing piece (1) into fairing.
8.87
7546027
00- 19.0
by a kind approval of the BMW AG for
www. flyingbrick . de
