BMW K75 [319/461] Sealing
![BMW K75 [319/461] Sealing](/views2/1498024/page319/bg13f.png)
~
7533084
33-24
.0

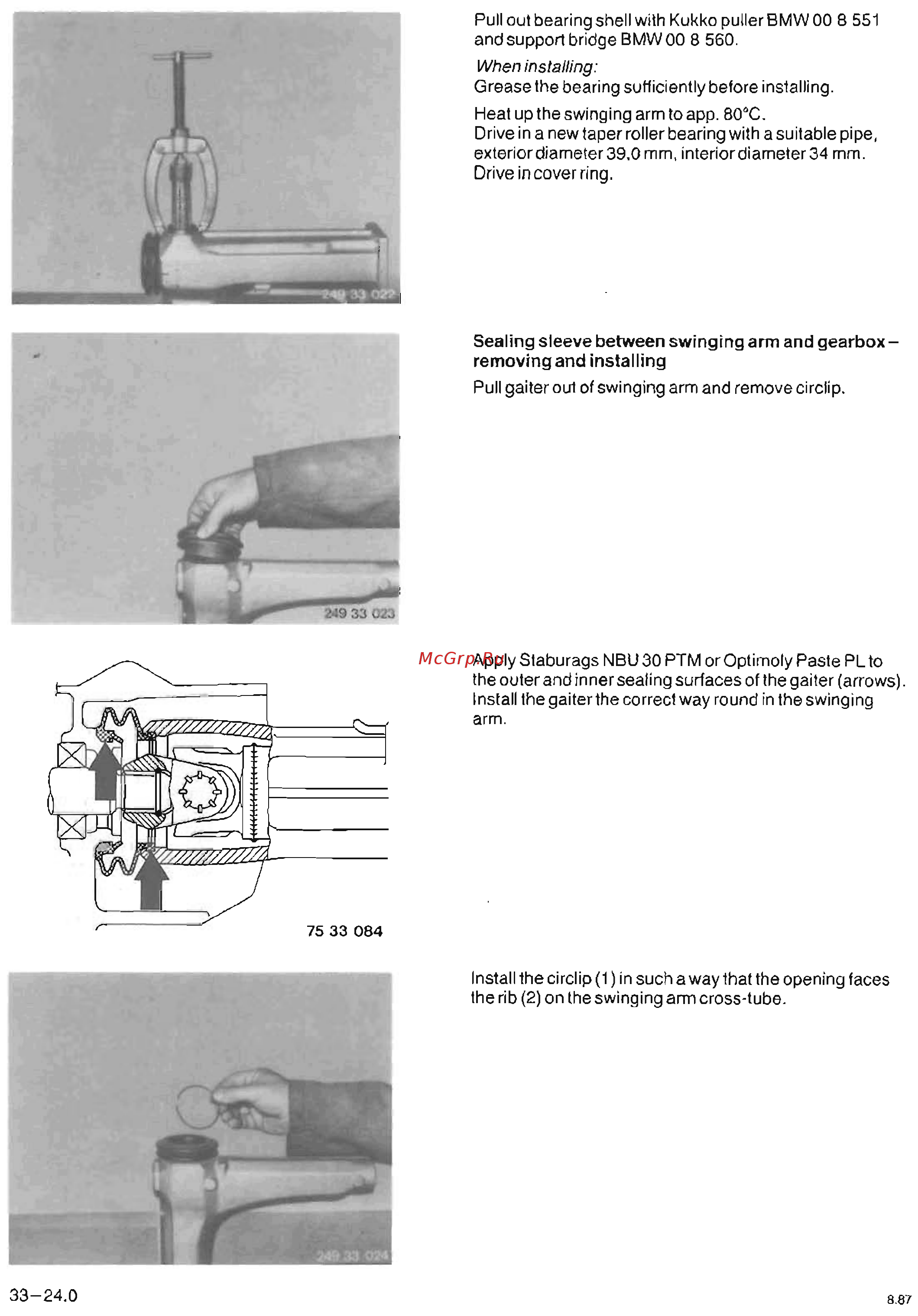

Pull out bearing shell with Kukko pUlier
BMW
008551
and support bridge
BMW
00 8 560.
When installing:
Grease the bearing sufficiently betore installing.
Heat up the swinging arm to app. 80
o
e.
Drive in a
new
taper roller bearing with a suitable pipe,
exterior diameter
39,0
mm, interior diameter
34
mm.
Drive in cover ring.
Sealing sleeve between
swinging
arm and
gearbox-
removing and installing
Pull gaiter
out
01
swinging arm and remove circlip.
Apply Staburags NBU
30
PTM or Optimoly Paste PL to
the outer and innersealing surfaces
ofthe
gaiter (arrows).
Install the
gaiterthe
correct
way
round in the swinging
arm.
Install the circlip (1) in such a
waythatthe
opening taces
the rib (2) on the swinging arm cross-tube.
8.87
by a kind approval of the BMW AG for
www. flyingbrick . de
