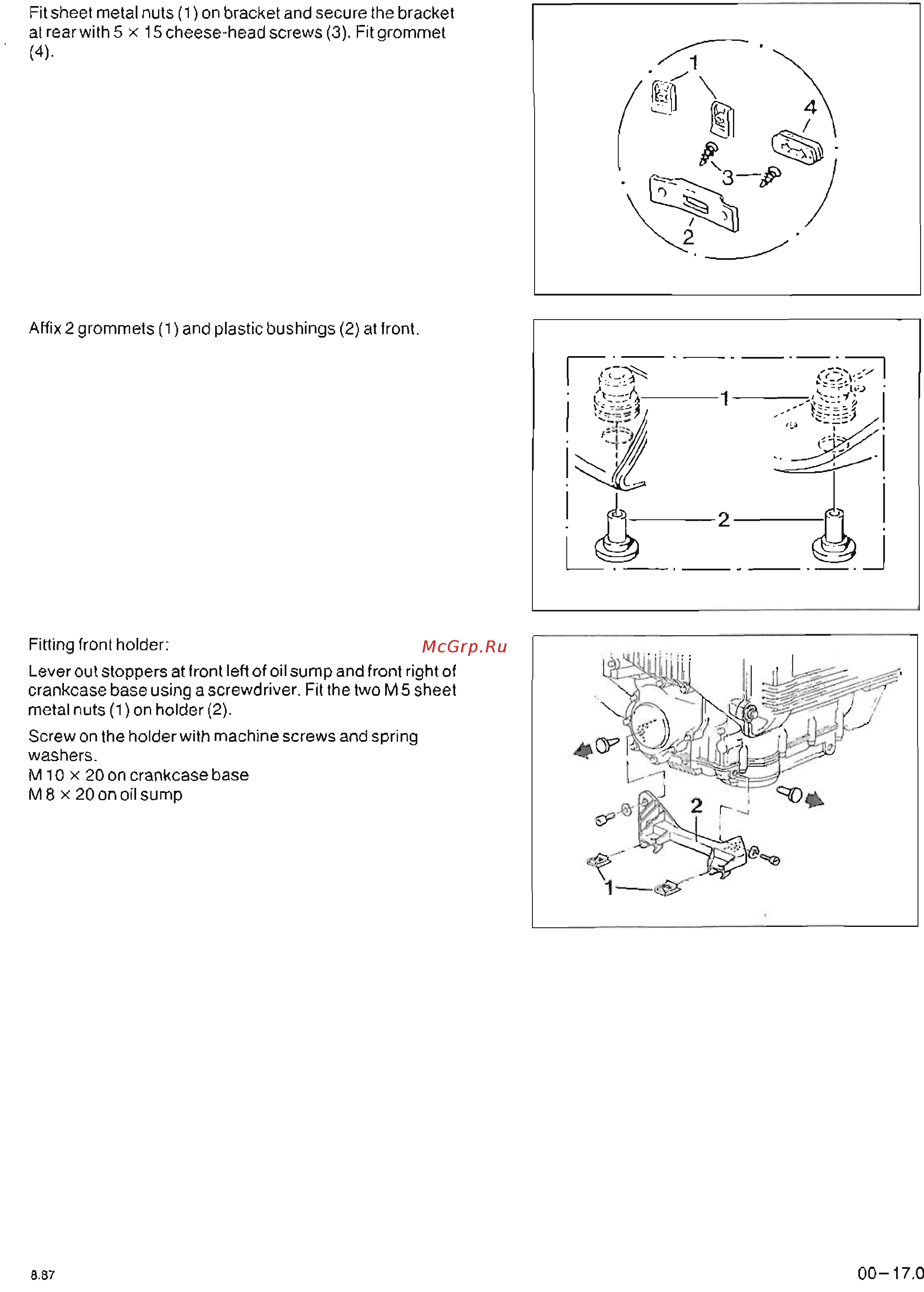

Fit sheet metal nuts (1) on bracketand
securethe
bracket
at rear with 5 x 15 cheese
-h
ead screws (3). Fit grommet
(4) .
Affix 2 grommets (1) and plastic bushings (2) at front.
Fitting front holder:
Lever out stoppers at front left of oil sump and front right of
crankcase base using a screwdriver. Fit the two M 5 sheet
metal nuts (1) on holder (2).
Screw on the holder with machine screws and spring
washers.
M 10 x 20 on crankcase base
M 8 x
200noil
sump
8.87
~.
(
~~
~
"
~.
