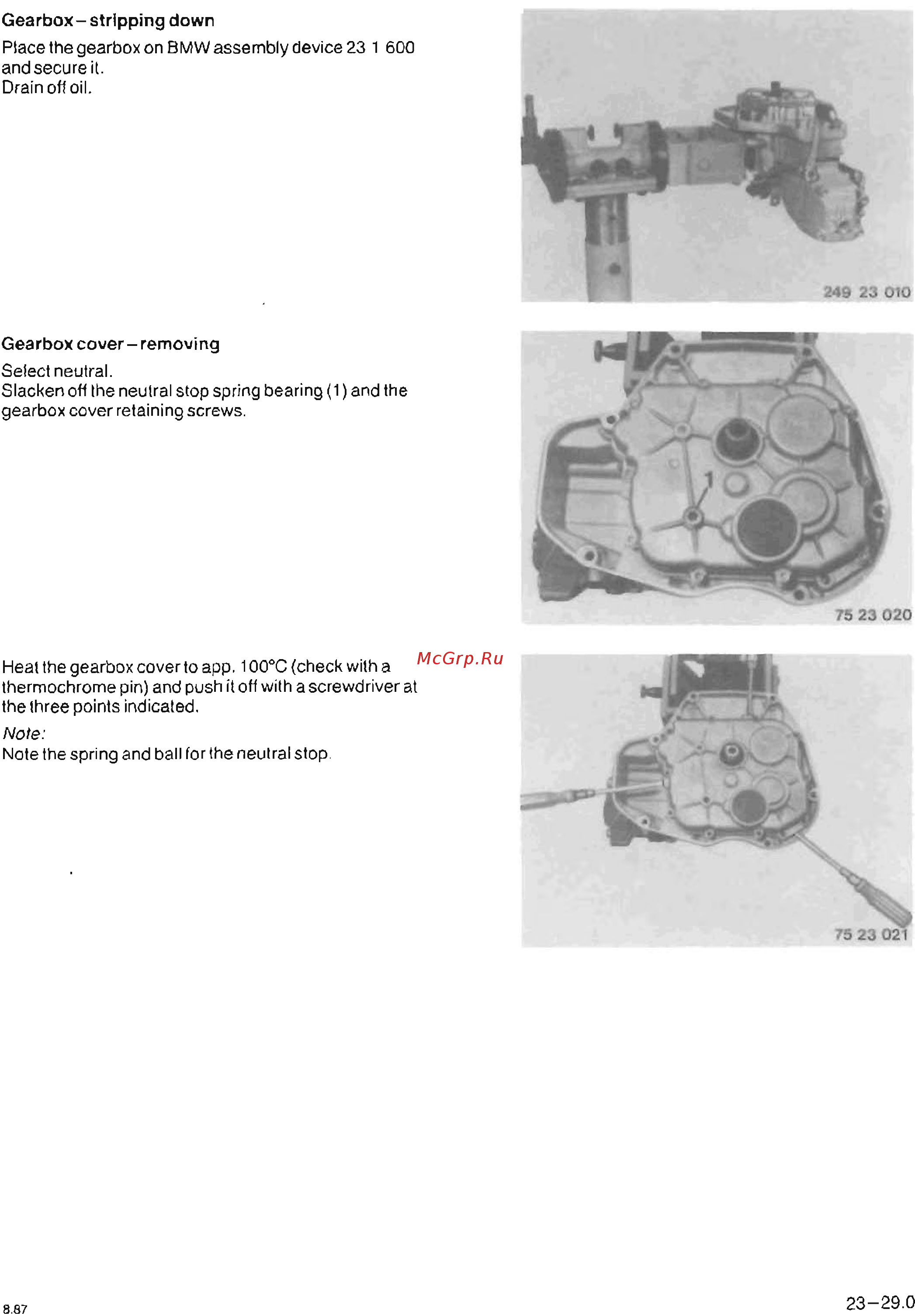

Gearbox -
stripping
down
Place the gearbox on
BMW
assembly device 23 1 600
and secure
it.
Drain off oi
l.
Gearbox
cover
- removing
Select neutral.
Slacken off the neutral stop spring bearing (1) and the
gearbox cover retaining screws.
Heatthe
gearbox
coverto
app. 100
0
e (check with a
thermochrome pin) and push it off with a screwdriver at
the three points indicated.
Note:
Note the spring and ball tor the neutral stop.
8.87
249
23010
752302
0
23
":'
29.0
