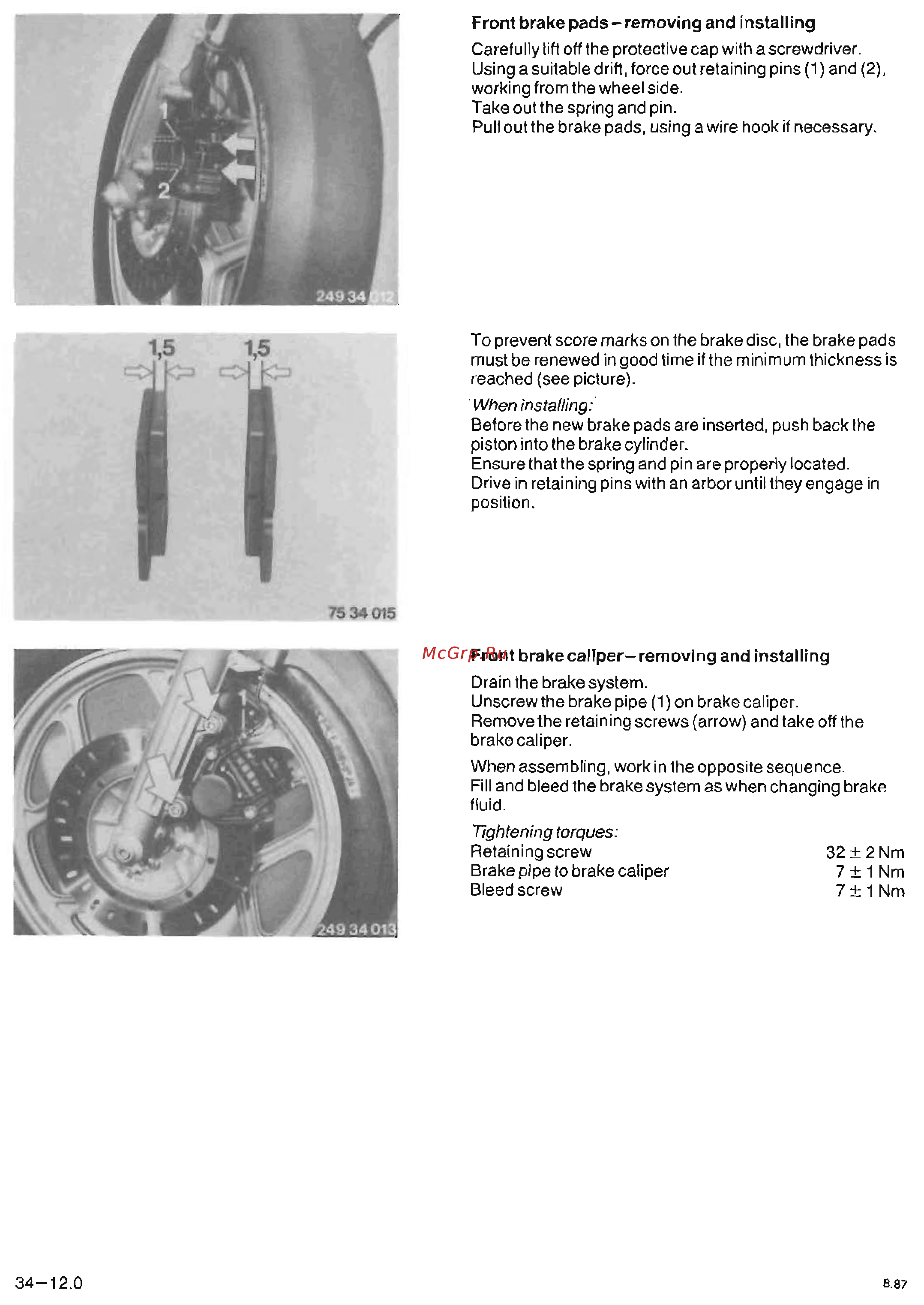

Front brake pads - removing and installing
Carefully lift off the protective
cap
with a screwdriver.
Using a suitable drift, force out retaining pins (1) and (2),
working from the wheel side.
Take out the spring and pin.
Pull
outthe
brake pads, using a wire hook if necessary.
To
preventscore
marks on the brake disc, the brake pads
must be renewed
in
good time if the minimum thickness is
reached (see picture) .
. When instalfing:'
Before the new brake pads are inserted, push back the
piston into the brake cylinder.
Ensure
thatthe
spring and pin are properly located.
Drive in retaining pins with an arbor until they engage in
position.
Front brake
caliper-
removing and installing
Drain the brake system.
Unscrew the brake pipe (1) on brake caliper.
Remove the retaining screws (arrow) and take off the
brake caliper.
When assembling, work in the opposite sequence.
Fill and bleed the brake system as when changing brake
fluid.
Tightening torques:
Retaining screw
Brake pipe to brake caliper
Bleedscrew
32±2Nm
7±1Nm
7±1Nm
