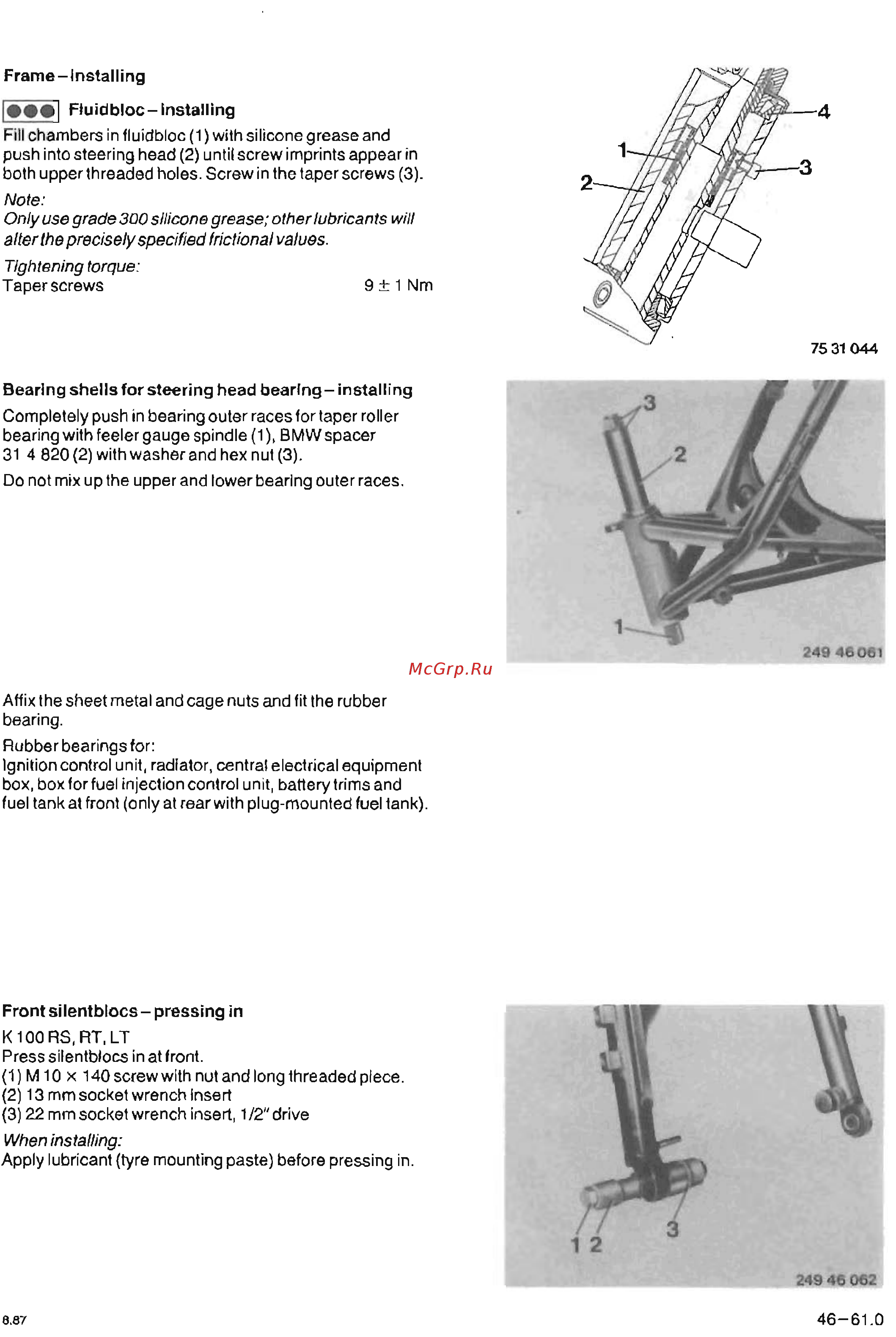

Frame-
ins
t
alling
,
•••
,
Fluidbloc-installing
Fill chambers in fluidbloc (1) with silicone grease and
push into steering head (2) until screw imprints appear in
both upper threaded holes. Screw in the taper screws (3) .
Note:
Only
use
grade
300
silicone grease;
other
lubricants will
alter the precisely specified frictional values.
Tightening torque:
Taper screws
9±1Nm
Bearing
shells
tor
steering
head
bearing
-
installing
Completely push in bearing outer races
fortaper
roller
bearing with feel
ergauge
spindie (1),
BMW
spacer
31
4820
(2) with washer and hex nut (3).
00
not mix up the upper and lower bearing outer races.
Affix the sheet metal and cage nuts and fit the rubber
bearing.
Rubber bearings for:
Ignition control uni
t,
radiator, central electrical equipment
box,
boxforfuel
injection control unit, batterytrims and
fuel tank
atfront
(only at
rearw
ith plug-mounted fuel tank).
Front
silentblocs
-
pressing
in
K
100RS,
RT,
LT
Press silentblocs in at front.
(1) M 10 x 140 screw with nut and long threaded piece.
(2) 13
mm
socket wrench insert
(3) 22 mm socket wrench insert, 1/2" drive
When installing:
Apply lubricant (lyre mounting paste) before pressing in.
8.
87
4
7531044
24946061
24946062
46-61
.0
by a kind approval of the BMW AG for
www. flyingbrick . de
