2493221

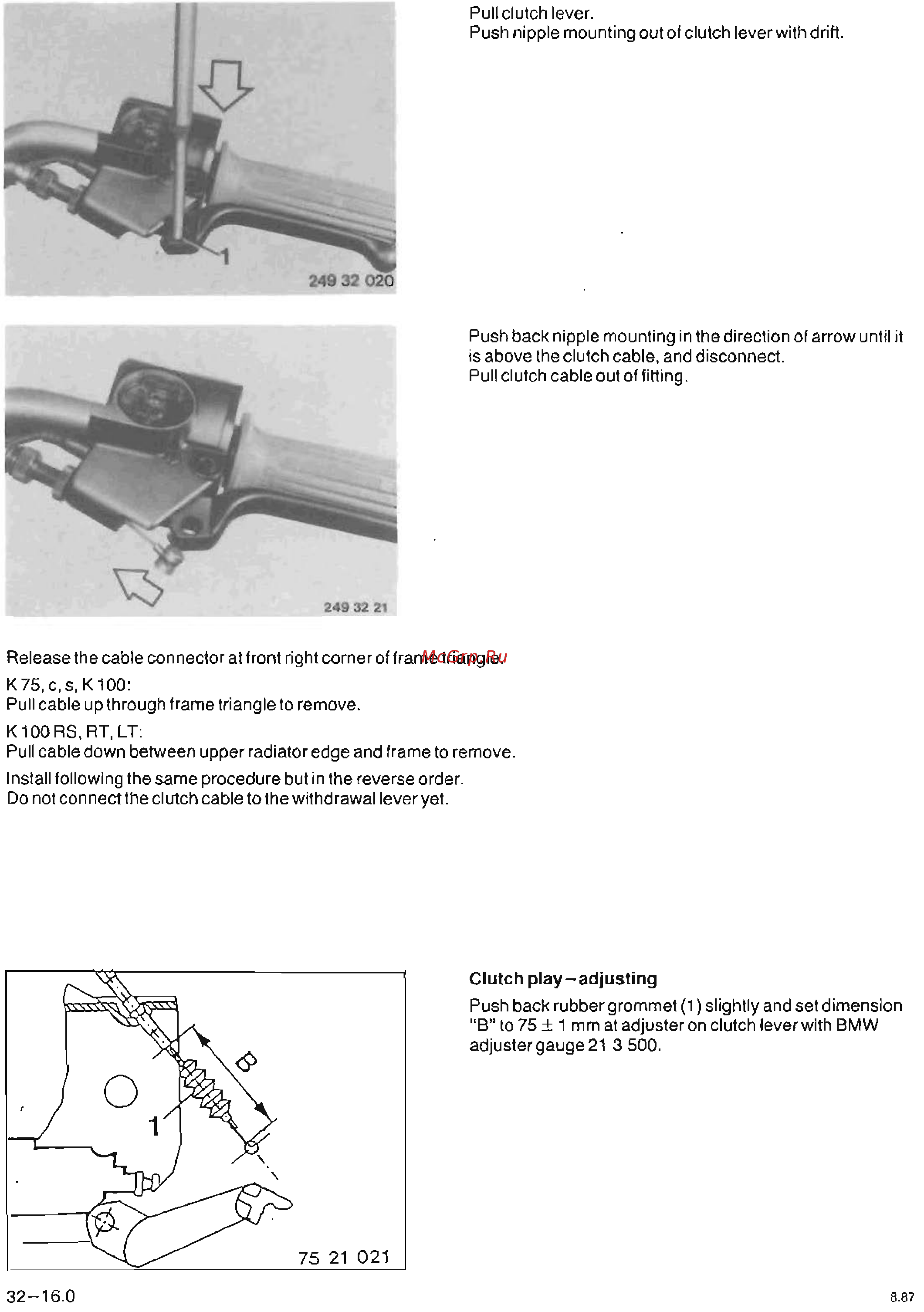

Pull clutch lever.
Push nipple mounting out of clutch leverwith drift.
Push back nipple mounting in the direction of arrow until it
is above the clutch cable, and disconnect.
Pull clutch cable out of fitting .
Release the cable connector at front right corner of frame triangle .
K75,
c,
s,
K 100:
Pull cable up through frame triangle to remove.
K100RS
, RT, LT:
Pull cable down between upper radiator edge and frame to remove.
Install foliowing the same procedure but in the reverse order.
00
not
connectthe
clutch cable to the withdrawallever yet.
o
75
21
021
32- 16.0
Clutch
play-adjusting
Push back rubber grommet (1) slightly and set dimension
"B"
to 75 ± 1 mm at adjuster on clutch leverwith
BMW
adjuster gauge
21
3 500.
8.87
by a kind approval of the BMW AG for
www. flyingbrick . de
