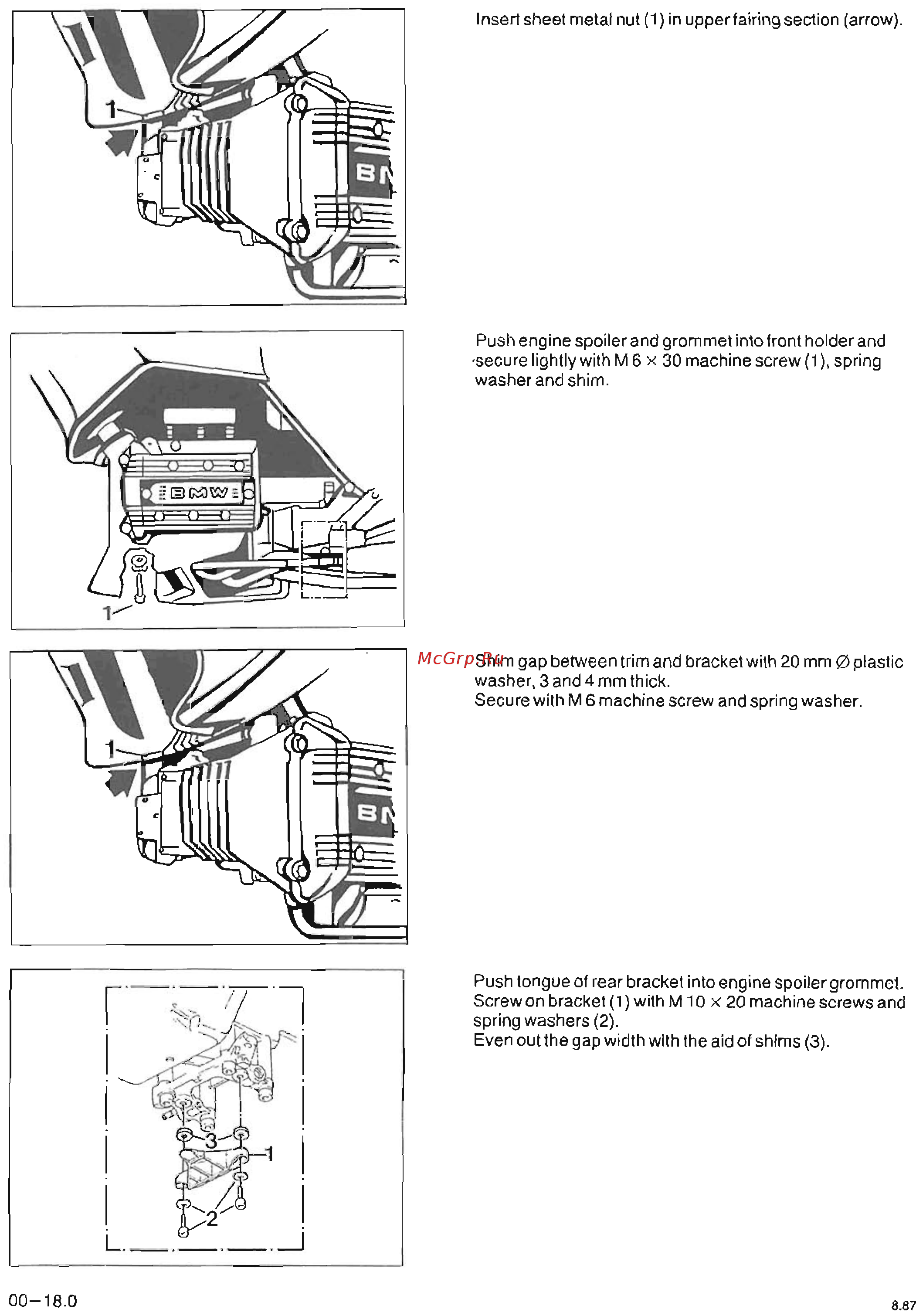

Insert sheet metal nut (1) in upper fairing section (arrow).
Push engine spoiler and grommet into front holder and
'secure lightlywith M 6 x 30 machine screw (1) , spring
washer and shim.
Shim gap between trim and bracket with 20 mm
0 plastic
was her, 3 and 4 mm thick.
Secure with M 6 machine screw and spring washer.
Push tongue of rear bracket into engine spoiler grommel.
Screw on bracket (1) with M 10 x 20 machine screws and
spring washers (2).
Even
outthe
gap width with the aid
ofshims
(3).
