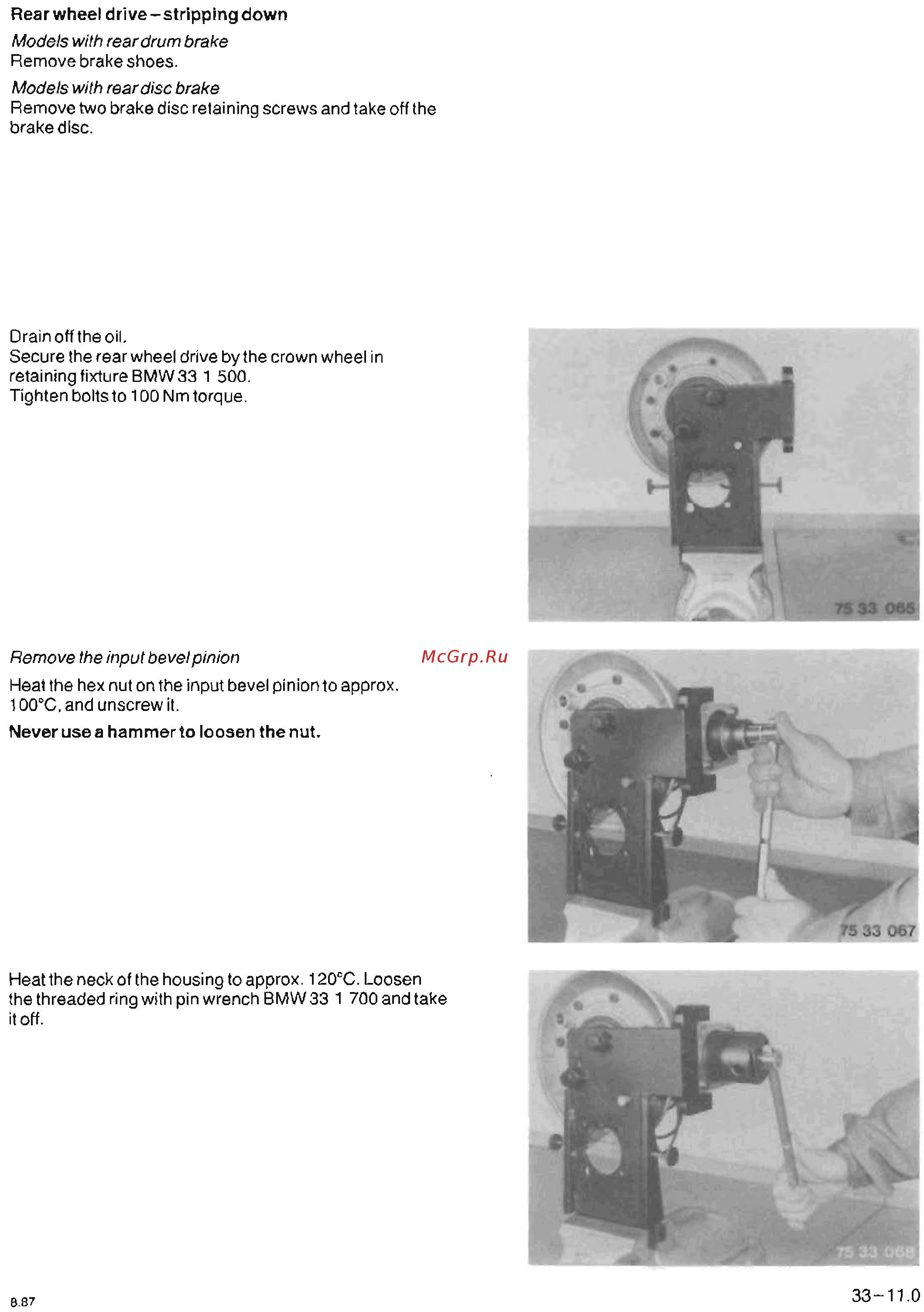

Rear wheel drive - stripping
down
Models with rear drum brake
Remove brake shoes.
Models with rear disc brake
Remove
two
brake disc retaining screws and take off the
brakedisc.
Drain
offthe
oil.
Secure the rear wheel drive by the crown wheel in
retaining fixture
BMW
33 1 500.
Tighten bolts to 1 00 Nm torque.
Remove the input
bevel
pinion
Heatthe
hex nut on the input bevel pinion to approx.
100°C, and unscrew
it.
Never use a
hammer
to loosen the nut.
Heatthe
neck
ofthe
housing to approx. 120°C. Loosen
the threaded ring with pin wrench
BMW
33
1 700 and take
itoff.
8.
87
33-11
.0
by a kind approval of the BMW AG for
www. flyingbrick . de
