11-88.0

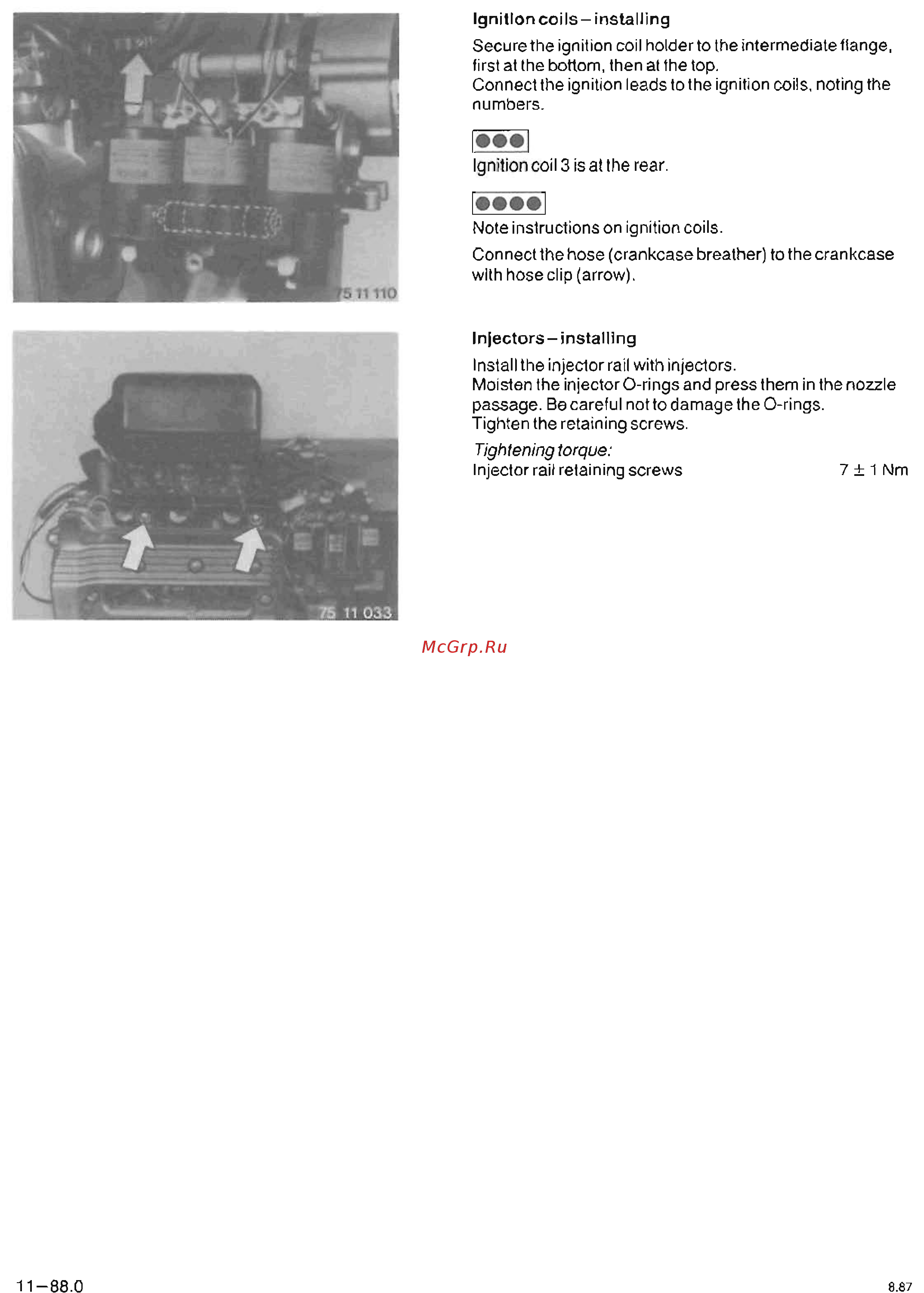

Ignition
coils-
installing
Secure the
ignilion
coil
holderto
the intermediate flange,
first at the bollom, then at the top.
Connect the ignition leads to the ignition coils, noting the
numbers.
ree=-
I
Ignition
coil3
is at the rear.
1
····
1
Note instructions on ignition coils.
Conneclthe
hose (crankcase breather) to Ihe crankcase
wilh hose clip (arrow) .
Injectors - installing
Install the injector rail with injectors.
Moisten the injeclor O-rings and press them in Ihe nozzle
passage. Be careful not to damage the O-rings.
Tighten the retaining screws.
Tightening torque:
Injector rail retaining screws 7 ±
1Nm
8.87
