Bem
'.
~
t
"
-----:-.
--
249
00020
00-16.0
AHix

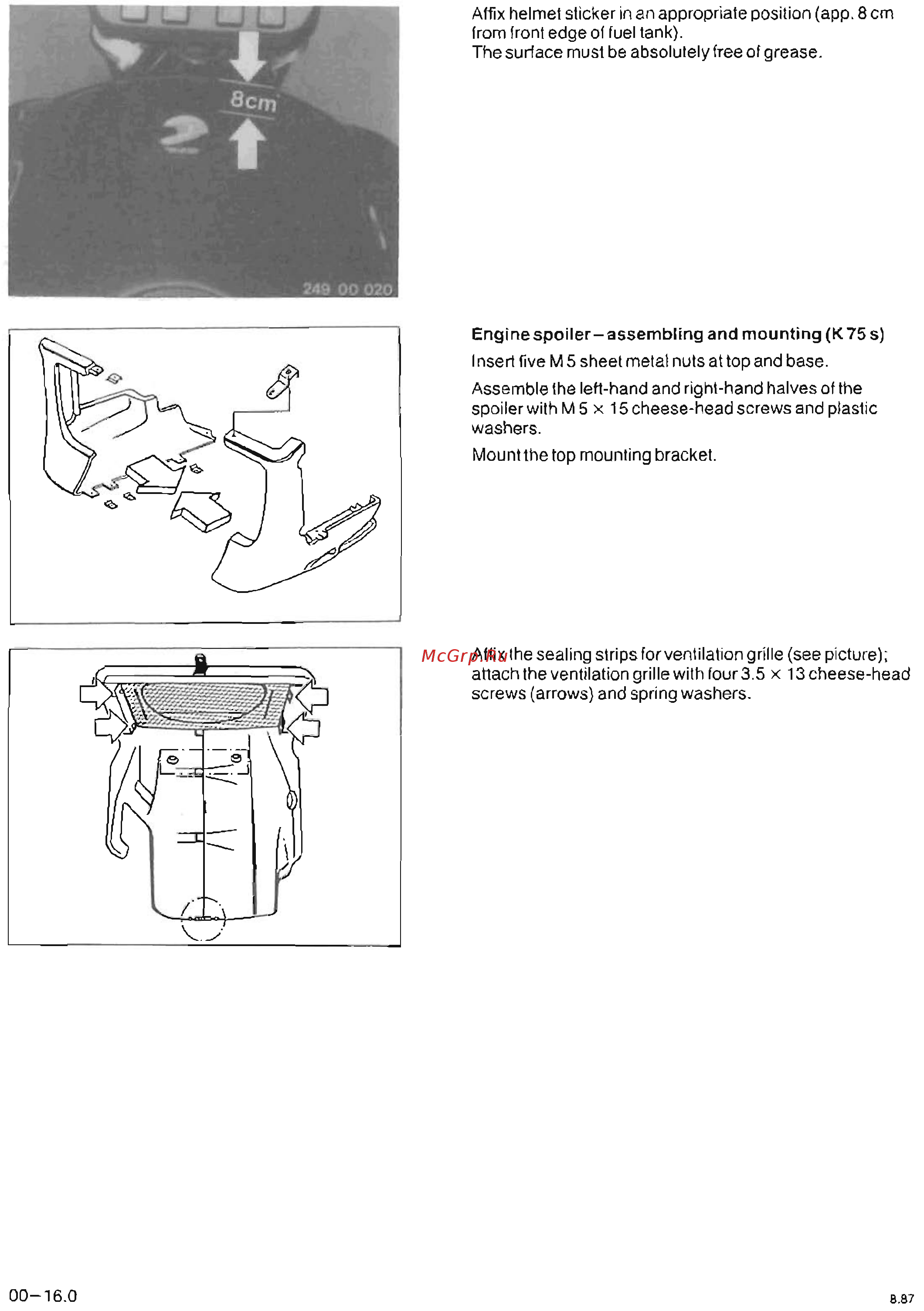

heimet sticker in an appropriate position (app. 8 cm
lrom Iront edge
offuel
tank) .
The surface must be absolutely Iree
01
grease.
Engine
spoiler-
assembling
and
mounting
(K 75
s)
Insert live M 5 sheet metal nuts
attop
and base.
Assemble the lett-hand and right-hand halves
01
the
spoiler with M 5 x 15 cheese-head screws and plastic
washers.
Mount the top mounting bracket.
AHix
the sealing strips lorventilation grille (see picture);
attach the ventilation grille with
lour
3.5 x 13 cheese-head
screws (arrows) and spring washers.
8.87
by a kind approval of the BMW AG for
www. flyingbrick . de
