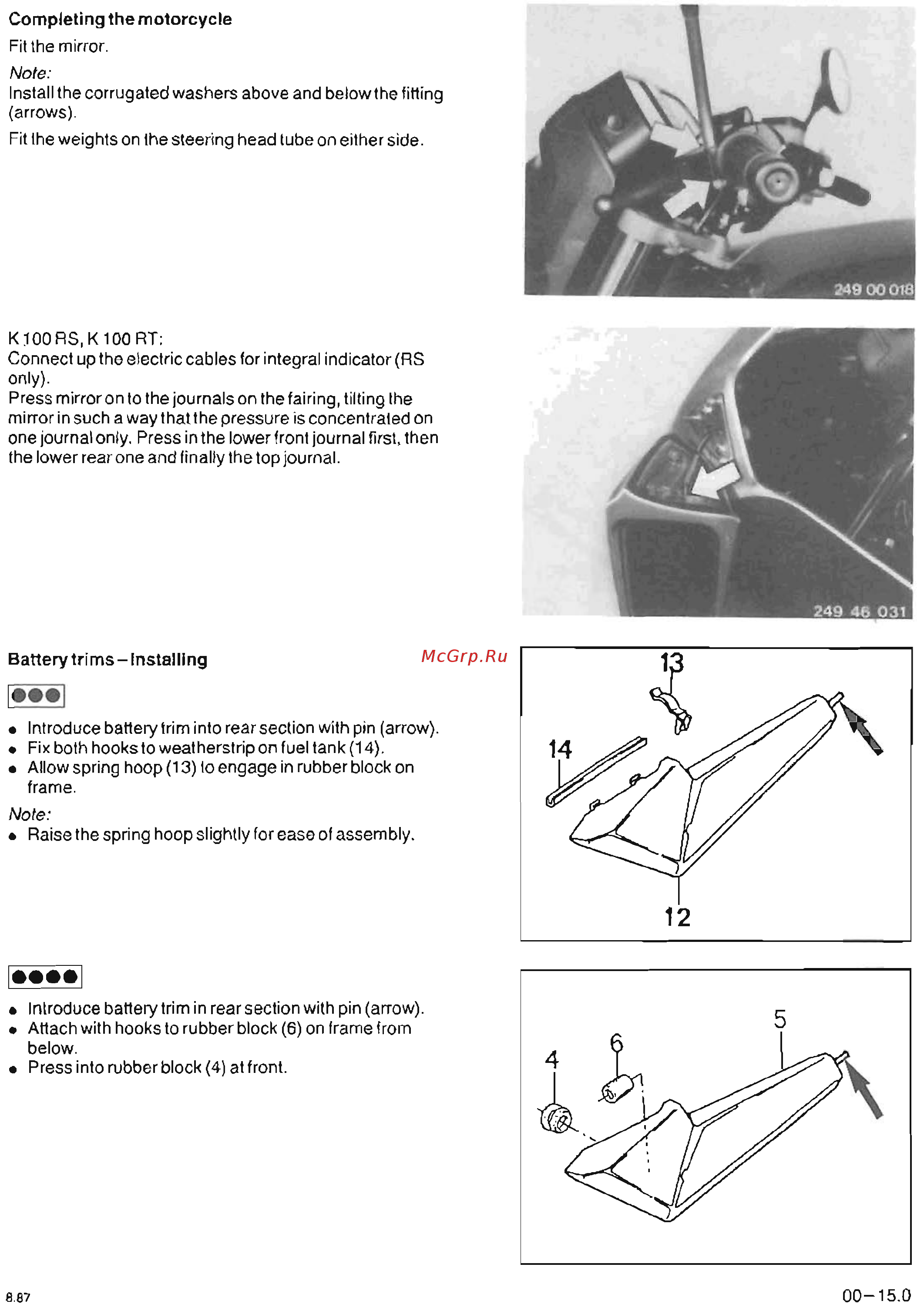

Completing the motorcycle
Fit the mirror.
Note:
Install the corrugated washers above and below the fitting
(arrows).
Fit the weights on the steering head tube on either side.
K
JOO
RS, K 100 RT:
Connect up the electric cables for integral indicator (RS
only).
Press mirror on to the journals on the fairing, tilting the
mirror in such a
way
that the pressure is concentrated on
one journal only. Press in the l
owerfront
journal first, then
the lower rear one and finally the top journal.
Battery trims - installing
1
•••
1
• Introduce battery trim into rear section with pin (arrow).
• Fix both hooks to weatherstrip on fuel tank (14).
• Allow spring hoop (13) to engage in rubber block on
frame.
Note:
• Raise the spring hoop slightly for ease of assembly.
[eü-.]
• Introduce battery trim in rear section with pin (arrow).
• Attach with hooks to rubber block (6) on frame from
below.
• Press into rubber block (4)
at
front.
8.87
12
00-15.0
by a kind approval of the BMW AG for
www. flyingbrick . de
