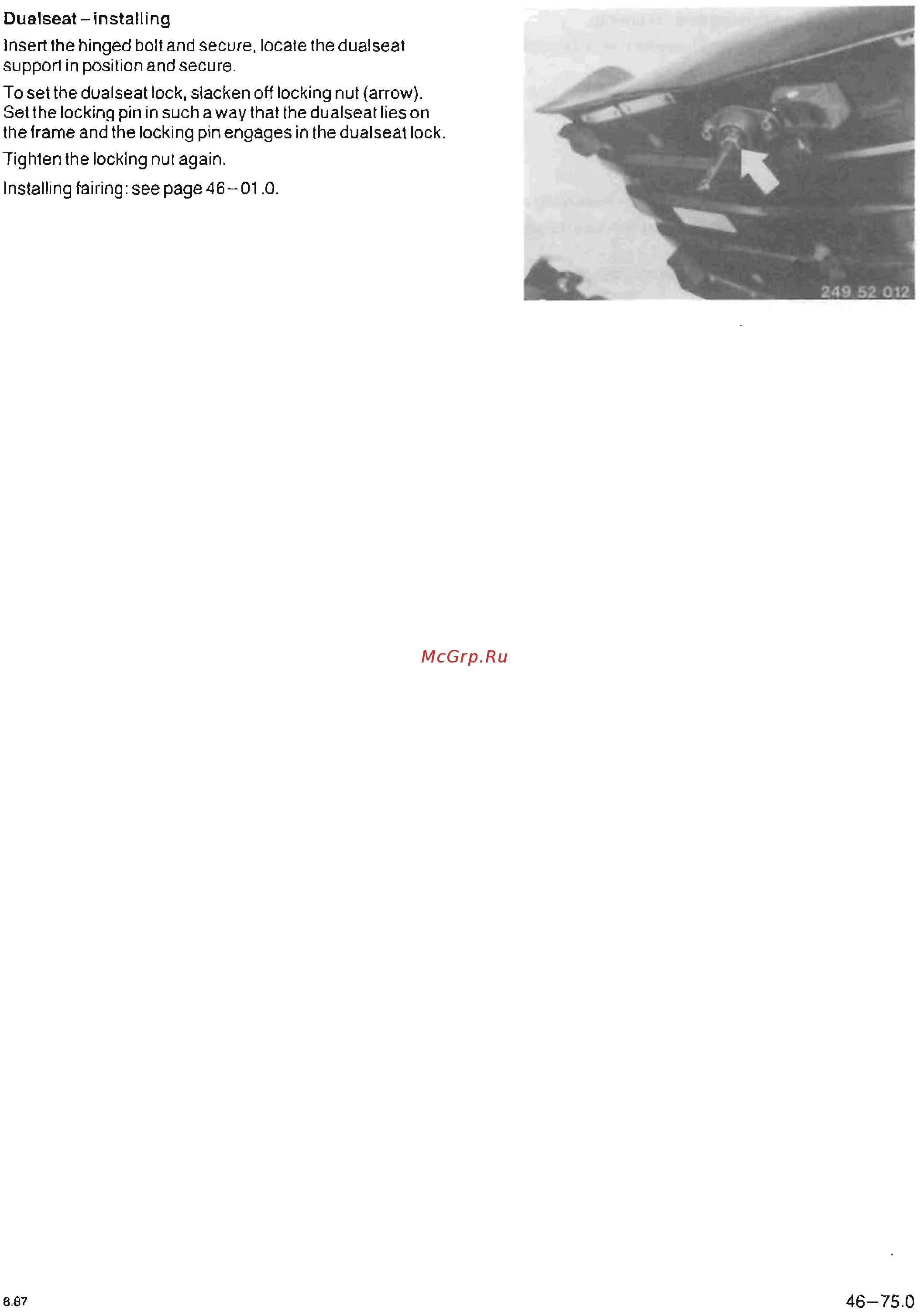

Dualseat - installing
Insert the hinged bolt and secure, locate the dualseat
support in position and secure.
To
setthe
dualseat lock, slacken off locking nut (arrow).
Setthe
locking pin in such a
way
thatthe
dualseat lies on
the frame and the locking pin eng ag es in the dualseat lock.
Tighten the locking nut again.
Installing fairing: see page
46
- 01.0.
