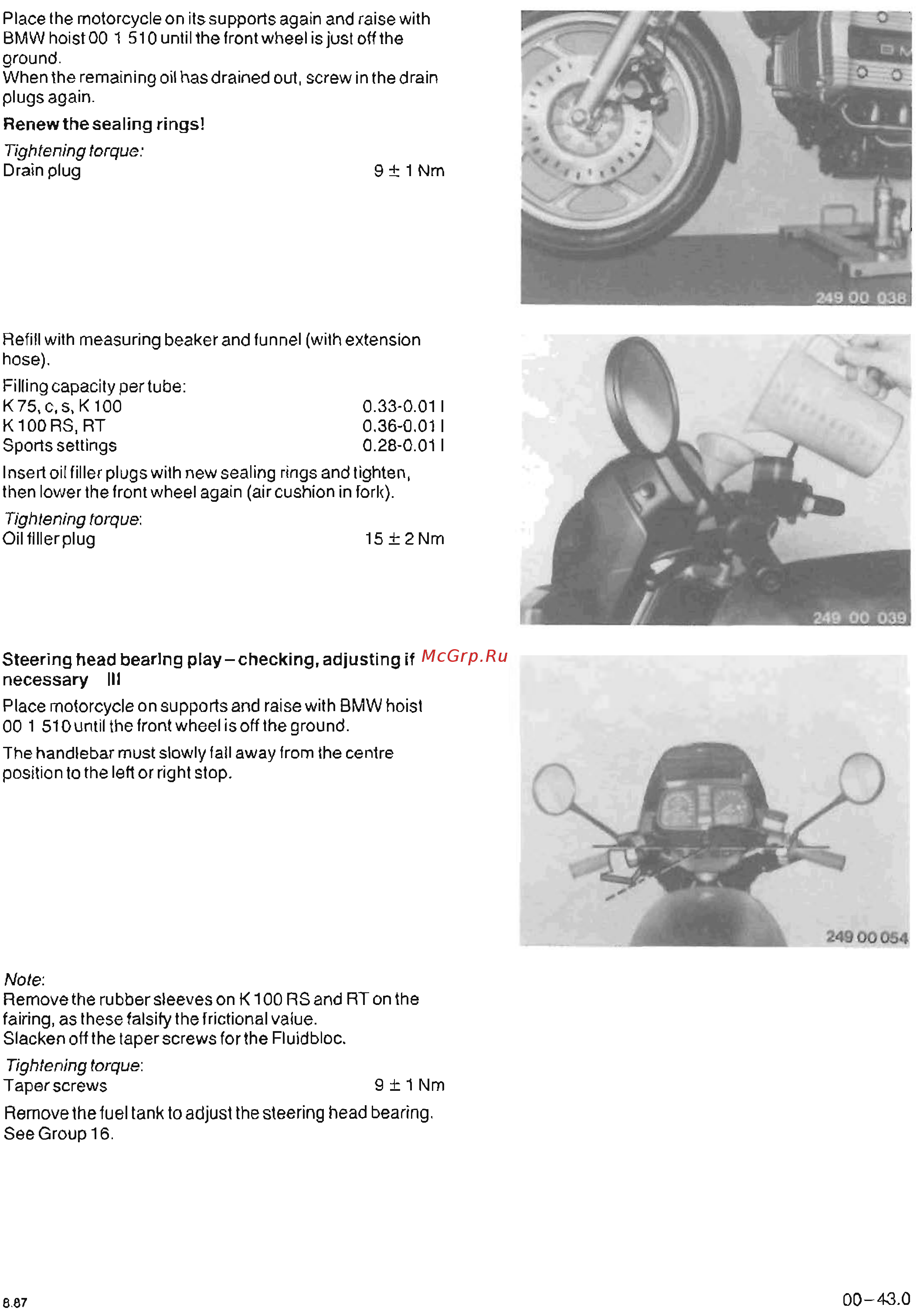

Place the motorcycle on its supports again and raise with
BMW
hoistOO 1 510 until the frontwheel is just
offthe
ground.
When the remaining oil has drained out, screw in the drain
plugs again.
Renewthe sealing
rings!
Tightening torque:
Drain plug
9±1Nm
Refill with measuring beaker and funnel (with extension
hose).
Filling capacity per tube:
K75,
c,
s,
K 100
K100RS,
RT
Sports settings
0.33-0.011
0.36-0.
011
0.28-0.011
Insert oil filler plugs with new sealing rings and tighten,
then
lowerthe
front wheel again (air cushion
in
fork).
Tightening torque:
O
il
filler plug
15 ±
2Nm
Steering head bearing play - checking, adjusting
if
necessary
111
Place motorcycle on supports and raise with BMW hoist
00 1 510 until the frontwheel is
offthe
ground.
The handlebar must slowly fall away from the centre
position to the lelt
or
right stop.
Note:
Remove the rubber sleeves on K 1 00 RS and RT on the
fairing, as these falsify the frictional value.
Slacken off the taper screws for the Fluidbloc.
Tightening torque:
Taperscrews
9 ± 1 Nm
Remove the fuel tank to adju
stthe
steering head bearing.
See Group 16.
8.87
....-....
_
24900054
00- 43.0
