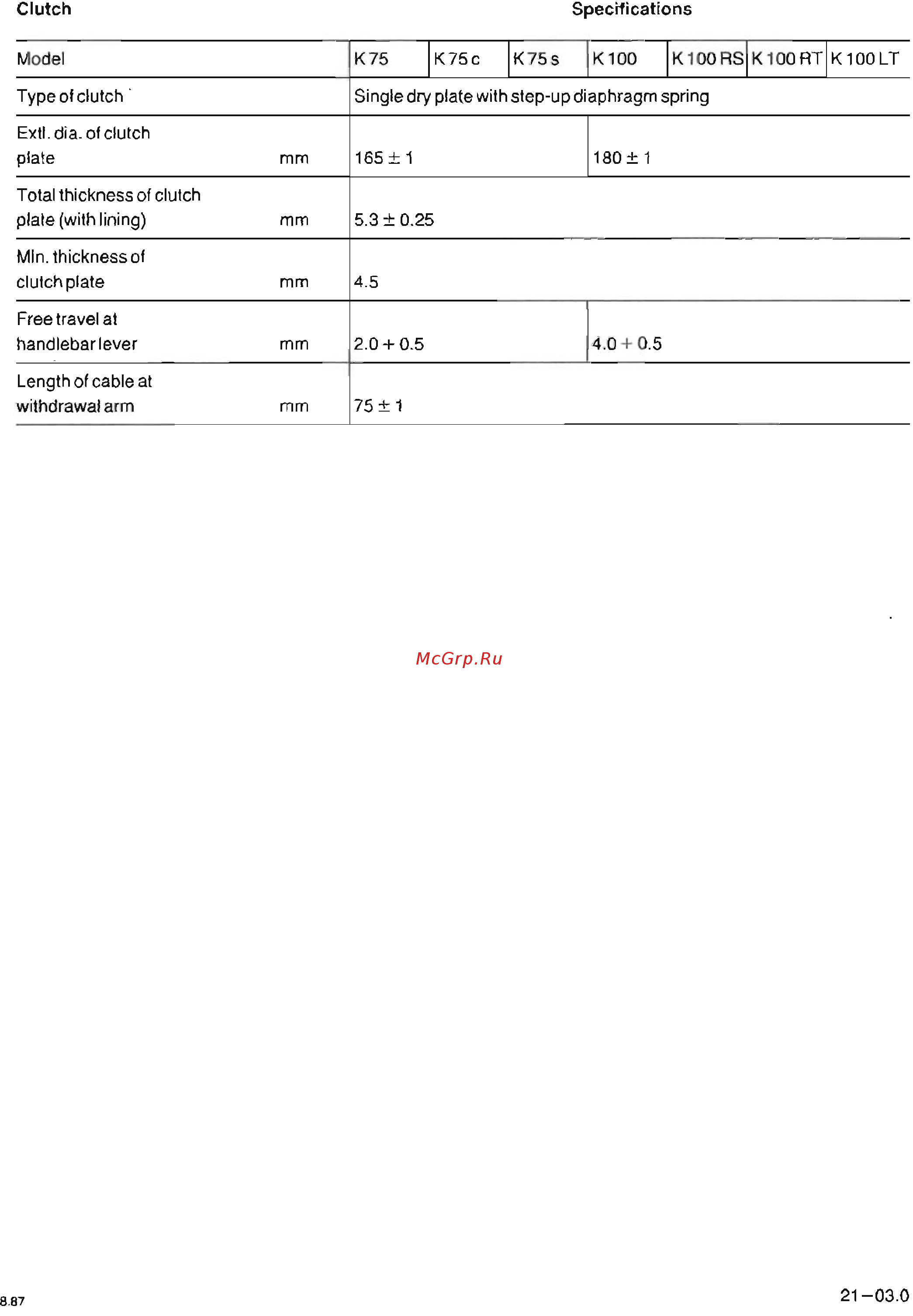

Clutch Specifications
Model
K75
IK75C
IK75S
K100
I K 100
Rsl
K 100
RTIK
100
LT
Type
of clutch .
Single dry plate with step-up diaphragm spring
Extl. dia. of clutch
plate
mm
165 ± 1 180 ± 1
Total thickness of clutch
plate (with lining)
mm
5.3 ± 0.25
Min. thickness
of
cl utch plate
mm
4.5
Free travel at
handlebar lever
mm
2.0 + 0.5
4.0
+ 0.5
Length
01
cable at
withdrawal arm
mm
75 ± 1
-
----
--
-_
.
_-------
B.B7
21
- 03.0
