![Lowara NSCF 300-450/3150/W45 VDC4 [101/204] E nsc series operating characteristics at 50 hz 4 poles](/img/pdf.png)
Lowara NSCF 300-450/3150/W45 VDC4 [101/204] E nsc series operating characteristics at 50 hz 4 poles
![Lowara NSCF 250-500/3150/W45 VDC4 [101/204] E nsc series operating characteristics at 50 hz 4 poles](/views2/1622664/page101/bg65.png)
101
e-NSC SERIES

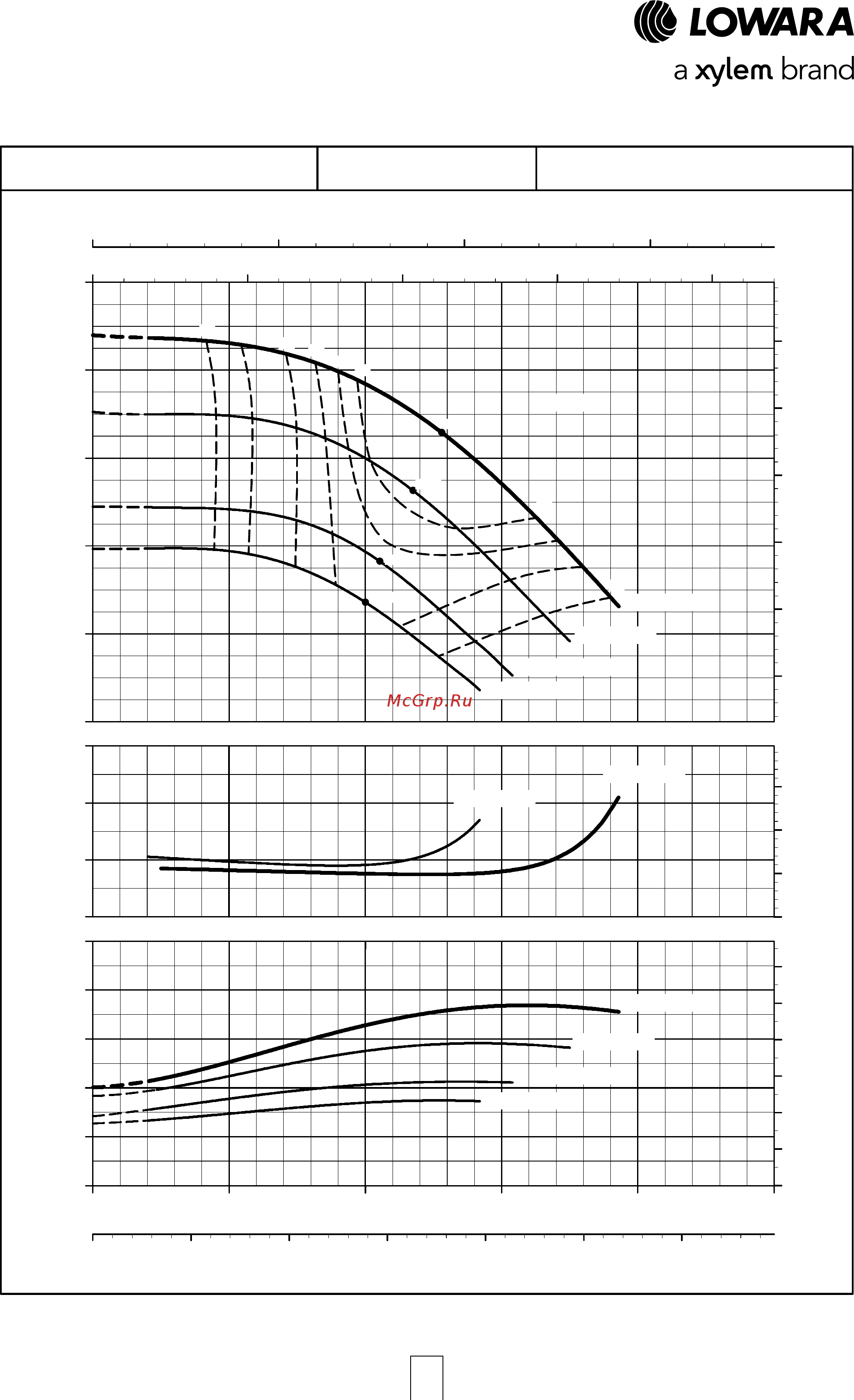

OPERATING CHARACTERISTICS AT 50 Hz, 4 POLES
The NPSH values are laboratory values; for practical use we suggest increasing these values by 0,5 m.
These performances are valid for liquids with density ρ = 1,0 Kg/dm
3
and kinematic viscosity ν = 1 mm
2
/sec.
0 50 100 150 200 250
P
P
[kW]
0
1
2
3
4
5
0 10 20 30 40 50 60
P
P
[HP]
0
1
2
3
4
5
6
NPSH [m]
0
2
4
6
NPSH [ft]
0
5
10
15
Q [m³/h]
Q [l/s]
H [m]
2
4
6
8
10
12
0 250 500 750 1000
H [ft]
10
15
20
25
30
35
0 250 500 750
Q [US gpm]
Q [Imp gpm]
83.6
81.5
77.4
78
78
80
75
70
60
50
η
ηη
η
[%]
80
75
70
75.9
100-160/40
100-160/30
100-160/22
100-160/22A
100-160/22A
100-160/40
100-160/40
100-160/30
100-160/22
100-160/22A
~ 1450 [rpm]
ISO 9906:2012 - Grade 3B
NSC 100-160
NSC100-160_4P50_B_CH
