![Lowara NSCF 300-450/3150/W45 VDC4 [166/204] Nscc 32 series spacer coupling dimensions and weights at 50 hz 4 poles](/img/pdf.png)
Lowara NSCF 300-450/3150/W45 VDC4 [166/204] Nscc 32 series spacer coupling dimensions and weights at 50 hz 4 poles
![Lowara NSCF 150-400/550/W45 VCC4 [166/204] Nscc 32 series spacer coupling dimensions and weights at 50 hz 4 poles](/views2/1622664/page166/bga6.png)
166

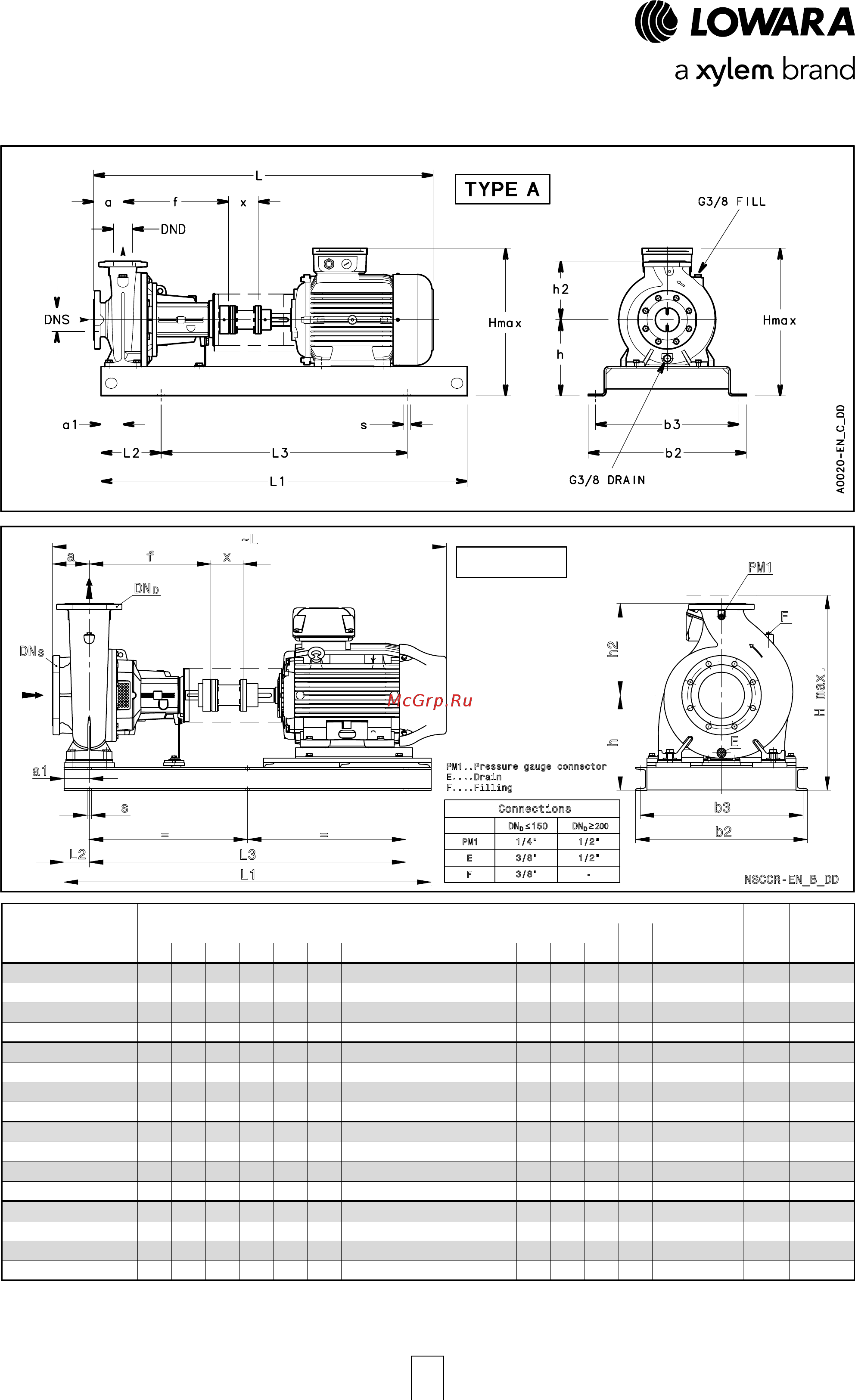

NSCC 32 SERIES (SPACER COUPLING)
DIMENSIONS AND WEIGHTS AT 50 Hz, 4 POLES
Connections
PM1
1/4" 1/2"
E
3/8" 1/2"
F
3/8"
-
DN
D
150
DN
D
200
PM1
F
E
DN
DN
S
D
PM1..Pressure gauge connector
E....Drain
F....Filling
NSCCR-EN_B_DD
a
f x
~L
= =
L1
b3
b2
H max.
h h2
s
L2
L3
a1
TYPE B
NOTE: Pumps with flanges according to EN 1092-2 as standard.
Nscc32_4p50-en_c_td
Available ASME B16.5 version on request. For flanges dimensions see drawing.
