Lowara NSCF 300-450/3150/W45 VDC4 [38/204] E nsc series hydraulic performance range at 50 hz 2 poles

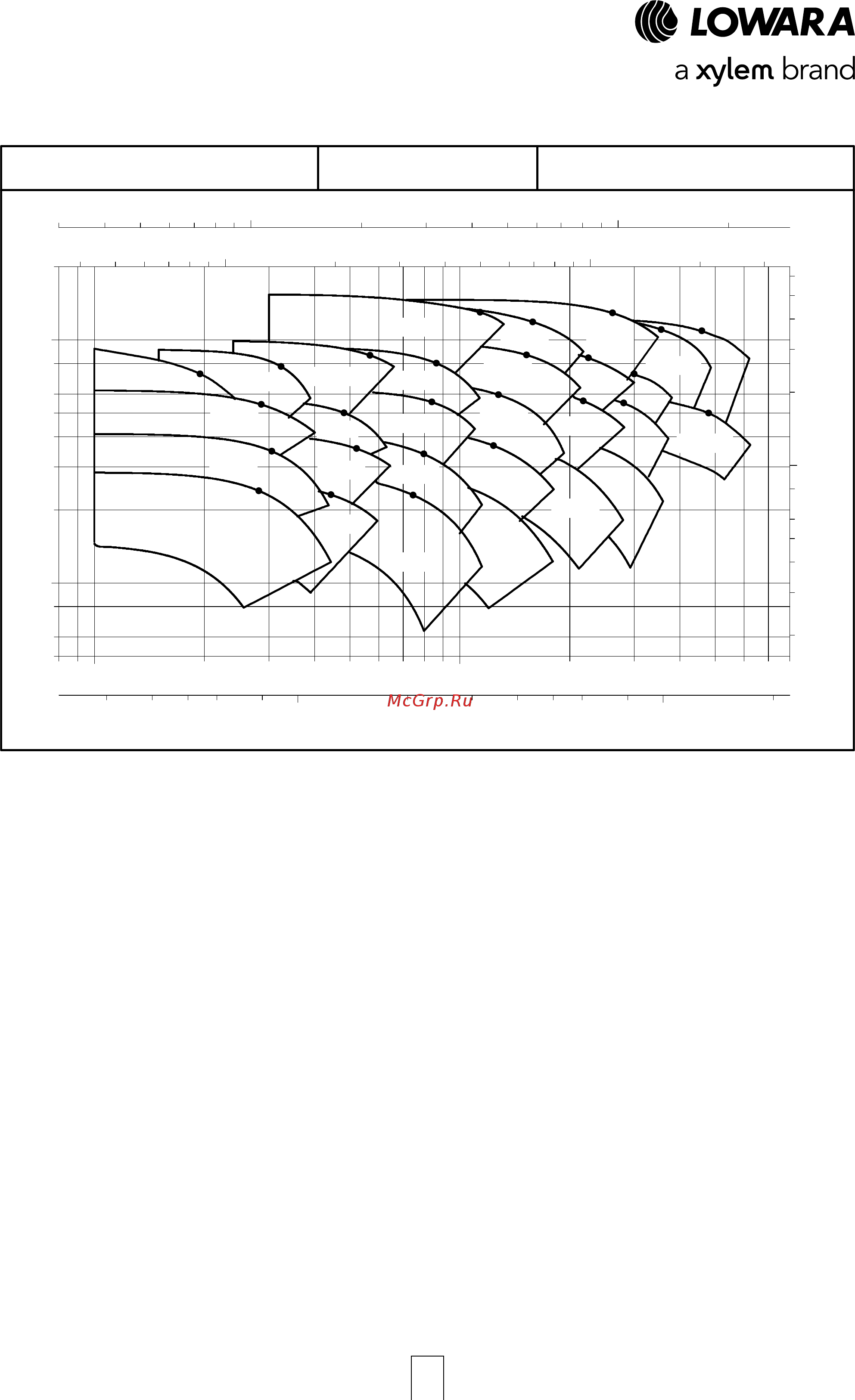

e-NSC SERIES

HYDRAULIC PERFORMANCE RANGE AT 50 Hz, 2 POLES

Q [US gpm]

40 50 60 70 80 90 200 300 400 500 600 700 800 900 2000 3000100 1000

H [ft]

200

300

400

500

600

100

Q [l/s]

3 4 5 6 8 20 30 40 50 60 80 20010 100

H [m]

200

100

Q [Imp gpm]

30 40 50 60 70 80 90 200 300 400 500 600 700 800 900 2000100 1000

Q [m

/h]

8 9 20 30 40 50 60 70 80 90 200 300 400 500 600 700 80010 100

125-200

NSC ∼ 2900 [rpm] ISO 9906:2012 - Grade 3B

A0003_C_CH

80-316

50-315

100-316

32-125

32-160

32-200

32-250

40-160

40-250

50-250

50-200

50-160

50-125

65-125

65-160

65-200

80-160

80-200

100-

160

80-

250

100-

250

100-

200

125-

315

NSC2 32-250

65-250

1000

65-315

40-125

40-200

Содержание

E nsc series 1
Erp 2009 125 ec 1
Ecodesign directive erp 2
Contents 3
E nsc series hydraulic performance range at 50 hz 2 poles 4
Hydraulic performance range at 50 hz 4 poles 4
Nsc 1450 rpm iso 9906 2012 grade 3b 4
Nsc 2900 rpm iso 9906 2012 grade 3b 4
E nsc series general introduction 5
E nsc series for commercial building services cbs applications benefits 6
E nsc series for industry applications benefits 7
E nsc series identification code 8
N s c f 1 5 0 4 0 0 1 1 0 0 a w 4 5 v c c 4 8
E nsc series rating plate 9
Legend 9
Pump only nsc electric pump 9
E nsc series 10
List of models at 50 hz 2 poles 10
E nsc series 11
Elenco modelli serie nsc a 50 hz elenco modelli serie nsc a 50 hz elenco modelli serie nsc a 50 hz elenco modelli serie nsc a 50 hz 2 poli 2 poli 2 poli 2 poli 11
List of models at 50 hz 2 poles 11
E nsc series 12
List of models at 50 hz 4 poles 12
E nsc series 13
List of models at 50 hz 4 poles 13
Material nsce material nsce material nsce material nsce 14
Nsce series electric pump cross section and main components 14
Nsc2 series electric pump cross section and main components 15
Material nscs 32 80 16
Nscs series electric pump cross section and main components 16
Material nscs 17
Nscs series electric pump cross section and main components 17
Material nscs 32 80 18
Nsc nscf nscc series electric pump cross section and main components 18
Material nsc nscf nscc frame size 32 and 42 19
Nsc nscf nscc series electric pump cross section and main components 19
Material nsc nscf nscc frame size 60 20
Nsc nscf nscc series electric pump cross section and main components 20
