![Lowara NSCF 300-450/3150/W45 VDC4 [9/204] Legend](/img/pdf.png)
Lowara NSCF 300-450/3150/W45 VDC4 [9/204] Legend
![Lowara NSCF 200-315/370/W45 VDC4 [9/204] Legend](/views2/1622664/page9/bg9.png)
9
1 13 12 10 9 2 7
19 3 4 6
5
15 14
11
REGULATION (EU) No 547/2012
1 - Electric pump unit type
2 - Electric pump unit code
3 - Flow range
4 - Head range
5 - Nominal or maximum pump power
6 - Speed
7 - Serial number, or
order number + order position number
9 - Full impeller diameter (only filled in for trimmed
impellers)
10 - Trimmed impeller diameter (only filled in for
trimmed impellers)
11 - Minimum operating liquid temperature
12 - Maximum operating liquid temperature
13 - Maximum operating pressure
14 - Hydraulic efficiency in best efficiency point (50 Hz)
15 - Minimum efficiency index MEI, as per Regulation
(EU) No 547/2012 (50 Hz)
19 - Weight
LEGEND
PUMP ONLY (NSC)ELECTRIC PUMP
e-NSC SERIES

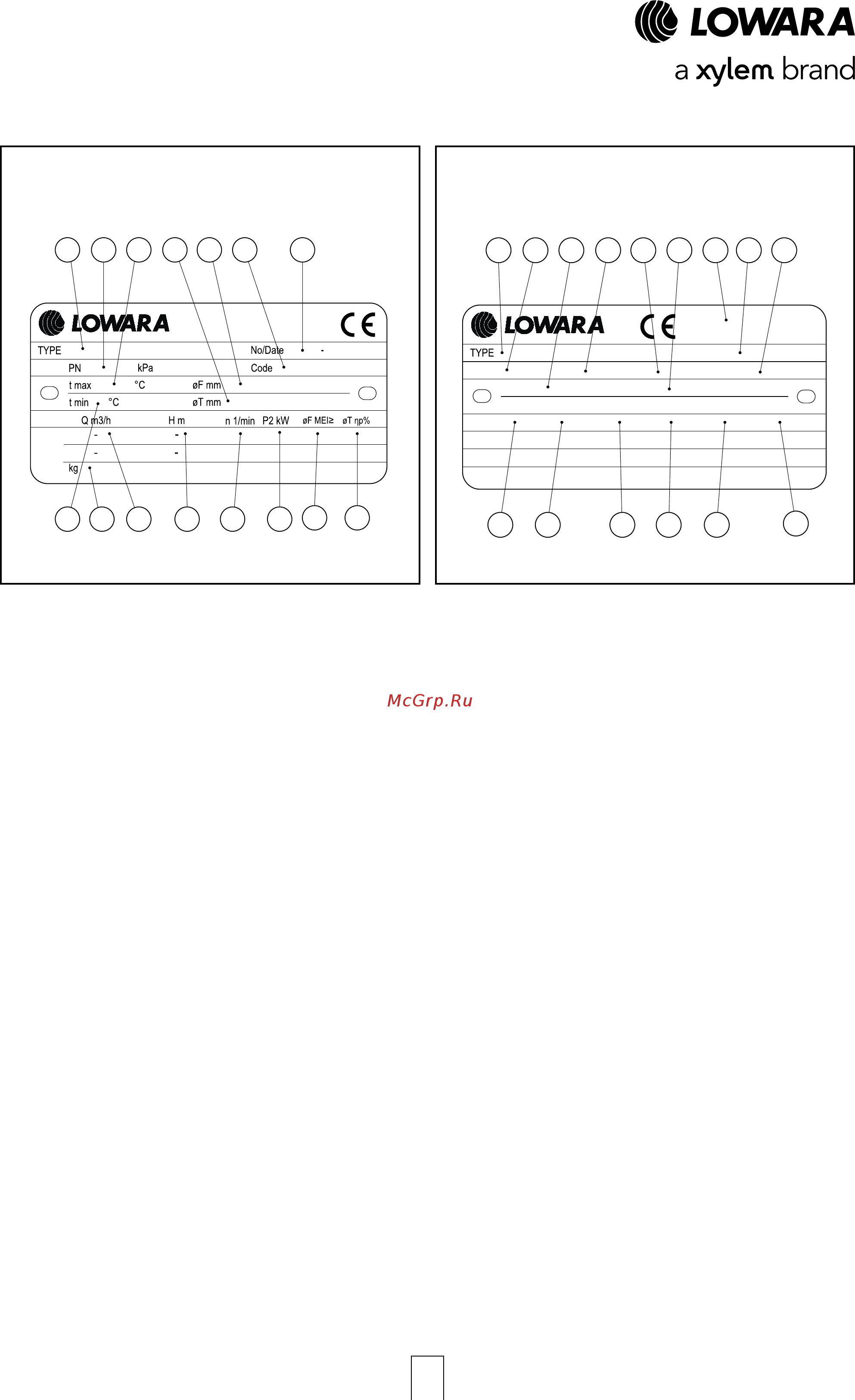

RATING PLATE
Note for electric pump unit: refer to motor data plate for electrical data.
1 - Pump type
2 - Pump code
3 - Flow range
4 - Head range
5 - Maximum absorbed pump power
6 - Speed
7 - Serial number, or
order number + order position number
9 - Full impeller diameter (only filled in for trimmed
impellers)
10 - Trimmed impeller diameter (only filled in for
trimmed impellers)
11 - Minimum operating liquid temperature
12 - Maximum operating liquid temperature
13 - Maximum operating pressure
14 - Hydraulic efficiency in best efficiency point (50 Hz)
15 - Minimum efficiency index MEI, as per Regulation
(EU) No 547/2012 (50 Hz)
19 - Weight
Q m3/h Pmax kW
1 13 9 12 11 10 2
4 6 5
15
14
REGULATION (EU) No 547/2012
3
No/Date
Code
PN kPa
t max
°C t min
°C
kg
Ø
F mm
H m
Ø
T mm
n 1/min
Ø
F MEI≥
Ø
T np%
7 19
LEGEND
