e-NSC SERIES
GENERAL INTRODUCTION
The new e-NSC series is the result of the close collaboration between our customers and us; the new range has been
redesigned and improved to meet the Commercial Building Services (CBS) requirements, in terms of performances
and energy saving.
In addition the new e-NSC series can be customized to meet the needs of the Industry segment, keeping the quality
in the production and the continuous reliability and robustness in the operation.
Pump design
The new e-NSC series is a centrifugal end-suction electro-pump with single-stage (except the two-stage NSC2
models), axial flanged suction port, radial flanged discharge and horizontal shaft. The e-NSC pumps have cast iron
casing and impeller as standard but are also available in a wide range of materials, from bronze to duplex stainless
steel, to allow for various pumping needs.
The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a
back pull-out configuration (impeller, adapter, and motor can be extracted without disconnecting the pump body
from the piping system).
The e-NSC series pumps are available in the following constructions:
Hydraulic specifications
• Maximum delivery: up to 640 m
3
/h for 2 poles range.
up to 1900 m
3
/h for 4 poles range.
• Maximum head: up to 154 m for 2 poles range.
up to 100 m for 4 poles range.
• Hydraulic performance compliant with ISO 9906:2012
(Grade 3B).
• Fluid temperature range:
- standard version (with mechanical seal BQ1EGG-WA
and EPDM gasket) -25 to +120 °C.
- versions on request (depending on mechanical seal
and gasket) -20* or -25 to +120 or +140 °C.
• Maximum operating pressure:
- standard version with mechanical seal BQ1EGG-WA
and cast iron casing: 16 bar @ 90 °C and 10 bar @ 120 °C
- version with other mechanical seal and casing of
cast iron: 16 bar @ 120 °C and 14,9 bar @ 140 °C
cast ductile iron: 16 bar @ 120 °C and 15,6 bar @ 140 °C
stainless steel: 16 bar @ 50 °C and 14,8 bar @ 140 °C
duplex: 16 bar @ 140 °C
- NSC2 models with mechanical seal BQ1EGG-WA and cast
iron casing: 12 bar @ 110 °C and 10 bar @ 120 °C
- see pages 21 to 23 for more information.
* Fluoro-elastomer: FPM (old ISO), FKM (ASTM & new ISO).
• Connection dimensions according to EN 733 for
models 32-125/200, 40-125/250, 50-125/250,
65-125/315, 80-160/315, 100-200/400,
125-250/400,150-315/400
Motor specifications
• Squirrel cage in short circuit enclosed construction
with external ventilation (TEFC).
• 2-pole and 4-pole ranges.
• IP55 protection degree as motor (EN 60034-5), IPX5
as electro-pump (EN 60529).
• Performances according to EN 60034-1.
• IE3 efficiency level (three-phase 0,75 to 375 kW).
• 155 (F) insulation class.
• Standard voltage:
1 x 220-240 V 50 Hz for power up to 2,2 kW
3 x 220-240/380-415 V 50 Hz for power up to 3 kW
3 x 380-415/660-690 V 50 Hz for power above 3 kW
• Maximum ambient temperature: 40 °C.
Note
• Anti-clockwise rotation when facing pump’s suction port.
• Pump does not include counter-flanges.
Extended shaft

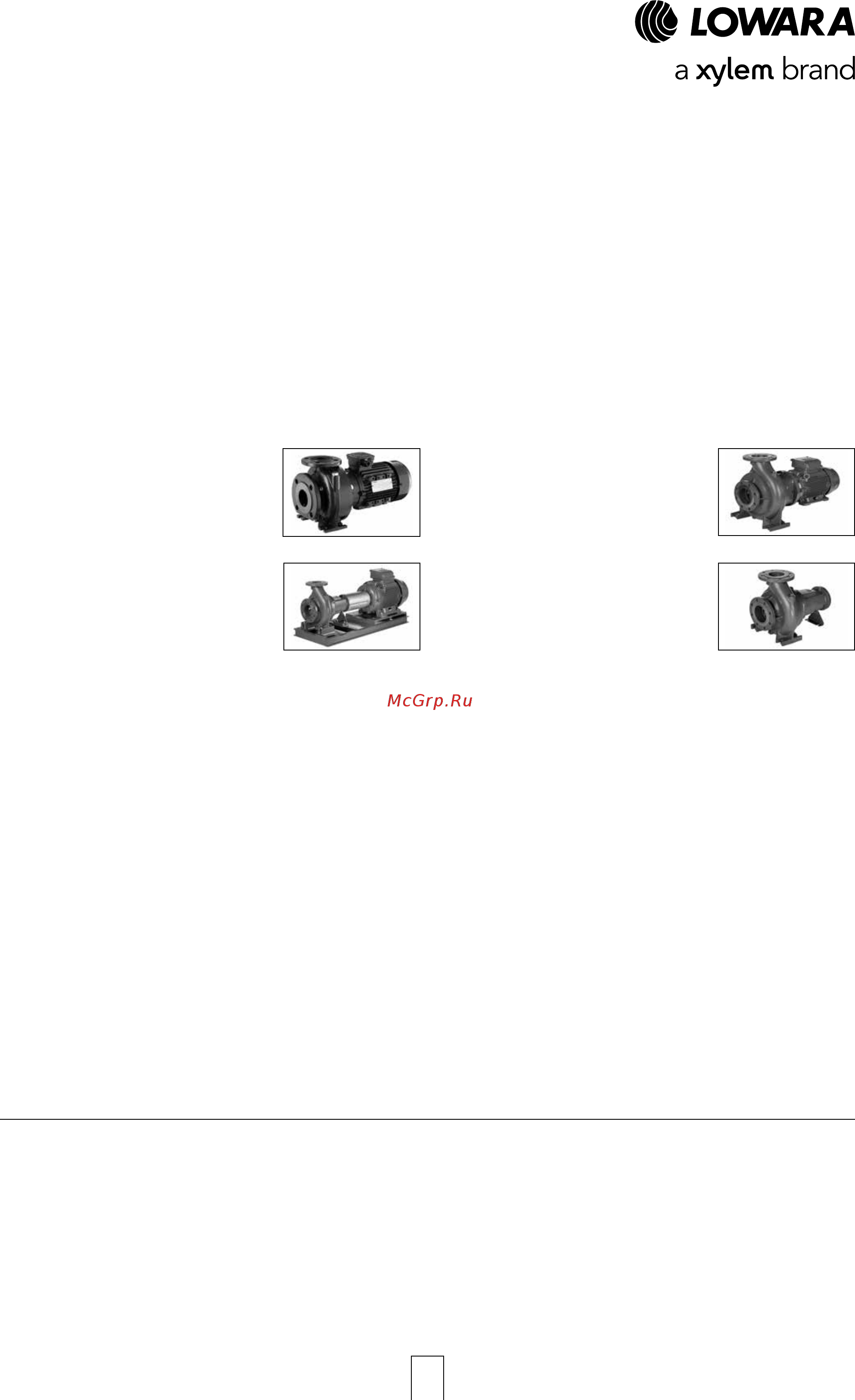

Close-coupled by means of an adaptor
bracket with an impeller keyed directly
to the special motor shaft extension.
Frame mounted
Flexible-coupled with bracket, support,
flexing coupling (special version with
spacer on demand), aligning and an-
choring base.
Stub shaft
Rigid-coupled with a bracket, an adap-
tor and a rigid coupling keyed to the
standard motor shaft extension.
Bare shaft pump
Version without driver suitable to
be coupled with a standard electric
motor.
List of the Directives
- Machinery Directive MD 2006/42/EC
- Electromagnetic Compatibility Directive EMCD 2004/108/EC
- Ecodesign requirements for energy-related products
ErP 2009/125/EC, Regulation (EC) No 640/2009, Regulation
(EU) No 4/2014, Regulation (EU) No 547/2012
and the main technical norms
EN 809, EN 60204-1 (safety)
EN 1092-2 (cast and ductile iron flanges)
EN 1092-1 (stainless steel and duplex flanges)
EN 61000-6-1, EN 61000-6-3
EN 60034-30:2009, EN 60034-30-1:2014
(electric motors)
