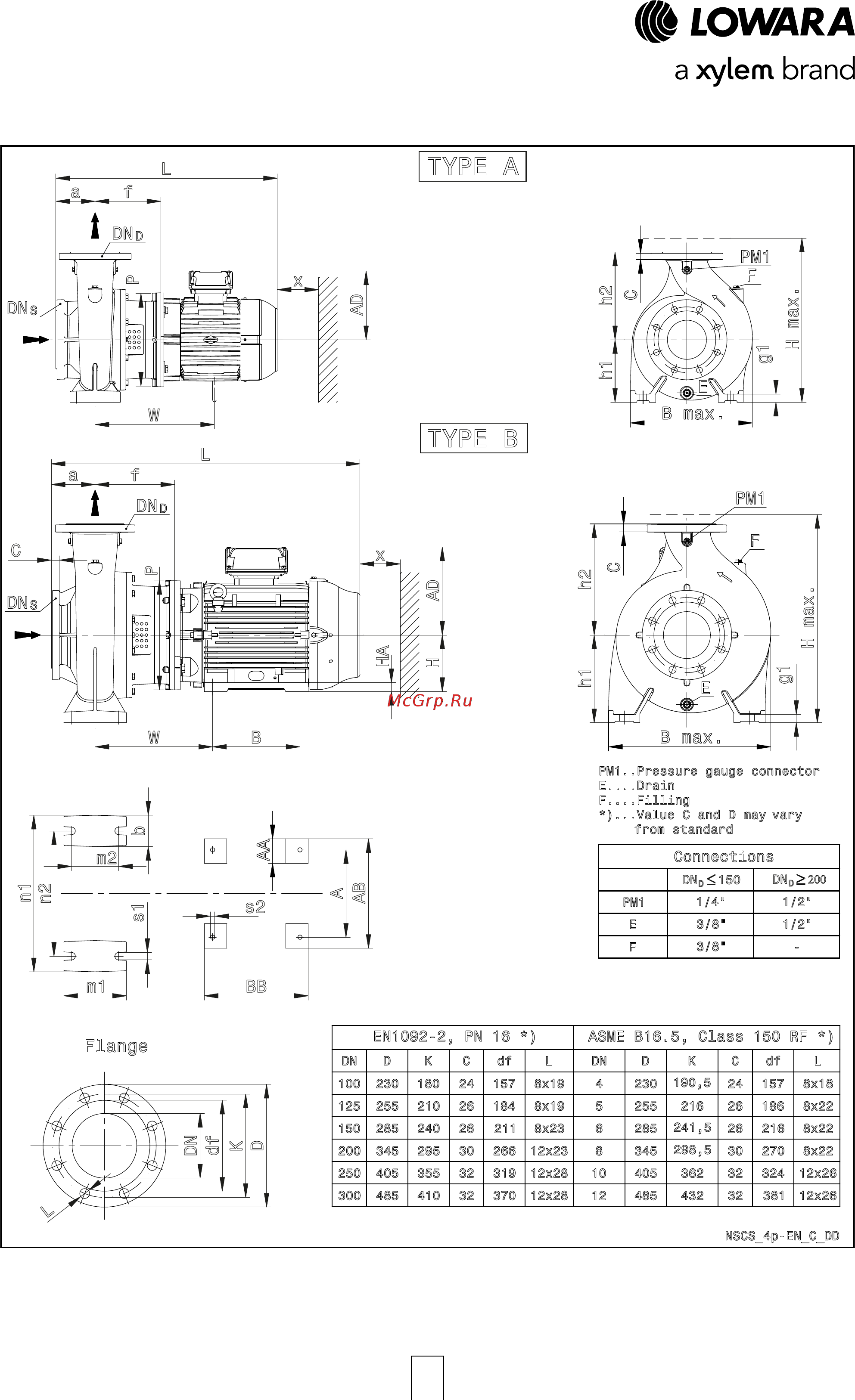

NSCS 100, 125, 150, 200, 250 SERIES

DIMENSIONS AND WEIGHTS AT 50 Hz, 4 POLES

W B

H max.

h1 h2

H max.

Connections

PM1

1/4" 1/2"

3/8" 1/2"

3/8"

EN1092-2, PN 16 *)

ASME B16.5, Class 150 RF *)

DN D K

L DN D K

100 230 180

157 8x19

230

190,5

157 8x18

125 255 210 26 184 8x19

255 216 26 186 8x22

150 285 240 26

211

8x23 6 285

241,5

26 216 8x22

200 345 295 30 266 12x23 8 345

298,5

30 270 8x22

250 405 355 32 319 12x28 10 405 362 32 324 12x26

300 485 410 32 370 12x28

485 432 32 381 12x26

Flange

PM1..Pressure gauge connector

E....Drain

F....Filling

*)...Value C and D may vary

from standard

TYPE B

NSCS_4p-EN_C_DD

B max.

150

200

TYPE A

PM1
