16
NSCS SERIES

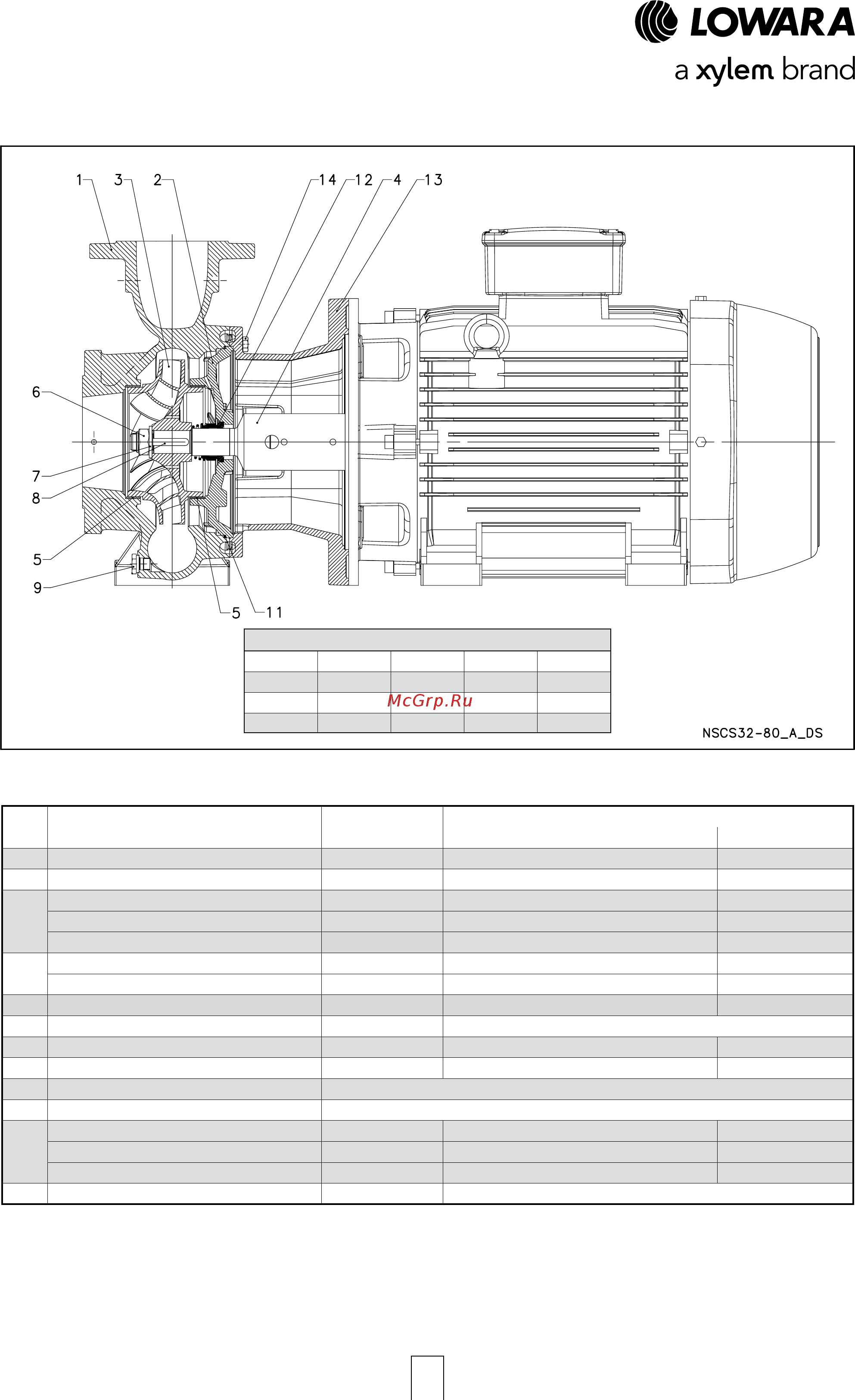

ELECTRIC PUMP CROSS-SECTION AND MAIN COMPONENTS
PUMP SIZE
32-125 40-125 50-125 65-125 80-160
32-160 40-160 50-160 65-160 80-200
32-200 40-200 50-200 65-200 80-250
32-250 40-250 50-250 65-250
MATERIAL NSCS 32-80
REF. PART MATERIAL
N. EUROPE USA
1
Volute casing Cast iron EN 1561 - GJL-250 (JL1040) ASTM Class 35
2
Casing cover Cast iron EN 1561 - GJL-250 (JL1040) ASTM Class 35
Impeller (32, 40, 50) Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
Impeller (65, 80) Cast iron EN 1561 - GJL-200 (JL1030) ASTM Class 30
Impeller (65, 80) Bronze EN 1982 - CuSn10-C (CC480K) UNS C90700
Stub shaft Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
Stub shaft
(65-250, 80-200, 80-250) Stainless steel EN 10088-1-X17CrNi16-2 (1.4057) AISI 431
5
Wear ring Stainless steel EN 10088-X5CrNi18-10 (1.4301) AISI 304
6
Impeller lock nut and washer Stainless steel EN 10088-1-X5CrNiMo17-12-2 (1.4401) AISI 316
8
Impeller key Stainless steel EN 10088-1-X2CrNiMo17-12-2 (1.4404) AISI 316L
9
Fill and drain plugs Nickel-plated brass EN 12164-CuZn39Pb3 (CW614N) -
11
O-Ring EPDM (standard version)
12
Mechanical seal Carbon / Silicon carbide / EPDM (standard version)
Adapter * Aluminium EN 1706-AC-AlSi11Cu2 (Fe) (AC46100) -
Adapter Cast iron EN 1561 - GJL-250 (JL1040) ASTM Class 35
Motor adapter Cast iron EN 1561 - GJL-250 (JL1040) ASTM Class 35
14
Volute casing fastening bolts and screws Galvanized steel
* 2/4 pole: 32/40/50-125, 32/40-160 Nscs32-80-en_a_tm
REFERENCE STANDARDS
3
4
13
