ESIE06-05 Functional Control for a Standalone Unit
Part 2 – Functional Description 2–109
3
2
4
5
1
Inlet control for
cooling mode

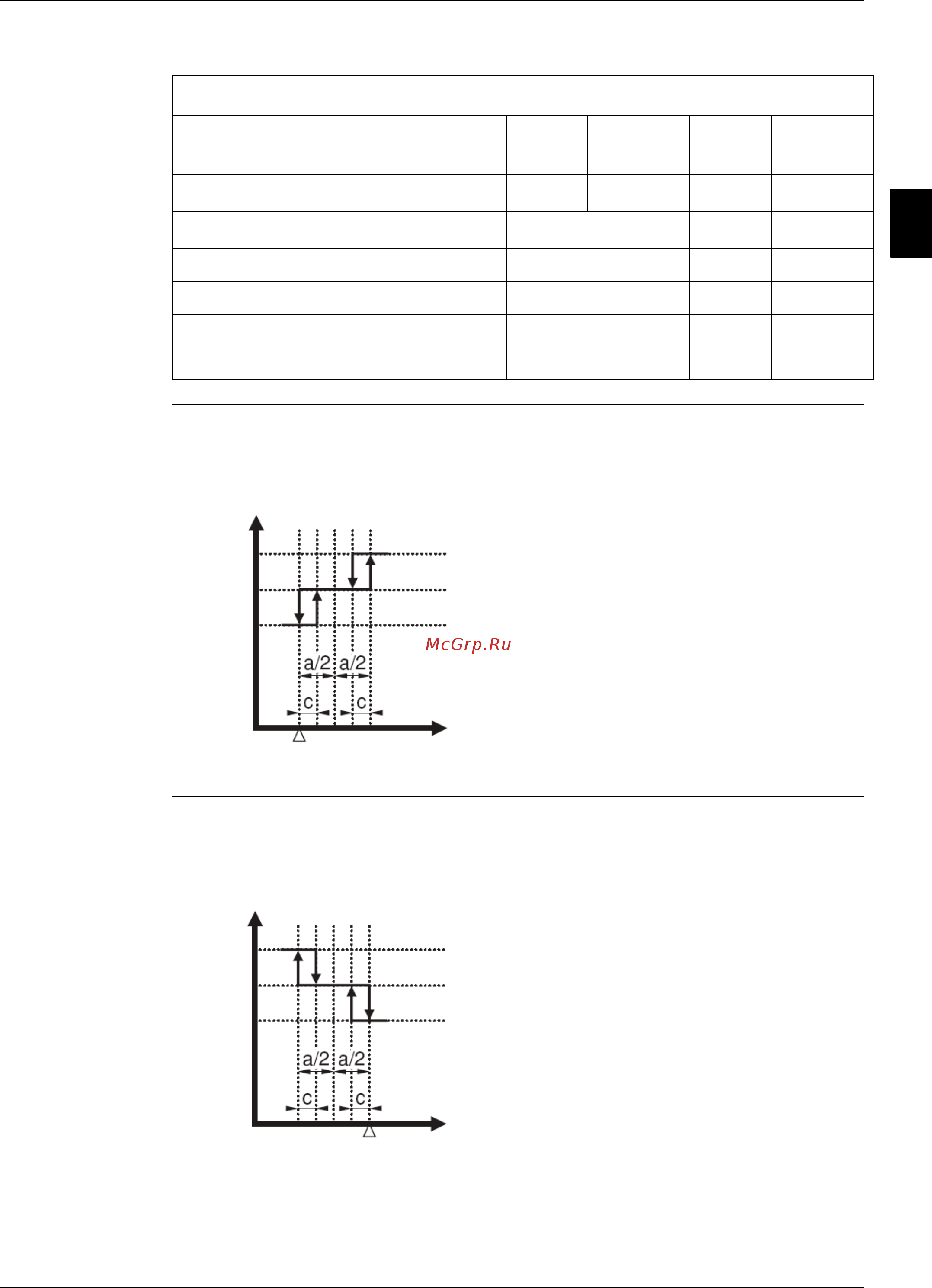

The illustration below shows the thermostat inlet control in cooling mode.
Inlet Control for the
Heating Mode
The illustration below shows the thermostat inlet control in heating mode.
Default value
OUTLET CONTROL
Units 1
circuit
Units 2
circuit
Lower
Limit
Upper
Limit
Step difference - a (K)
4.0
(*)
2.0
(*) ______ ______
Steplength - c (K)
0.2
(*) _______
______
Loadup timer (sec) 30 15 300
Loaddown timer (sec) 15 15 300
Setpoint cooling (°C) 7.0 5.0 20.0
Setpoint heating (°C) 45.0 25.0 50.0
Compressor Request
Inlet water temerature evaporator (°C)
Setpoint (°C)
>Load up request of 1 compressor
>Load down request of 1 compressor
>No action
Compressor Request
>Load up request of 1 compressor
>Load down request of 1 compressor
Inlet water temerature condenser (°C)
>No action
Setpoint (°C)
