Daikin EWYQ130DAYN [353/524] High pressure setback
![Daikin EWYQ150DAYN [353/524] High pressure setback](/views2/1657857/page353/bg161.png)
ESIE06-05 Functional Control for a Standalone Unit
Part 2 – Functional Description 2–127
3
2
4
5
1

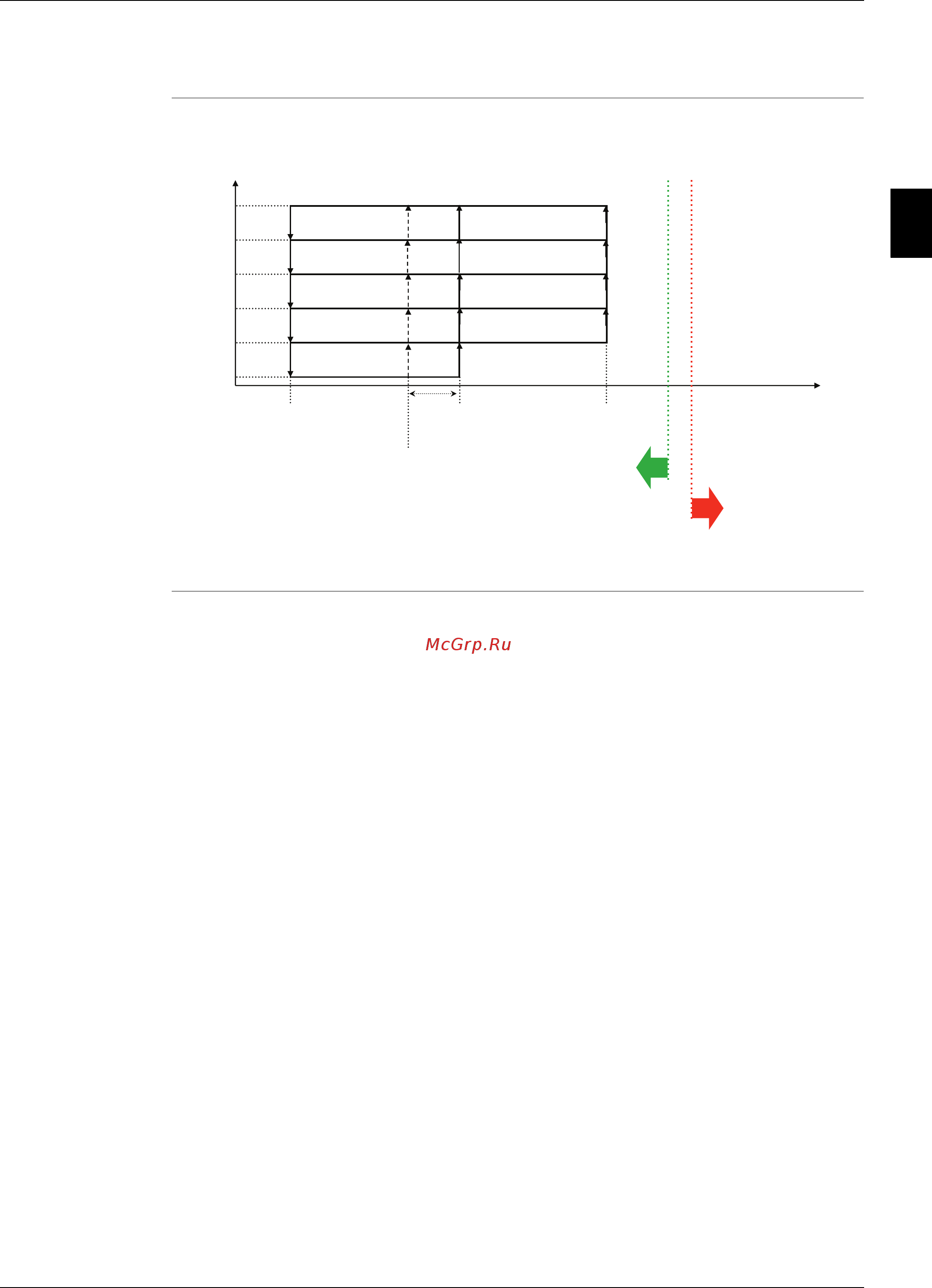

3.7.1 High pressure setback
Description This is a safety prevention function, when high pressure is near to the high pressure switch setpoint.
The unit will load-down one compressor to prevent that the unit trips on high pressure switch.
Fanstep
100%
95%
Step
Down
Step
Up
30%
20%
A: 18,9 bar B2:27,7bar
B2 (50%):
24,9 bar
2,6bar
B3: 35 bar
…
…
High pressure
HP Switch
Level 40,5 Bar
HP Setback 37,4b
(1 compr. Switched off)
HP Setback reset 37b
(possible to add compr.)
