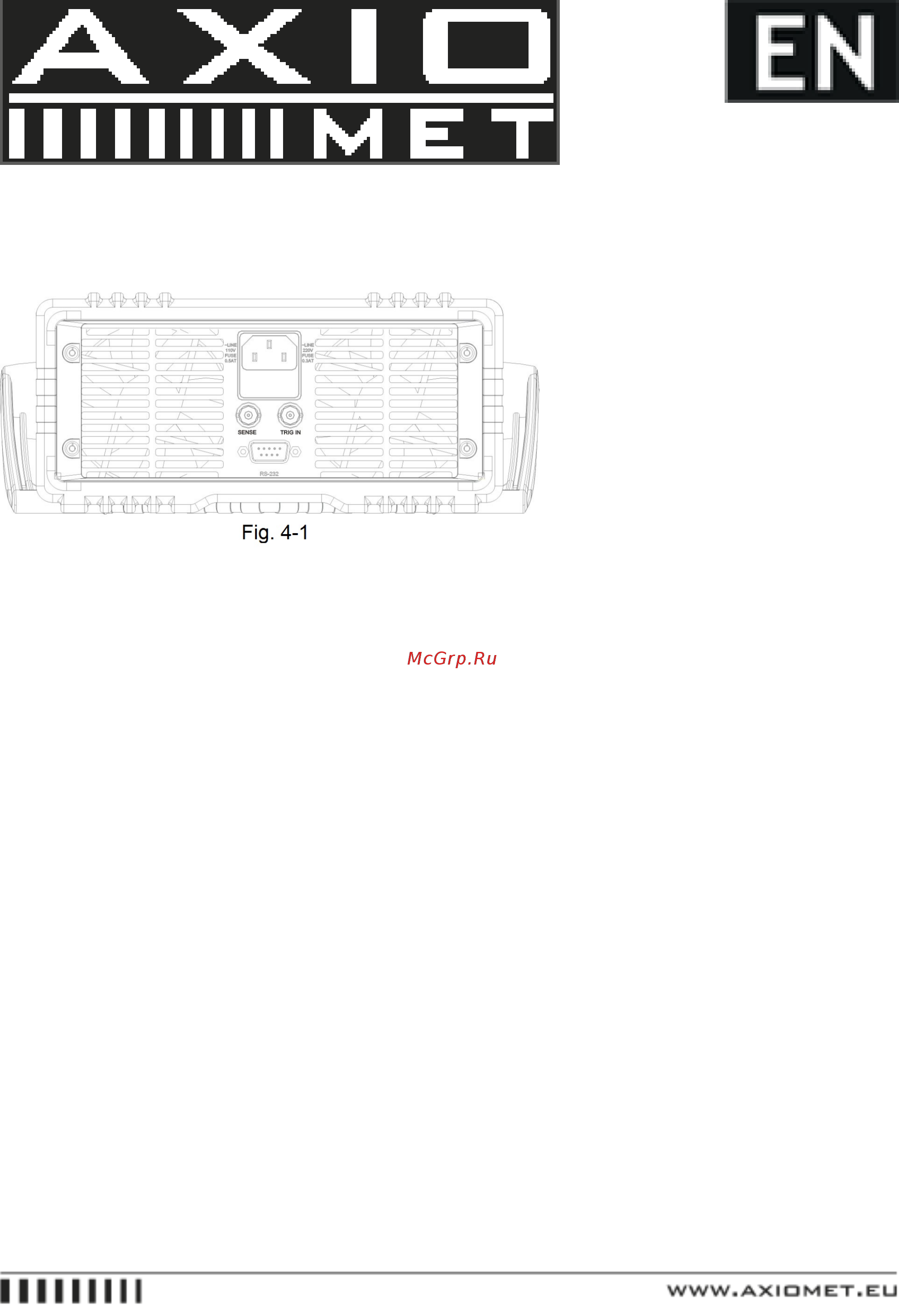

AC Input:

AC power-line cord must be appropriate for your local standard.

The specifications of the fuse: 110V: 250V 500mA; 220V: 250V 300mA;.

Line voltage switch can switch the voltage from 110V to 220V. The selected voltage should be in accordance

with the proper voltage in your local place.

RS-232 Interface:

The load provides a RS-232 interface, which is a standard DB9 pin connector. The pin assignment is shown

as below:

Pin /// Input/Output /// Description

1 /// - /// Not used

2 /// Input /// RXD: Receive data

3 /// Output /// TXD: Transmit data

4 /// - /// Not used

5 /// Common /// GND: Ground

6 /// - /// Not used

7 /// - /// Not used

8 /// - /// Not used

9 /// - /// Not used

The interface parameters can be set in the Menu, you can use SCPI language for programming to realize

the communication with the load.

TRIGGER Connections:

The external trigger input terminal on the rear panel is a BNC connector, in which the middle part is the

input+, and the outer casing is the input-. It receives 5V TTL-compatible falling-edge trigger signals.

Remote Sense:

Remote sensing is a BNC connector, in which the middle part is the SENSE+, and the outer casing is the

SENSE-. It compensates for the voltage drop caused by the power supply and input wire resistance to
