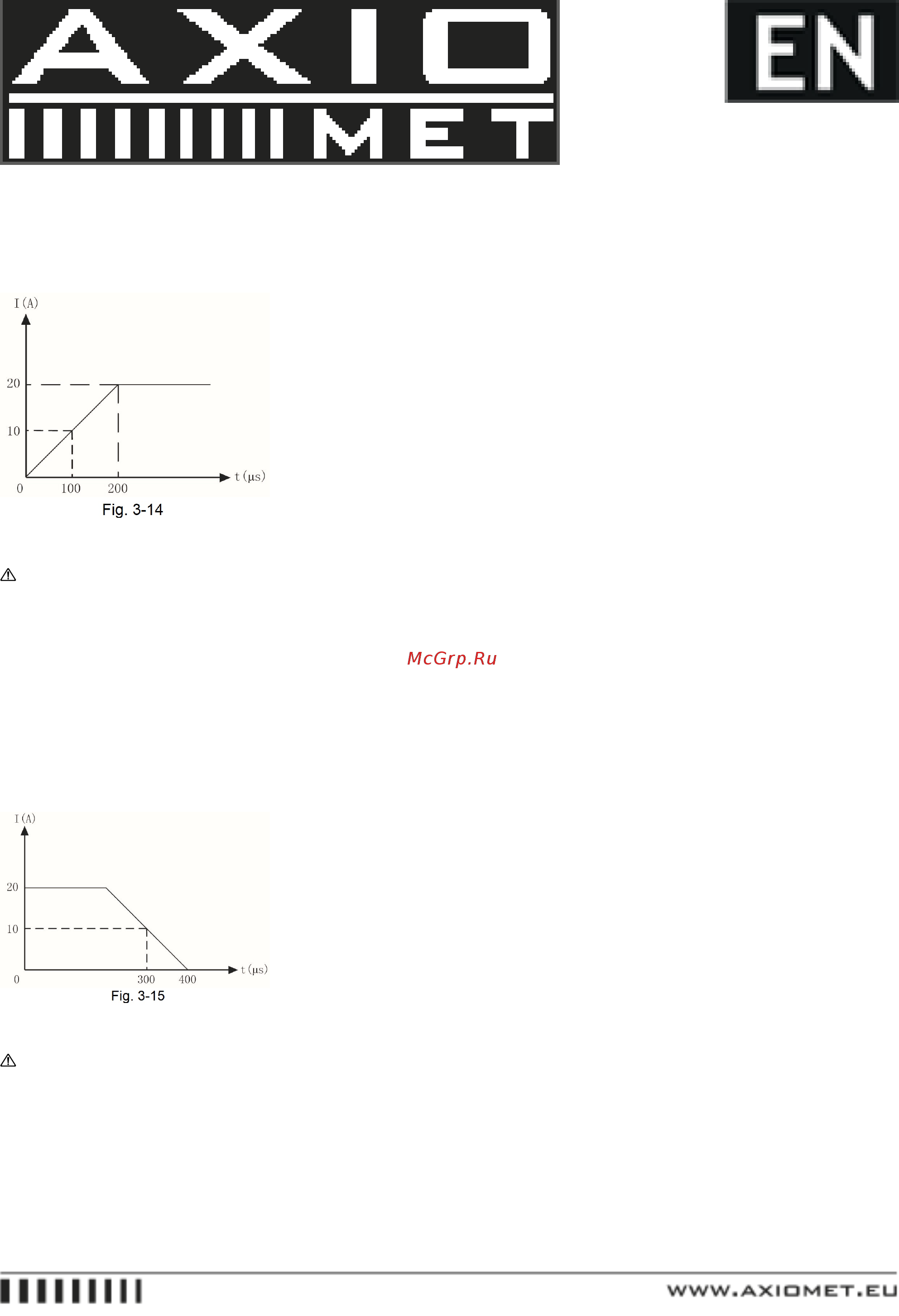

![AXIOMET AX-EL300W [29/72] Measurement function](/views2/1664975/page29/bg1d.png)
Note:
The Current Rise Rate can be effective only in CCH and CCL, and the set level is 10 times larger than the
maximum current rise rate in CCL.
3.9.5. Current Fall Rate
The Current Fall Rate is used to set the current fall rate in CC mode. It can be set in main menu, or via
the remote command (CURRent:FALL:RATE <NRf+>).
If the current fall rate is 0.1A/us, and the current set level is 20A, then the current rise rate is shown as
below when the input is turned off:
Note:
The Curr Fall Rate can be effective only in CCH and CCL mode, and the set level is 10 times larger than
the actual current fall rate in CCL.
3.10. Measurement Function
The electronic load has measurement system with high resolution. The input current level and voltage
level can be measured in real time. The input power level and resistance level can be computed with the
Содержание
