AXIOMET AX-EL300W60A [52/72] Battery discharge operation

For the above operating procedures, the corresponding SCPI commands should be:

LIST:NUMBer 0 ; Recalls the sequence of the number 0

LIST ON ; Activates sequence operation

LIST OFF ; Stops sequence operation

5.9. Battery Discharge Operation

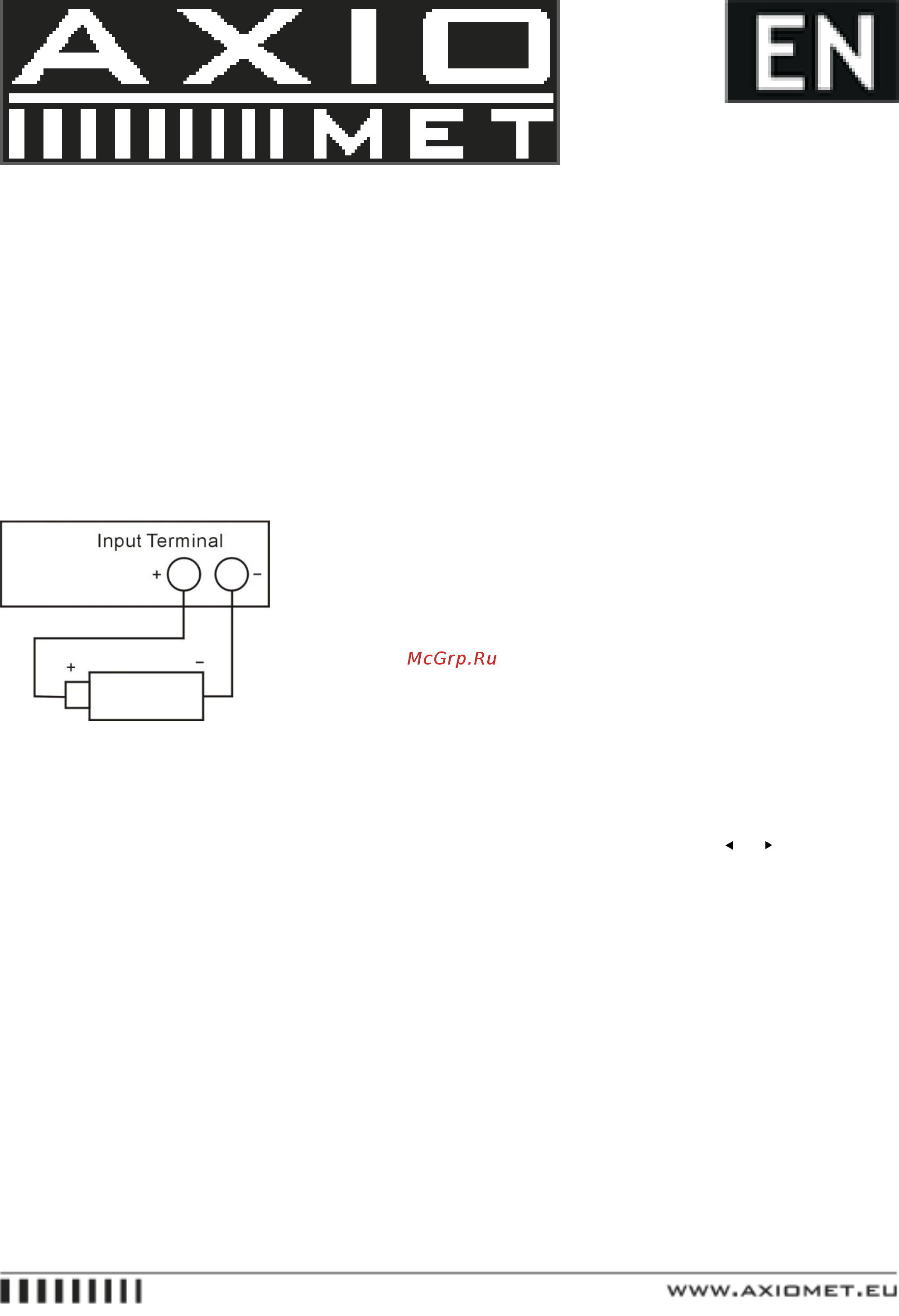

Battery discharge operation diagram:

The operating procedures for battery discharge operation are shown as below:

1) Press “On/Off” key to turn off the load, and connect the tested battery correctly.

2) Press “Battery” key, set the State to On and enter into battery discharge operation screen.

3) Use “↑”, “↓” keys to select parameters. Use Entry keys or the knob together with “ ”, “ ” keys to input

State, termination voltage value, termination current value and discharge current value. Press “Enter”

key to confirm.

4) Press “Cancel” key to exit the battery discharge parameters edit screen.

5) Press “On/Off” key to turn on the load, and start battery discharge operation.

6) Press “On/Off” key to turn off the load, and stop battery discharge operation.

7) Press “Cancel” key to clear the discharged time and discharged capacity of the battery.

8) Press the other function keys or “Cancel” key to exit the battery discharge operation.

Example: Enter into the battery discharge operation; set the termination voltage to 15V, and the discharge

current to 3A; turn on the load, and start the battery discharge operation; turn off the load and stop the

battery discharge operation; clear the discharged time and discharged capacity of the battery; exit the

battery discharge operation.

Procedures /// Operation Descriptions /// Display

1 /// Press “On/Off” key to turn off the load, and connect the tested battery correctly. ///

2 /// Press “Battery” key to enter into battery discharge capacity parameters edit screen. /// STATE 0 Off

3 /// Use Entry keys or the knob to set battery State to On, and press “Enter” key to confirm. /// STATE 1
