AXIOMET AX-EL300W60A [36/72] Connections on the front panel
![AXIOMET AX-EL600W120A [36/72] Connections on the front panel](/views2/1664975/page36/bg24.png)
achieve greater accuracy. The load can detect voltage inputs automatically, so there is no need to modify
the parameter settings or change the hardware wiring when using remote sensing.
4.5. Connections on the Front Panel

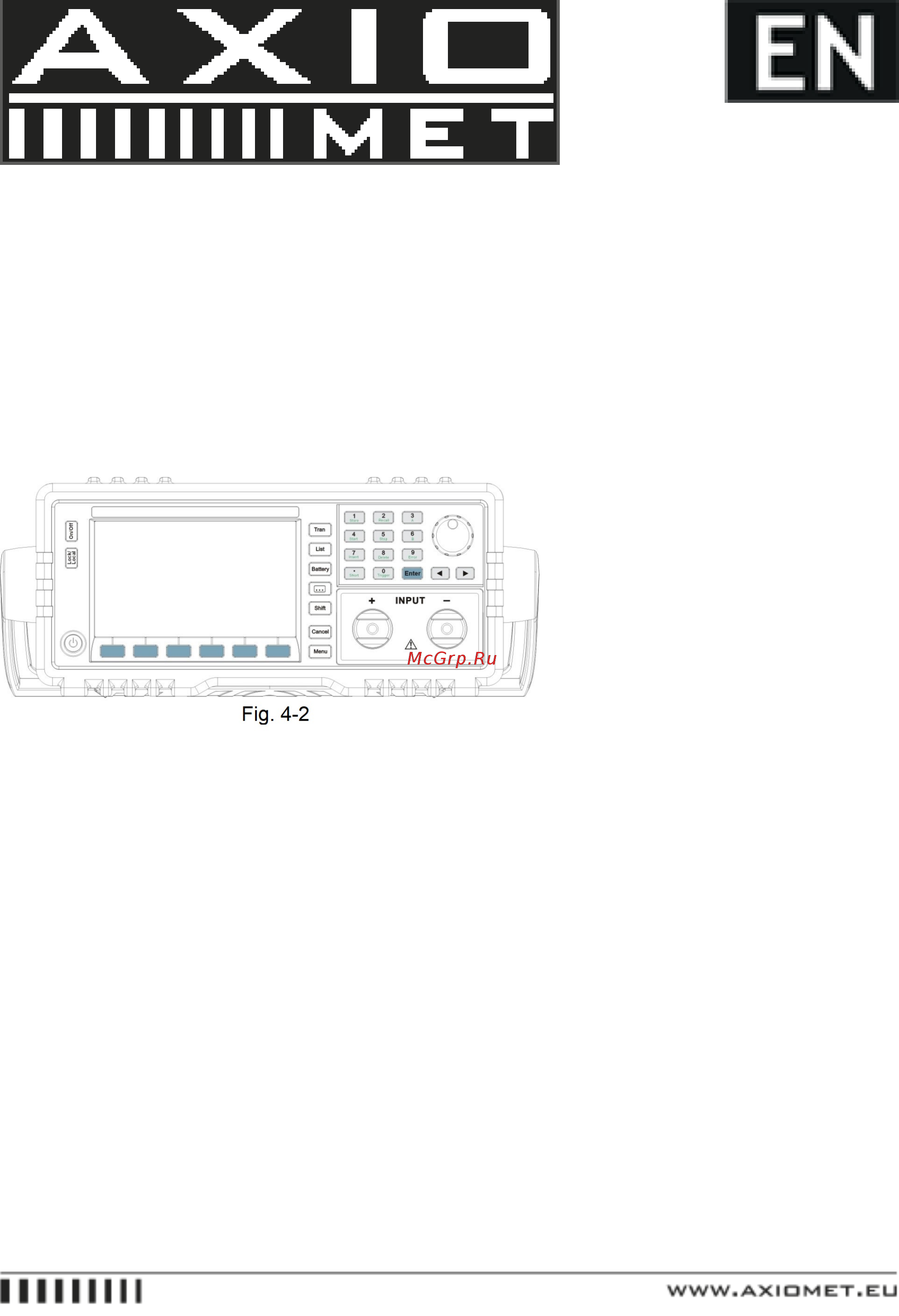

The terminals on the front panel are input terminals (INPUT+, INPUT-). See Fig. 4-2.
Input Connections:
Input connections are made to two binding posts (INPUT+, INPUT-) on the front panel. The maximum
wire diameter is 4mm. In order to enhance the test accuracy, and reduce the test error when executing
large current test, it would be better to use thicker wire.
4.6. Wiring
Sense Connections
When greater accuracy of voltage test is needed, it is necessary to connect Sense input, and the load will
switch to Sense status automatically. The relevant wiring is shown as fig. 4-3.
