- 11 - Hardware Installation
1-3 Installing and Removing Memory
Read the following guidelines before you begin to install the memory:
•
Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
•
Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•
Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
1-3-1 2-Channel Memory Conguration

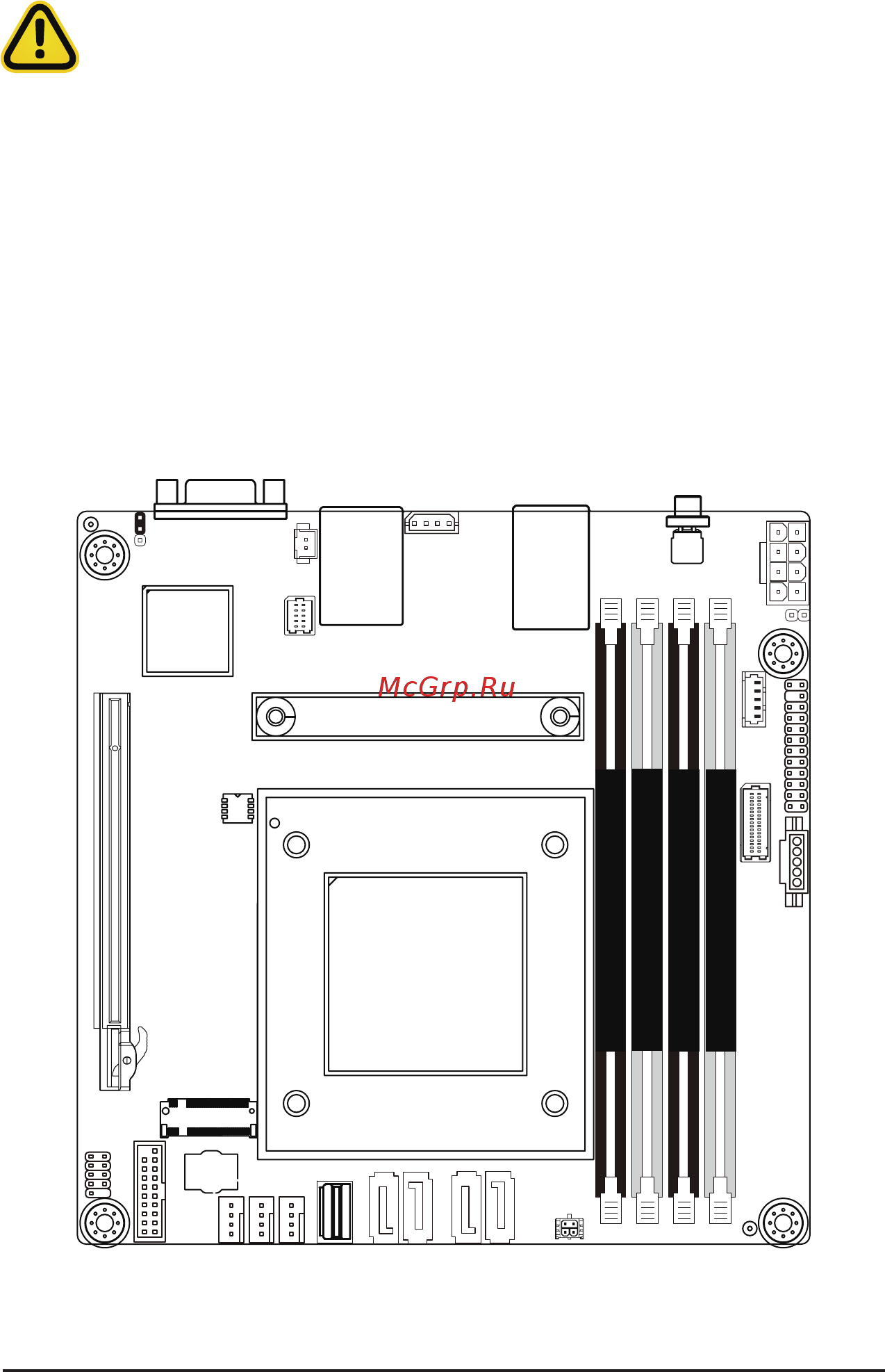

This motherboard provides 4 DDR4 memory sockets and supports 2-Channel Technology. After the memory
isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.
DIMM_P0_A0
DIMM_P0_A1
DIMM_P0_B0
DIMM_P0_B1
CPU
