Gigabyte MJ11-EC0 (rev. 1.2) [19/109] Com1 serial port header

- 19 - Hardware Installation

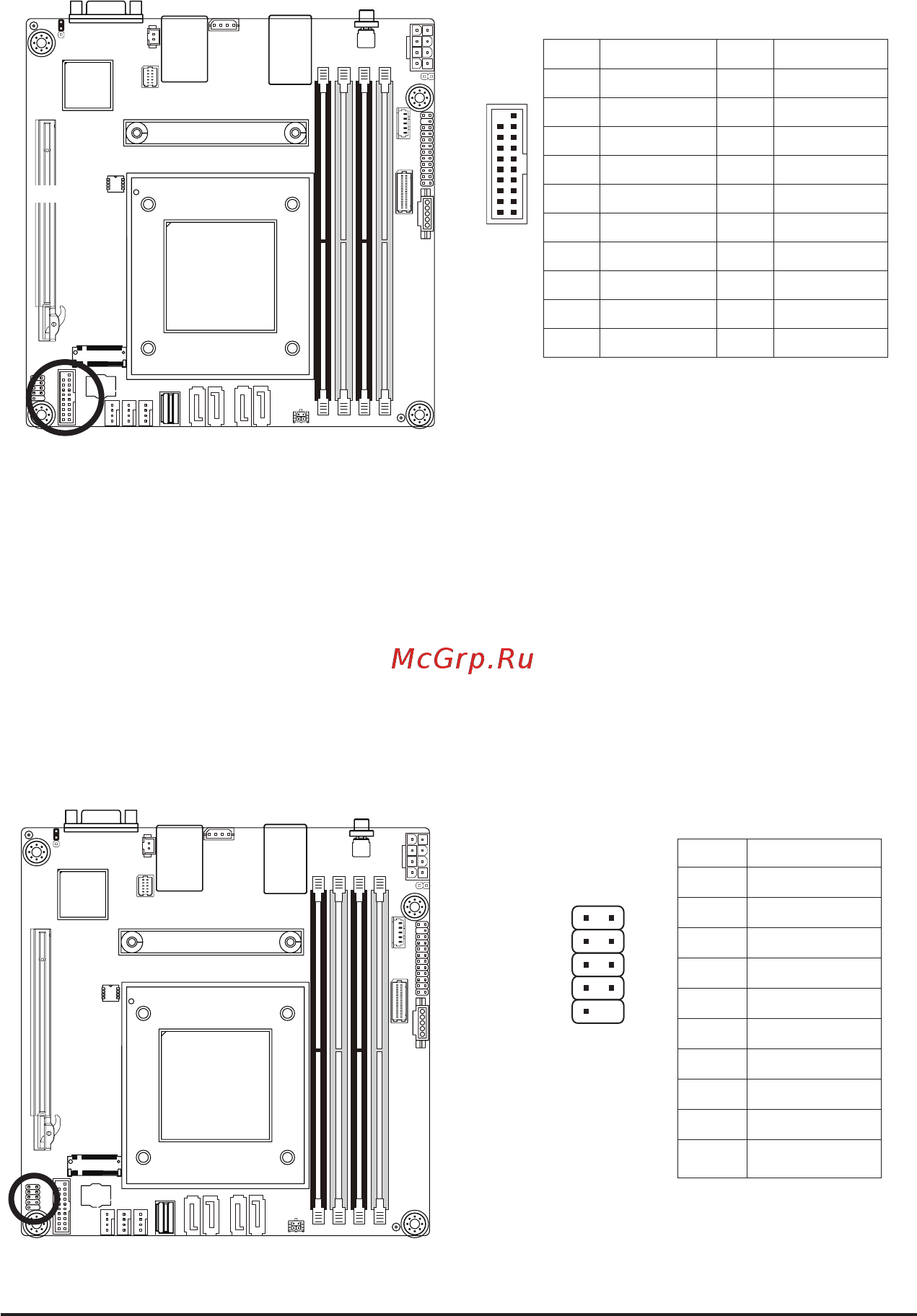

12) F_USB3 (USB 3.1 Connector)

Theconnector/headerconformtoUSB3.1specication.EachUSBconnector/headercanprovidetwoUSB

ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

F_USB2

USB 3.1 Connector

Pin No. Denition Pin No. Denition

1 Power 11 IntA_P2_D+

2 IntA_P1_SSRX- 12 IntA_P2_D-

3 IntA_P1_SSRX+ 13 GND

4 GND 14 IntA_P2_SSTX+

5 IntA_P1_SSTX- 15 IntA_P2_SSTX-

6 IntA_P1_SSTX+ 16 GND

7 GND 17 IntA_P2_SSRX+

8 IntA_P1_D- 18 IntA_P2_SSRX-

9 IntA_P1_D+ 19 Power

10 NC 20 No Pin

13) COM1 (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

PinNo. Denition

1 DCD

2 SIN

3 SOUT

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

10 NC

109
