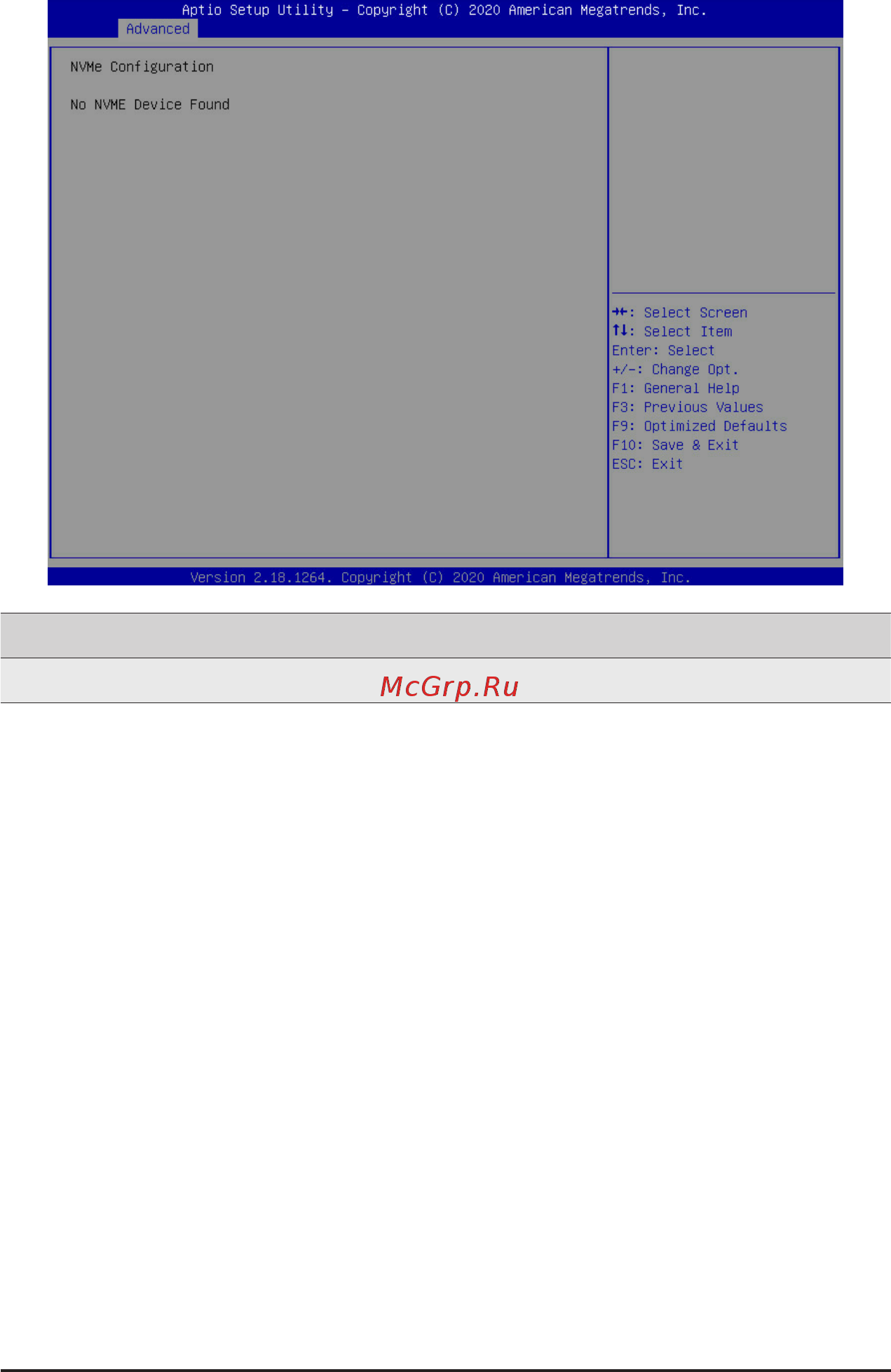

Gigabyte MJ11-EC0 (rev. 1.2) [44/109] 2 9 nvme configuration

BIOS Setup - 44 -

2-2-9 NVMe Conguration

Parameter

Description

NVMeConguration

Displays the NVMe devices connected to the system.
