Gigabyte MJ11-EC0 (rev. 1.2) [20/109] Bp_1 hdd backplane board header

Hardware Installation - 20 -

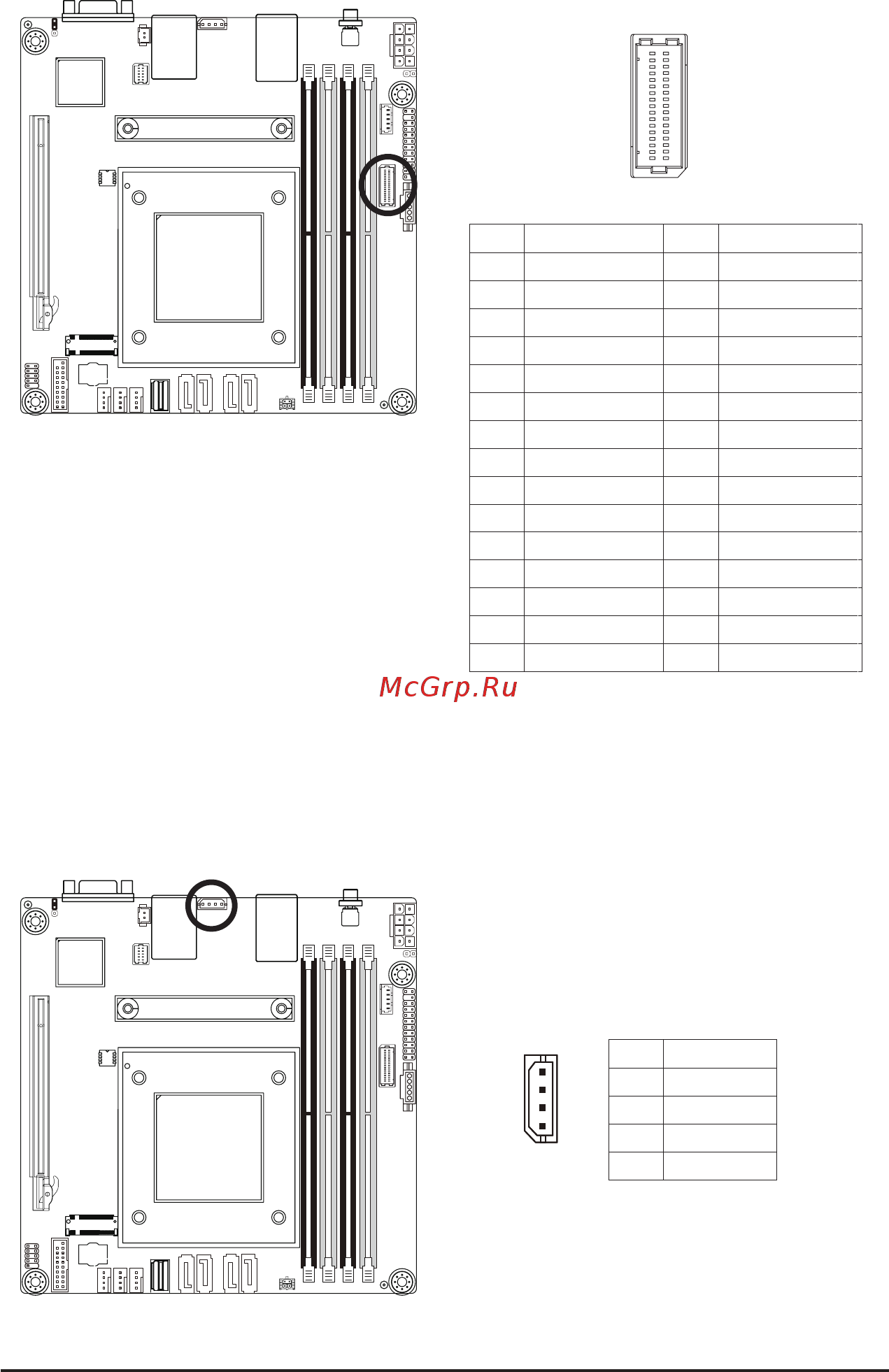

14) BP_1 (HDD Backplane Board Header)

Pin No. Denition Pin No. Denition

1 Reserved 2 BPMI DIN/OUT

3 GND 4 BPMI DOUT/IN

5 BPMI_LOAD 6 GND

7 BPMI_CLK 8 PLD_Program_EN

9 GLED_AMB_N 10 GLED_GRN_N

11 FAN_IRQ_N 12 Reserved

13 BP_SCL 14 GND

15 BP_SDA 16 BP_RST_N

17 SMB_U2_TMP_SCL 18 GND

19 SMB_U2_TMP_SDA 20 I2C_DEV_RST

21 PH_HP_SCL0 22 GND

23 PH_HP_SDA0 24 GND

25 NC 26 GND

27 NC 28 GND

15 P3V3_AUX 30 P3V3_AUX

2 1

15) IPMB (Intelligent Platform Management Bus) Connector

The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for

transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C

devices.

Pin No. Denition

1 Clock

2 GND

3 Data

4 VCC
