Gigabyte MJ11-EC0 (rev. 1.2) [7/109] Block diagram

- 7 -

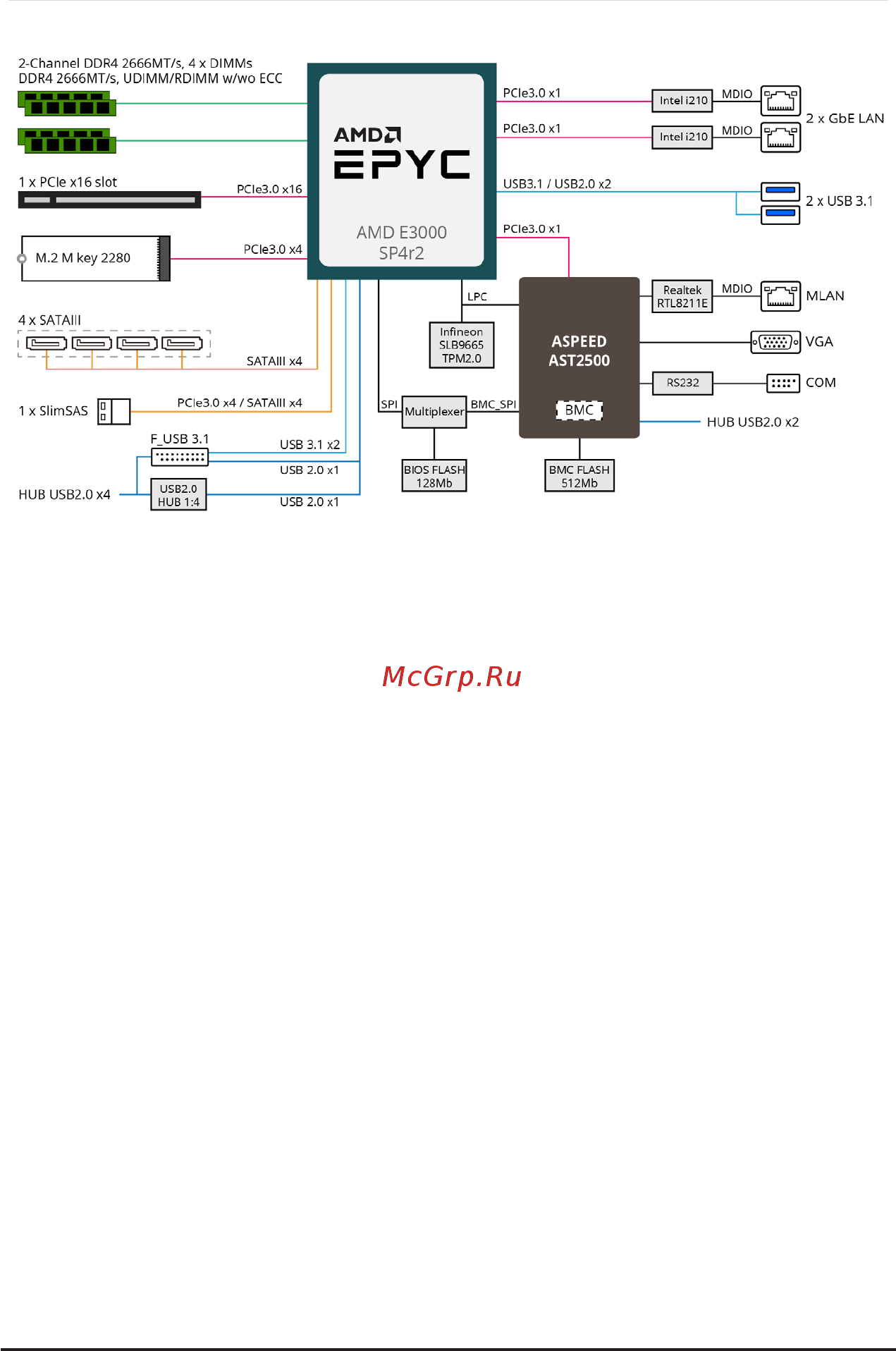

Block Diagram

Содержание

Copyright 2
Disclaimer 2
Documentation classifications 2
For any general sales or marketing enquires you may message gigabyte server directly by email server grp gigabyte com 2
For further technical assistance please contact your gigabyte representative or visit http esupport gigabyte com to create a new support ticket 2
For gigabyte distributors and resellers additional sales marketing materials are available from our reseller portal http reseller b2b gigabyte com 2
For more information 2
Forrelatedproductspecifications thelatestfirmwareandsoftware andotherinformation pleasevisit our website at http www gigabyte com 2
In order to assist in the use of this product gigabyte provides the following types of documentation 2
Information in this manual is protected by copyright laws and is the property of gigabyte changes to the specifications and features in this manual may be made by gigabyte without prior notice no part of this manual may be reproduced copied translated transmitted or published in any form or by any means without gigabyte s prior written permission 2
1 installation precautions 8 3
1 the main menu 26 3
2 advanced menu 29 3
2 productspecifications 9 3
3 chipset setup menu 72 3
3 installing and removing memory 11 3
4 installing and removing the m ssd module 13 3
5 back panel connectors 14 3
6 internal connectors 15 3
7 jumper settings 23 3
Chapter 2 bios setup 4 3
Mj11 ec0 motherboard layout block diagram chapter 1 hardware installation 3
Table of contents 3
10 bios post beep code ami standard 109 4
4 server management menu 75 4
5 security menu 81 4
6 boot menu 85 4
7 save exit menu 87 4
8 abl post codes 88 4
9 agesa post codes 98 4
Mj11 ec0 motherboard layout 5
Block diagram 7
1 installation precautions 8
Chapter 1 hardware installation 8
2 product specifications 9
3 1 2 channel memory configuration 11
3 installing and removing memory 11
Dimm_p0_a0 11
Dimm_p0_a1 11
Dimm_p0_b0 11
Dimm_p0_b1 11
3 2 installing and removing a memory module 12
3 3 dimm population table 12
Before installing a memory module make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module be sure to install ddr4 dimms on to this motherboard 12
Close the plastic clip at both edges of the dimm slots to lock the dimm module 12
Follow these instructions to install a dimm module 12
Hardware installation 12 12
Insert the dimm memory module vertically into the dimm slot and push it down 12
Reverse the installation steps when you want to remove the dimm module 12
Udimm rdimm maximum frequency supported table 12
4 installing and removing the m ssd module 13
100 1000 server management lan port 14
5 back panel connectors 14
Id button with led 14
Power button 14
Rj 45 lan port 1 14
Rj 45 lan port 2 14
Usb 3 ports 14
Vga port 14
3 4 5 6 8 9 10 12 15
6 internal connectors 15
Dimm_p0_a0 15
Dimm_p0_a1 15
Dimm_p0_b0 15
Dimm_p0_b1 15
2 p12v_aux1 dc_in1 2x4 12v power connector 2x2 5vsb pson power connector 16
Hardware installation 16 16
Note attach power cable to 4 pin power connector as illustration 16
P12v_aux1 16
To meet expansion requirements it is recommended that a power supply that can withstand high power consumption be used 500w or greater if a power supply is used that does not provide the required power the result can lead to an unstable or unbootable system 16
With the use of the power connector the power supply can supply enough stable power to all the components onthemotherboard beforeconnectingthepowerconnector firstmakesurethepowersupplyisturnedoff and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation the 12v power connector mainly supplies power to the cpu if the 12v power connector is not connected the computer will not start 16
17 hardware installation 17
4 5 6 sata0 sata1 sata2 sata3 sata 6gb s connectors 17
Serial general purpose input output sgpio is a communication method used between a host bus adapter hba and a main board 17
Sgpio1 sata sgpio connector 17
The sata connectors conform to sata 6gb s standard and are compatible with sata 3gb s standard each sata connector supports a single sata device 17
9 10 cpu0_fan sys_fan1 sys_fan2 cpu fan system fan headers 18
Be sure to connect fan cables to the fan headers to prevent your cpu and system from 18
Hardware installation 18 18
Headers 18
Overheating overheating may result in damage to the cpu or the system may hang 18
Pmbus connector 18
The motherboard has one 4 pin cpu fan header cpu_fan and two 4 pin sys_fan system fan headers most fan headers possess a foolproof insertion design when connecting a fan cable be sure to connect it in the correct orientation the black connector wire is the ground wire the motherboard supports cpu fan speed control which requires the use of a cpu fan with fan speed control design for optimum heat dissipation it is recommended that a system fan be installed inside the chassis 18
The power management bus pmbus is a variant of the system management bus smbus which is targeted at digital management of power supplies 18
Thesefanheadersarenotconfigurationjumperblocks donotplaceajumpercaponthe 18
19 hardware installation 19
Com1 serial port header 19
F_usb3 usb 3 connector 19
Pinno definition 19
The com header can provide one serial port via an optional com port cable for purchasing the optional com port cable please contact the local dealer 19
Theconnector headerconformtousb3 specification eachusbconnector headercanprovidetwousb ports via an optional usb bracket for purchasing the optional usb bracket please contact the local dealer 19
Usb 3 connector 19
Bp_1 hdd backplane board header 20
Hardware installation 20 20
Ipmb intelligent platform management bus connector 20
The intelligent platform management bus communications protocol defines a byte level transport for transferringintelligentplatformmanagementinterfacespecification ipmi messagesbetweenintelligenti2c devices 20
21 hardware installation 21
Connect the power switch reset switch speaker chassis intrusion switch sensor and system status indicator on the chassis to this header according to the pin assignments below note the positive and negative pins before connecting the cables 21
Fp_1 front panel header 21
The front panel design may differ by chassis a front panel module mainly consists of power switch reset switch power led hard drive activity led speaker etc when connecting your chassis front panel module to this header make sure the wire assignments and the pin assignments are matched correctly 21
80h 80 debug port 22
Always turn off your computer and unplug the power cord before replacing the battery replace the battery with an equivalent one danger of explosion if the battery is replaced with an incorrect 22
Bat battery socket 22
Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or 22
Hardware installation 22 22
Thebatteryprovidespowertokeepthevalues suchasbiosconfigurations date andtimeinformation in the cmos when the computer is turned off replace the battery when the battery voltage drops to a low level or the cmos values may not be accurate or may be lost 22
Uncertain about the battery model 22
Used batteries must be handled in accordance with local environmental regulations 22
23 hardware installation 23
7 jumper settings 23
Clear cmos 1 2 normal operation default 2 3 clear cmos data 23
Jumper name jumper setting 23
Bios setup program function keys 24
Chapter 2 bios setup 24
Advanced 25
Chipset 25
Save exit 25
Security 25
Server management 25
1 the main menu 26
2 advanced menu 29
2 1 trusted computing 30
2 2 psp firmware versions 32
2 3 ast2500 super io configuration 33
2 3 1 serial port 1 configuration 34
2 4 s5 rtc wake settings 35
2 5 serial port console redirection 36
2 6 cpu configuration 39
2 7 pci subsystem settings 40
2 8 usb configuration 42
2 9 nvme configuration 44
2 10 sata configuration 45
2 11 amd cbs 46
2 11 1 zen common options 47
2 11 2 df common options 49
2 11 3 umc common options 51
2 11 3 1 ddr4 common options 52
2 11 3 2 dram memory mapping 54
2 11 3 3 memory mbist 55
2 11 4 nbio common options 56
2 11 5 fch common options 58
2 11 6 ntb common options 61
2 12 network stack configuration 62
2 13 iscsi configuration 63
2 14 t1s auth configuration 64
2 15 intel r i210 gigabit network connection 65
2 16 vlan configuration 67
2 17 mac ipv4 network configuration 69
2 18 mac ipv6 network configuration 70
3 chipset setup menu 72
3 1 north bridge 73
3 2 error management 74
4 server management menu 75
4 1 system event log 77
4 2 view fru information 78
4 3 bmc network configuration 79
4 4 ipv6 bmc network configuration 80
5 security menu 81
5 1 secure boot 82
6 boot menu 85
7 save exit menu 87
8 1 startprocessortestpoints 88
8 2 memory test points 88
8 3 pmu test points 88
8 abl post codes 88
8 4 original post code 89
8 5 cpu test points 90
8 6 topology test points 90
8 7 extended memory test point 90
8 8 gnb earlier init 91
8 10 abl0 test points 94
8 11 abl5 test points 94
8 9 pmu test points 94
9 1 universal post code 98
9 2 0xa1xx for cz only memory postcodes 98
9 agesa post codes 98
9 3 s3 interface post code 101
9 4 pmu post code 101
9 5 0xa5xx assigned for agesa psp module 101
9 6 0xa9xx 0xaaxx assigned for agesa nbio module 104
9 7 0xacxx assigned for agesa ccx module 106
9 8 0xadxx assigned for agesa df module 107
9 9 0xafxx assigned for agesa fch module 107
10 1 pei beep codes 109
10 2 dxe beep codes 109
10 bios post beep code ami standard 109
