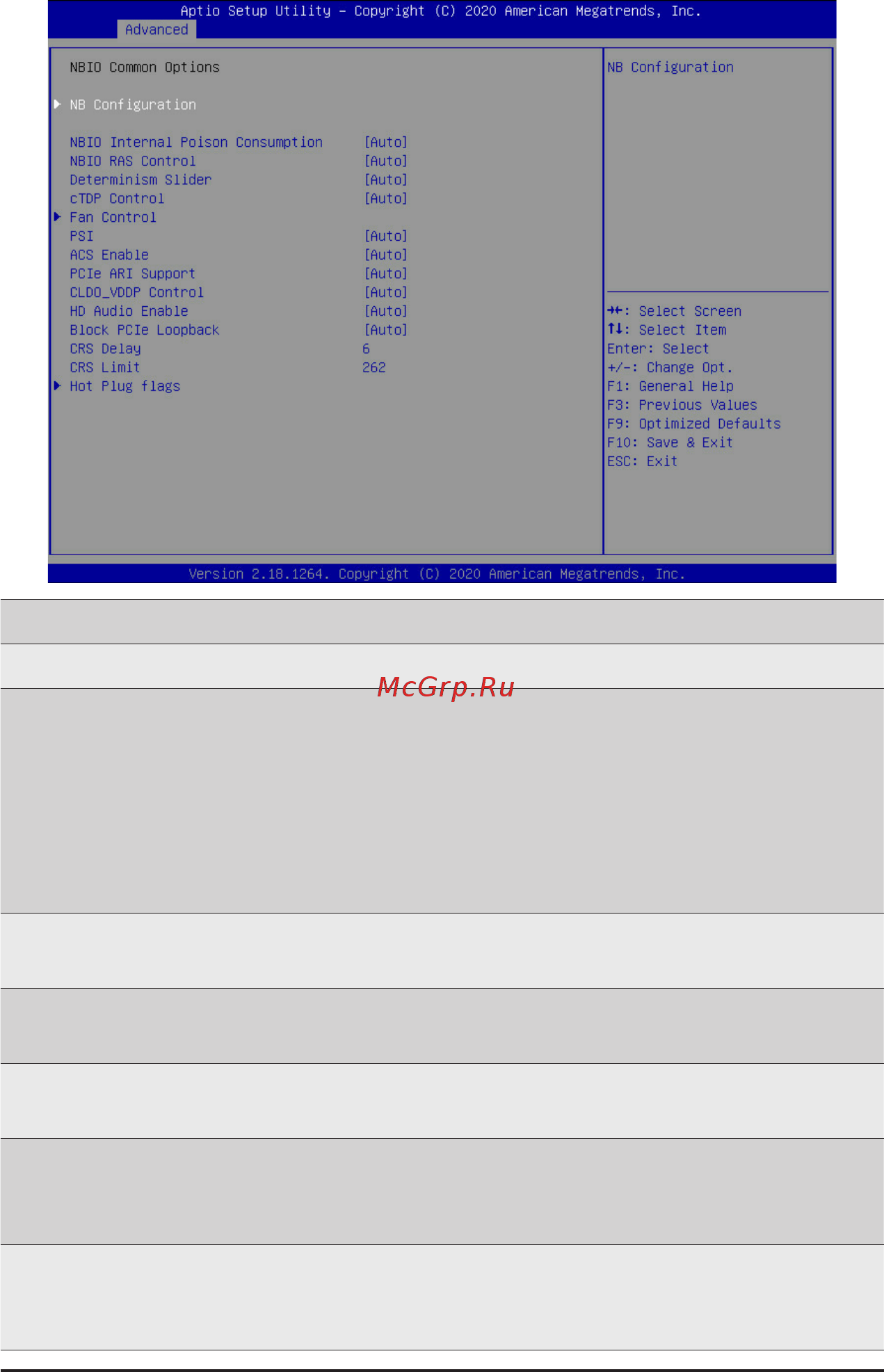

BIOS Setup - 56 -
2-2-11-4 NBIO Common Options
Parameter
Description
NBIO Common Options
NBConguration
Press[Enter]forcongurationofadvanceditems.
IOMMU
– Enable/Disable the IOMMU function.
– Options available: Auto, Enabled, Disabled. Default setting is Auto.
Concurrent Training
– Enable/Disable Concurrent Training.
– Options available: Auto, False, True. Default setting is Auto.
NBIO Internal Poison
Consumption
Enable/Disable NBIO Internal Poison Consumption.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
NBIO RAS Control
Enable/Disable NBIO RAS Control.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Determinism Slider
Speciesthesystemdeterminism.
Options available: Auto, Power, Performance. Default setting is Auto.
cTDP Control
SelectsusethefusedTDPorsetcustomizedTDP.**TDPisusedtodenethe
RC thermal model only**
Options available: Auto, Manual. Default setting is Auto.
Fan Control
Press[Enter]forcongurationofadvanceditems.
Fan Control
– Options available: Auto, Manual. Default setting is Auto.
